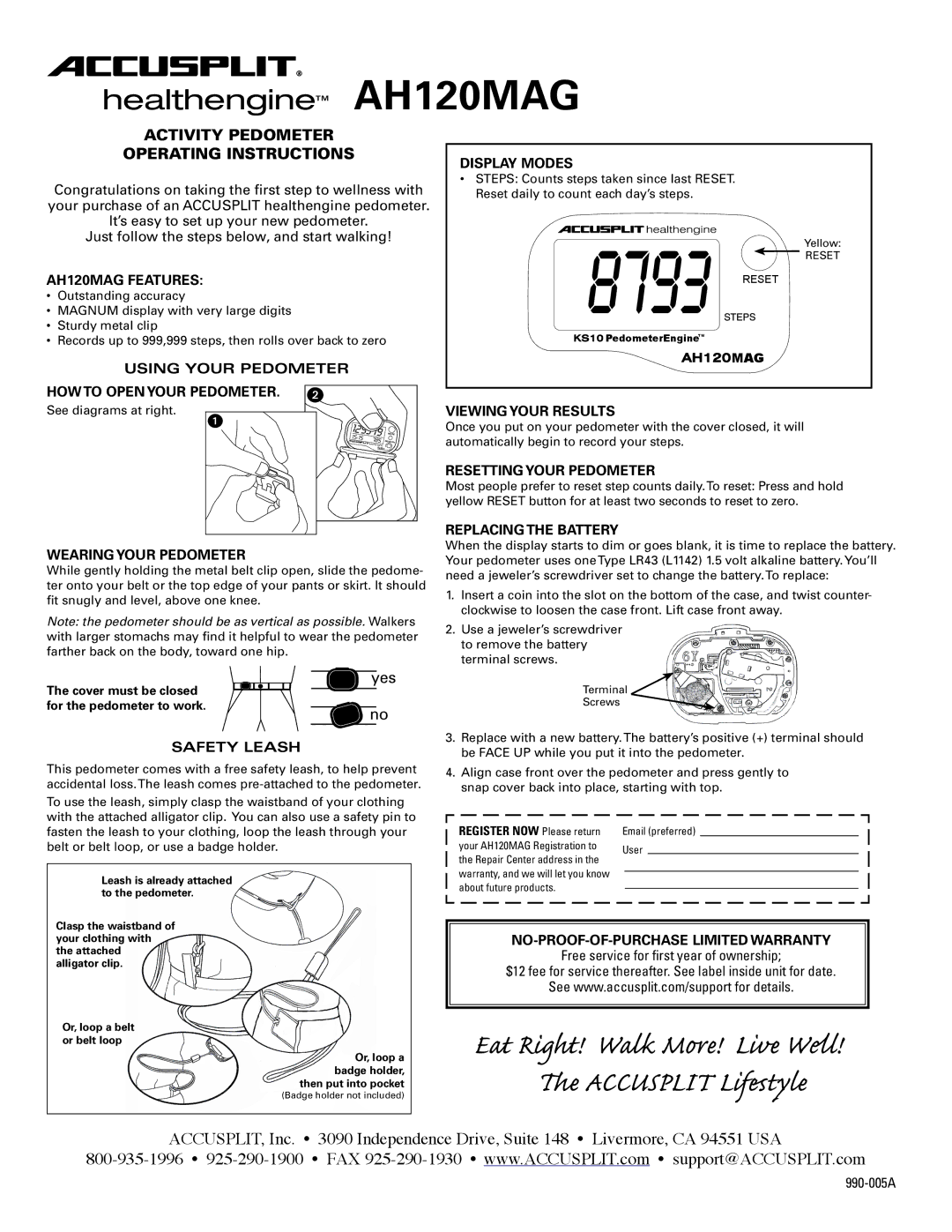

ACCUSPLIT® healthengineAH120MAG

ACTIVITY PEDOMETER

OPERATING INSTRUCTIONS

Congratulations on taking the first step to wellness with your purchase of an ACCUSPLIT healthengine pedometer.

It’s easy to set up your new pedometer.

Just follow the steps below, and start walking!

AH120MAG FEATURES:

Outstanding accuracy

MAGNUM display with very large digits

Sturdy metal clip

Records up to 999,999 steps, then rolls over back to zero

USING YOUR PEDOMETER

DISPLAY MODES

STEPS: Counts steps taken since last RESET. Reset daily to count each day’s steps.

8793 Yellow:

RESET

RESET

PedometerEngineTM

MAG

HOW TO OPEN YOUR PEDOMETER.

See diagrams at right.

125379

MODE

15:15

78

MEMORY

ACCUSPLIT

healthengine







RESET



VIEWING YOUR RESULTS

Once you put on your pedometer with the cover closed, it will automatically begin to record your steps.

RESETTING YOUR PEDOMETER

Most people prefer to reset step counts daily.To reset: Press and hold yellow RESET button for at least two seconds to reset to zero.

REPLACING THE BATTERY

WEARING YOUR PEDOMETER

While gently holding the metal belt clip open, slide the pedome- ter onto your belt or the top edge of your pants or skirt. It should fit snugly and level, above one knee.

Note: the pedometer should be as vertical as possible. Walkers with larger stomachs may find it helpful to wear the pedometer farther back on the body, toward one hip.

When the display starts to dim or goes blank, it is time to replace the battery. Your pedometer uses oneType LR43 (L1142) 1.5 volt alkaline battery.You’ll need a jeweler’s screwdriver set to change the battery.To replace:

1.Insert a coin into the slot on the bottom of the case, and twist counter- clockwise to loosen the case front. Lift case front away.

2.Use a jeweler’s screwdriver to remove the battery terminal screws.

The cover must be closed

yes

Terminal

for the pedometer to work.

no



SAFETY LEASH

Screws

3.Replace with a new battery.The battery’s positive (+) terminal should be FACE UP while you put it into the pedometer.

This pedometer comes with a free safety leash, to help prevent accidental loss.The leash comes pre-attached to the pedometer.

To use the leash, simply clasp the waistband of your clothing with the attached alligator clip. You can also use a safety pin to fasten the leash to your clothing, loop the leash through your belt or belt loop, or use a badge holder.

Leash is already attached to the pedometer.

Clasp the waistband of your clothing with the attached alligator clip.

Or, loop a belt or belt loop

Or, loop a badge holder, then put into pocket

(Badge holder not included)

4.Align case front over the pedometer and press gently to snap cover back into place, starting with top.

REGISTER NOW Please return

Email (preferred)

your AH120MAG Registration to

User





the Repair Center address in the









warranty, and we will let you know

















about future products.

















NO-PROOF-OF-PURCHASE LIMITED WARRANTY

Free service for first year of ownership;

$12 fee for service thereafter. See label inside unit for date.

See www.accusplit.com/support for details.

ACCUSPLIT, Inc. • 3090 Independence Drive, Suite 148 • Livermore, CA 94551 USA

800-935-1996925-290-1900 • FAX 925-290-1930 • www.ACCUSPLIT.com • support@ACCUSPLIT.com

990-005A
