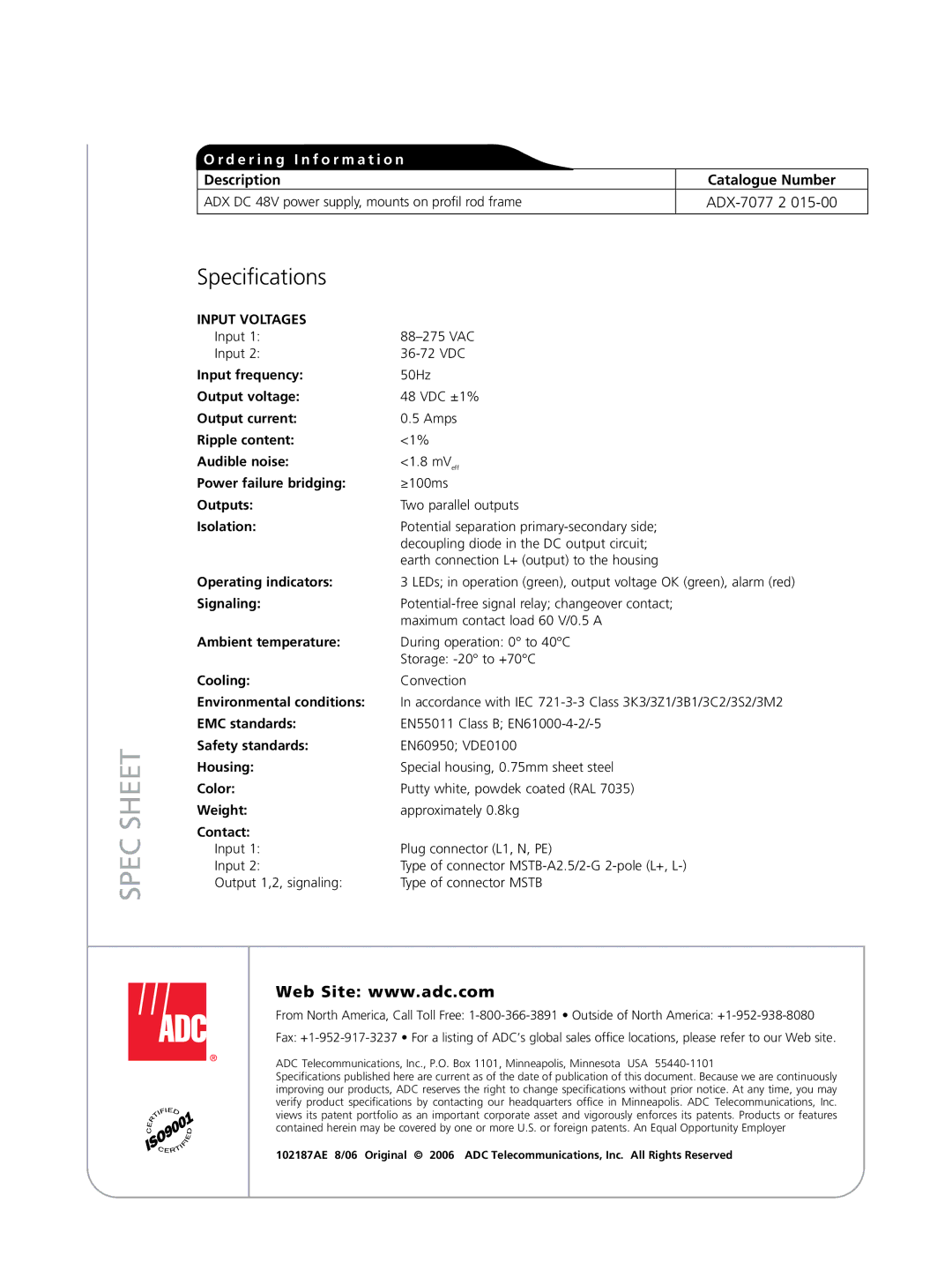

Spec Sheet
O r d e r i n g I n f o r m a t i o n
Description | Catalogue Number |
ADX DC 48V power supply, mounts on profil rod frame |
|
|
|
Specifications
Input voltages |
|
Input 1: | |
Input 2: | |
Input frequency: | 50Hz |
Output voltage: | 48 VDC ±1% |
Output current: | 0.5 Amps |
Ripple content: | <1% |
Audible noise: | <1.8 mVeff |
Power failure bridging: | ≥100ms |
Outputs: | Two parallel outputs |
Isolation: | Potential separation |
| decoupling diode in the DC output circuit; |
| earth connection L+ (output) to the housing |
Operating indicators: | 3 LEDs; in operation (green), output voltage OK (green), alarm (red) |
Signaling: | |
| maximum contact load 60 V/0.5 A |
Ambient temperature: | During operation: 0° to 40°C |
| Storage: |
Cooling: | Convection |
Environmental conditions: | In accordance with IEC |
EMC standards: | EN55011 Class B; |
Safety standards: | EN60950; VDE0100 |
Housing: | Special housing, 0.75mm sheet steel |
Color: | Putty white, powdek coated (RAL 7035) |
Weight: | approximately 0.8kg |
Contact: |
|
Input 1: | Plug connector (L1, N, PE) |
Input 2: | Type of connector |
Output 1,2, signaling: | Type of connector MSTB |
Web Site: www.adc.com
From North America, Call Toll Free:
Fax:
ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA
Specifications published here are current as of the date of publication of this document. Because we are continuously improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc. views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer
102187AE 8/06 Original © 2006 ADC Telecommunications, Inc. All Rights Reserved
