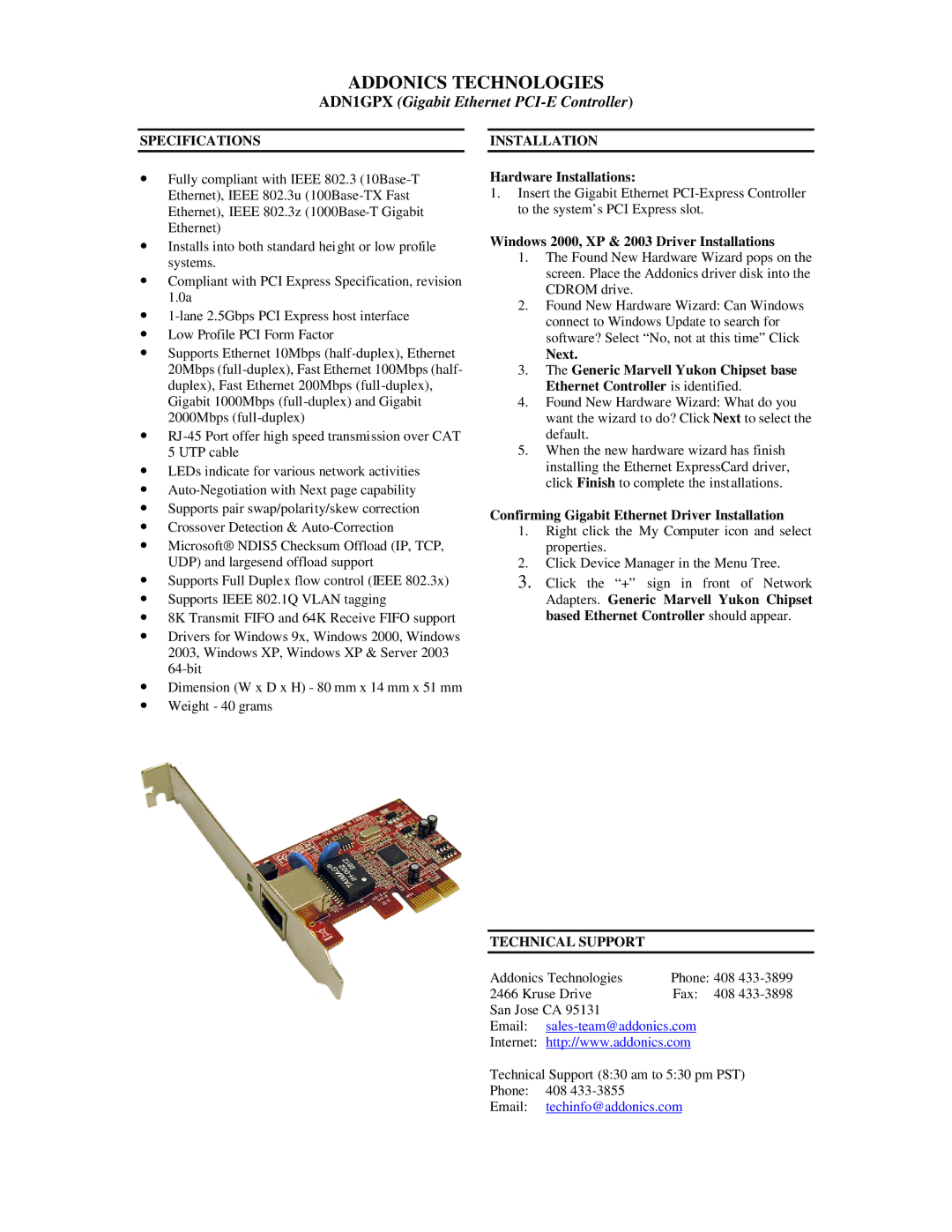

ADDONICS TECHNOLOGIES

ADN1GPX (Gigabit Ethernet PCI-E Controller)

SPECIFICATIONS

∙Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)

∙Installs into both standard height or low profile systems.

∙Compliant with PCI Express Specification, revision 1.0a

∙1-lane 2.5Gbps PCI Express host interface

∙Low Profile PCI Form Factor

∙Supports Ethernet 10Mbps (half-duplex), Ethernet 20Mbps (full-duplex), Fast Ethernet 100Mbps (half- duplex), Fast Ethernet 200Mbps (full-duplex), Gigabit 1000Mbps (full-duplex) and Gigabit 2000Mbps (full-duplex)

∙RJ-45 Port offer high speed transmission over CAT 5 UTP cable

∙LEDs indicate for various network activities

∙Auto-Negotiation with Next page capability

∙Supports pair swap/polarity/skew correction

∙Crossover Detection & Auto-Correction

∙Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support

∙Supports Full Duplex flow control (IEEE 802.3x)

∙Supports IEEE 802.1Q VLAN tagging

∙8K Transmit FIFO and 64K Receive FIFO support

∙Drivers for Windows 9x, Windows 2000, Windows 2003, Windows XP, Windows XP & Server 2003 64-bit

INSTALLATION

Hardware Installations:

1.Insert the Gigabit Ethernet PCI-Express Controller to the system’s PCI Express slot.

Windows 2000, XP & 2003 Driver Installations

1.The Found New Hardware Wizard pops on the screen. Place the Addonics driver disk into the CDROM drive.

2.Found New Hardware Wizard: Can Windows connect to Windows Update to search for software? Select “No, not at this time” Click

Next.

3.The Generic Marvell Yukon Chipset base Ethernet Controller is identified.

4.Found New Hardware Wizard: What do you want the wizard to do? Click Next to select the default.

5.When the new hardware wizard has finish installing the Ethernet ExpressCard driver, click Finish to complete the installations.

Confirming Gigabit Ethernet Driver Installation

1.Right click the My Computer icon and select properties.

2.Click Device Manager in the Menu Tree.

3.Click the “+” sign in front of Network Adapters. Generic Marvell Yukon Chipset based Ethernet Controller should appear.

∙Dimension (W x D x H) - 80 mm x 14 mm x 51 mm

∙Weight - 40 grams

TECHNICAL SUPPORT

Addonics Technologies		Phone: 408 433-3899
2466 Kruse Drive		Fax: 408 433-3898
San Jose CA 95131
Email:	sales-team@addonics.com
Internet:	http://www.addonics.com

Technical Support (8:30 am to 5:30 pm PST)

Phone: 408 433-3855

Email: techinfo@addonics.com
