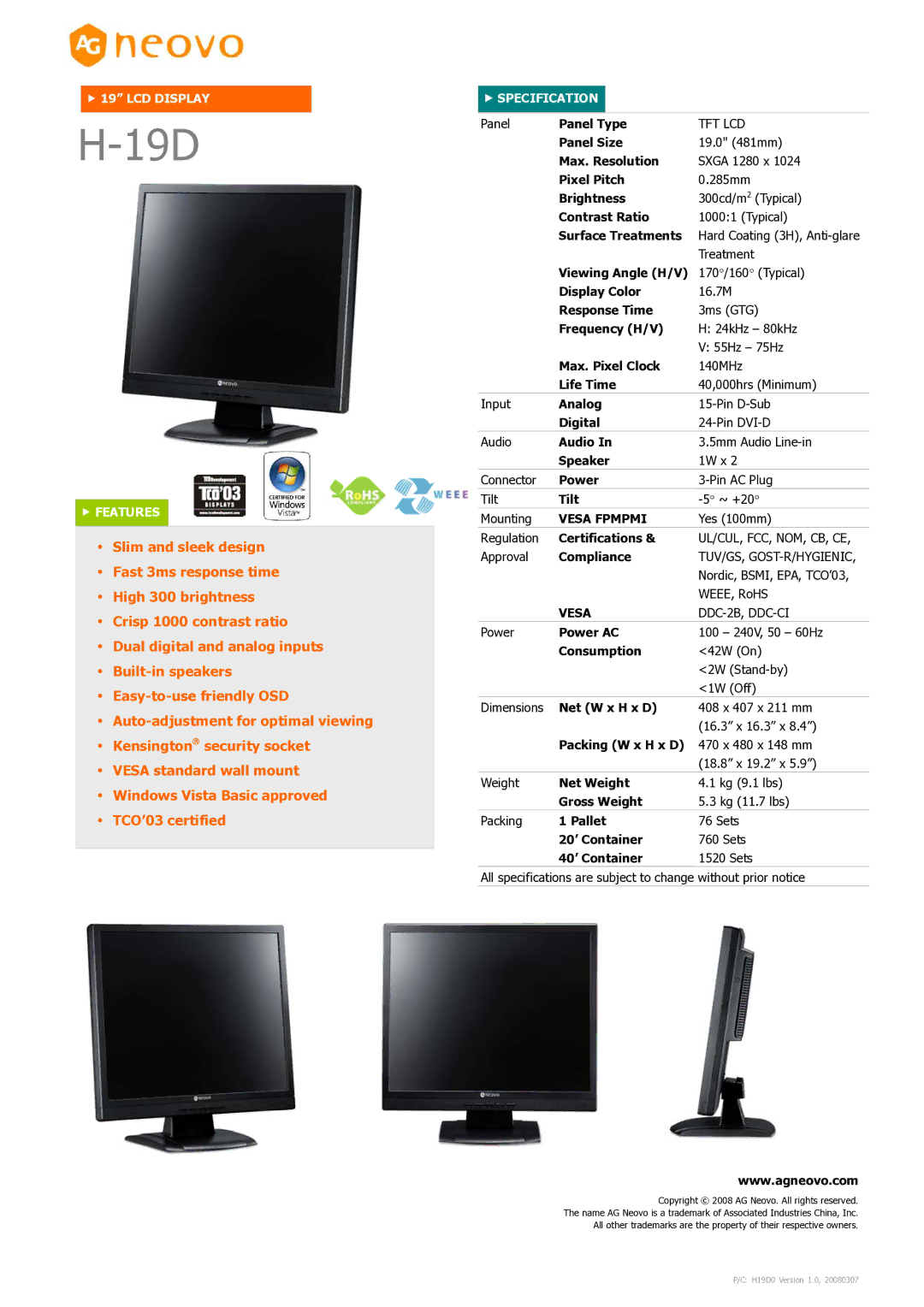

AG Neovo dimensions H-19D, Slim and sleek design Fast 3ms response time High 300 brightness

f19” LCD DISPLAY

H-19D

f FEATURES

Slim and sleek design

Fast 3ms response time

High 300 brightness

Crisp 1000 contrast ratio

Dual digital and analog inputs

Built-in speakers

Easy-to-use friendly OSD

Auto-adjustment for optimal viewing

Kensington security socket

VESA standard wall mount

Windows Vista Basic approved

TCO’03 certified

fSPECIFICATION

Panel	Panel Type	TFT LCD
	Panel Size	19.0" (481mm)
	Max. Resolution	SXGA 1280 x 1024
	Pixel Pitch	0.285mm
	Brightness	300cd/m2 (Typical)
	Contrast Ratio	1000:1 (Typical)
	Surface Treatments	Hard Coating (3H), Anti-glare
		Treatment
	Viewing Angle (H/V)	170°/160° (Typical)
	Display Color	16.7M
	Response Time	3ms (GTG)
	Frequency (H/V)	H: 24kHz – 80kHz
		V: 55Hz – 75Hz
	Max. Pixel Clock	140MHz
	Life Time	40,000hrs (Minimum)
Input	Analog	15-Pin D-Sub
	Digital	24-Pin DVI-D
Audio	Audio In	3.5mm Audio Line-in
	Speaker	1W x 2
Connector	Power	3-Pin AC Plug
Tilt	Tilt	-5°~ +20°
Mounting	VESA FPMPMI	Yes (100mm)
Regulation	Certifications &	UL/CUL, FCC, NOM, CB, CE,
Approval	Compliance	TUV/GS, GOST-R/HYGIENIC,
		Nordic, BSMI, EPA, TCO’03,
		WEEE, RoHS
	VESA	DDC-2B, DDC-CI
Power	Power AC	100 – 240V, 50 – 60Hz
	Consumption	<42W (On)
		<2W (Stand-by)
		<1W (Off)
Dimensions	Net (W x H x D)	408 x 407 x 211 mm
		(16.3” x 16.3” x 8.4”)
	Packing (W x H x D)	470 x 480 x 148 mm
		(18.8” x 19.2” x 5.9”)
Weight	Net Weight	4.1 kg (9.1 lbs)
	Gross Weight	5.3 kg (11.7 lbs)
Packing	1 Pallet	76 Sets
	20’ Container	760 Sets
	40’ Container	1520 Sets

All specifications are subject to change without prior notice

www.agneovo.com

Copyright © 2008 AG Neovo. All rights reserved. The name AG Neovo is a trademark of Associated Industries China, Inc.

All other trademarks are the property of their respective owners.

P/C: H19D0 Version 1.0, 20080307
