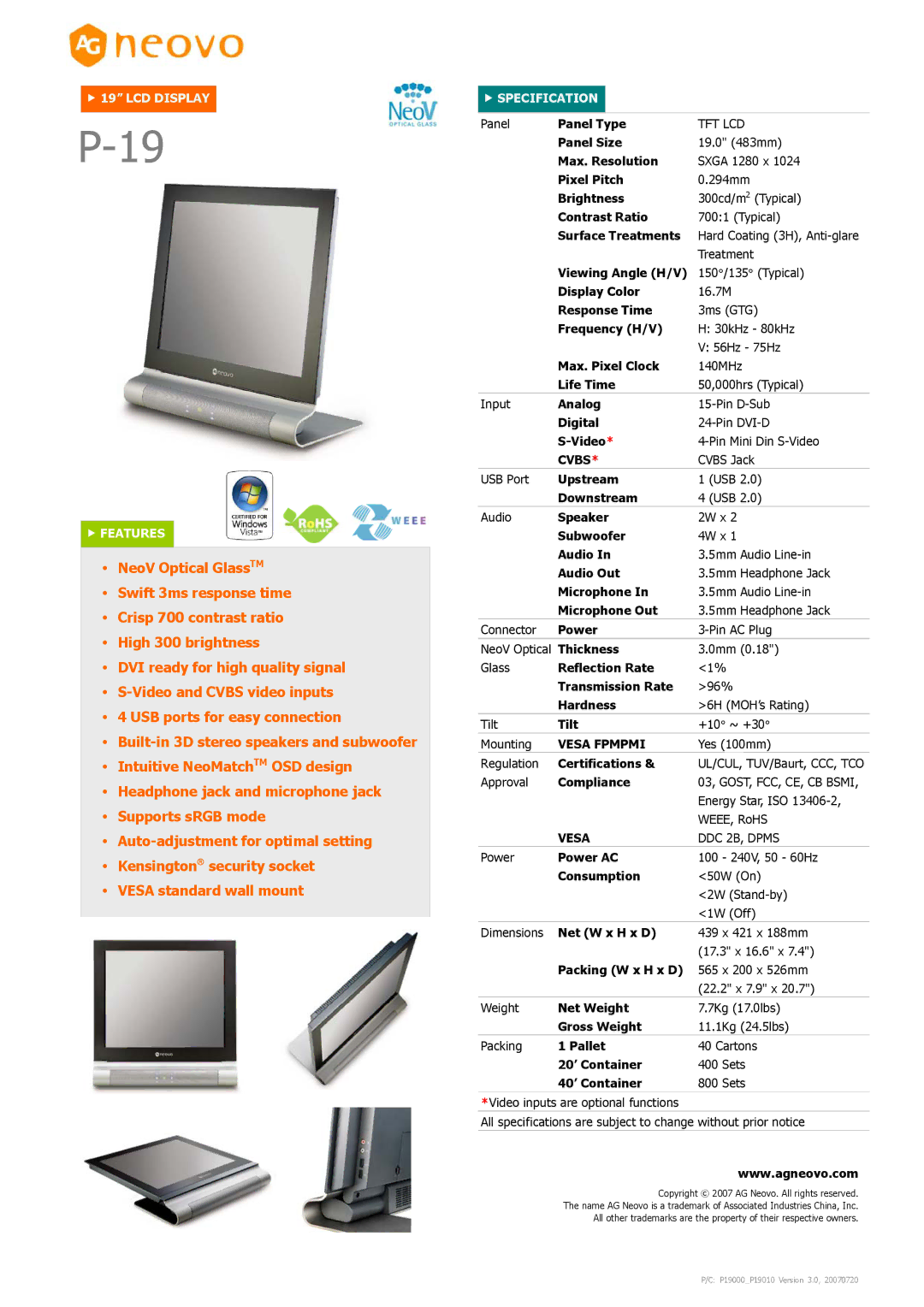

f19” LCD DISPLAY

P-19

f FEATURES

NeoV Optical GlassTM Swift 3ms response time Crisp 700 contrast ratio High 300 brightness

DVI ready for high quality signal S-Video and CVBS video inputs

4 USB ports for easy connection Built-in 3D stereo speakers and subwoofer Intuitive NeoMatchTM OSD design Headphone jack and microphone jack Supports sRGB mode Auto-adjustment for optimal setting Kensingtonsecurity socket

VESA standard wall mount

fSPECIFICATION

Panel

Panel Type

TFT LCD



Panel Size

19.0" (483mm)



Max. Resolution

SXGA 1280 x 1024



Pixel Pitch

0.294mm



Brightness

300cd/m2 (Typical)



Contrast Ratio

700:1 (Typical)



Surface Treatments

Hard Coating (3H), Anti-glare





Treatment



Viewing Angle (H/V)

150°/135° (Typical)



Display Color

16.7M



Response Time

3ms (GTG)



Frequency (H/V)

H: 30kHz - 80kHz





V: 56Hz - 75Hz



Max. Pixel Clock

140MHz



Life Time

50,000hrs (Typical)

Input

Analog

15-Pin D-Sub



Digital

24-Pin DVI-D



S-Video*

4-Pin Mini Din S-Video



CVBS*

CVBS Jack

USB Port

Upstream

1 (USB 2.0)



Downstream

4 (USB 2.0)

Audio

Speaker

2W x 2



Subwoofer

4W x 1



Audio In

3.5mm Audio Line-in



Audio Out

3.5mm Headphone Jack



Microphone In

3.5mm Audio Line-in



Microphone Out

3.5mm Headphone Jack

Connector

Power

3-Pin AC Plug

NeoV Optical

Thickness

3.0mm (0.18")

Glass

Reflection Rate

<1%



Transmission Rate

>96%



Hardness

>6H (MOH’s Rating)

Tilt

Tilt

+10° ~ +30°

Mounting

VESA FPMPMI

Yes (100mm)

Regulation

Certifications &

UL/CUL, TUV/Baurt, CCC, TCO

Approval

Compliance

03, GOST, FCC, CE, CB BSMI,





Energy Star, ISO 13406-2,





WEEE, RoHS



VESA

DDC 2B, DPMS

Power

Power AC

100 - 240V, 50 - 60Hz



Consumption

<50W (On)





<2W (Stand-by)





<1W (Off)

Dimensions

Net (W x H x D)

439 x 421 x 188mm





(17.3" x 16.6" x 7.4")



Packing (W x H x D)

565 x 200 x 526mm





(22.2" x 7.9" x 20.7")

Weight

Net Weight

7.7Kg (17.0lbs)



Gross Weight

11.1Kg (24.5lbs)

Packing

1 Pallet

40 Cartons



20’ Container

400 Sets



40’ Container

800 Sets

*Video inputs are optional functions

All specifications are subject to change without prior notice

www.agneovo.com

Copyright © 2007 AG Neovo. All rights reserved. The name AG Neovo is a trademark of Associated Industries China, Inc.

All other trademarks are the property of their respective owners.

P/C: P19000_P19010 Version 3.0, 20070720
