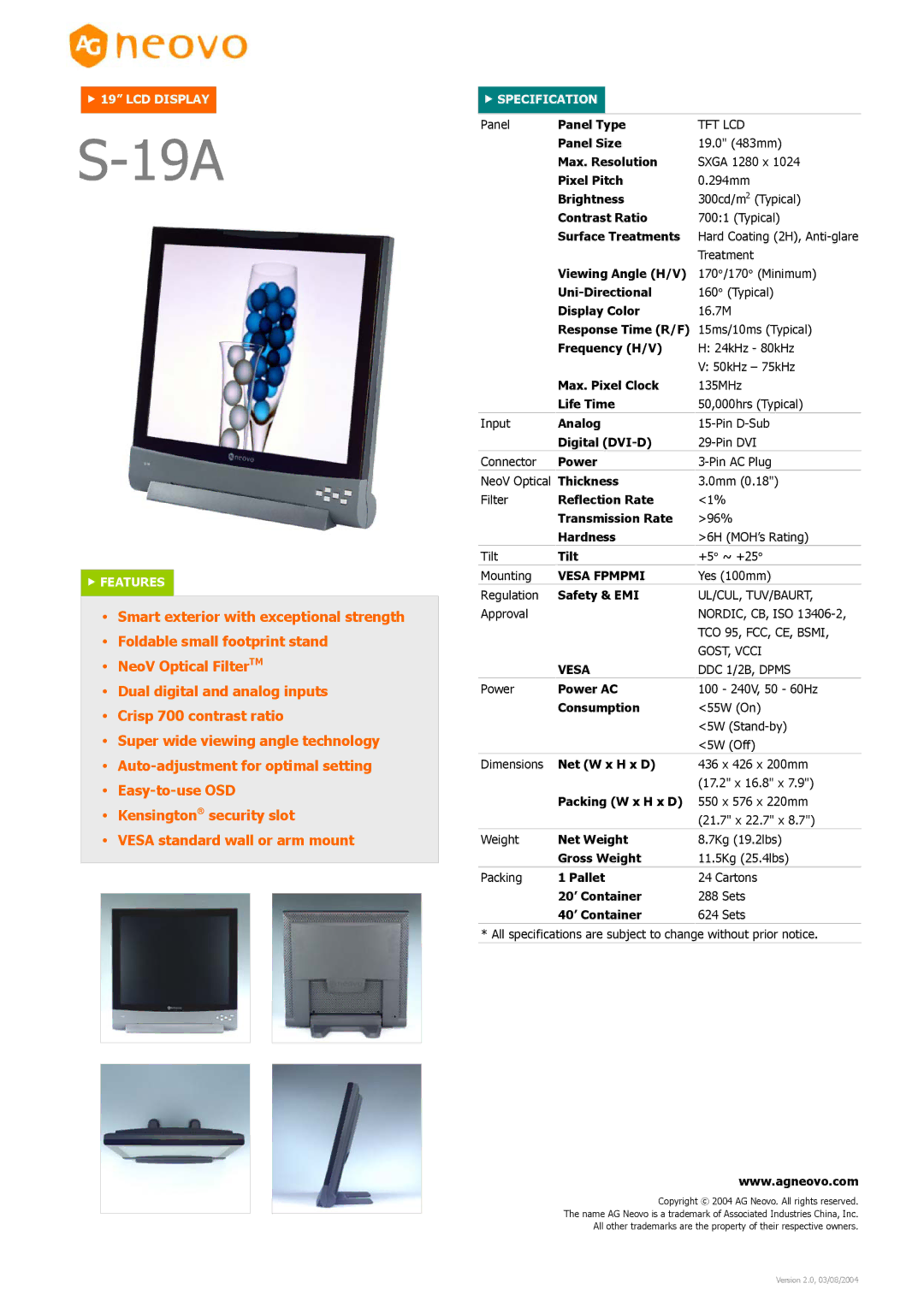

f19” LCD DISPLAY
S-19A
fFEATURES
Smart exterior with exceptional strength Foldable small footprint stand
NeoV Optical FilterTM
Dual digital and analog inputs Crisp 700 contrast ratio
Super wide viewing angle technology
Kensington security slot
VESA standard wall or arm mount
fSPECIFICATION
Panel | Panel Type | TFT LCD |
| Panel Size | 19.0" (483mm) |
| Max. Resolution | SXGA 1280 x 1024 |
| Pixel Pitch | 0.294mm |
| Brightness | 300cd/m2 (Typical) |
| Contrast Ratio | 700:1 (Typical) |
| Surface Treatments | Hard Coating (2H), |
|
| Treatment |
| Viewing Angle (H/V) | 170°/170° (Minimum) |
| 160° (Typical) | |
| Display Color | 16.7M |
| Response Time (R/F) | 15ms/10ms (Typical) |
| Frequency (H/V) | H: 24kHz - 80kHz |
|
| V: 50kHz – 75kHz |
| Max. Pixel Clock | 135MHz |
| Life Time | 50,000hrs (Typical) |
Input | Analog | |
| Digital | |
Connector | Power | |
NeoV Optical | Thickness | 3.0mm (0.18") |
Filter | Reflection Rate | <1% |
| Transmission Rate | >96% |
| Hardness | >6H (MOH’s Rating) |
Tilt | Tilt | +5° ~ +25° |
Mounting | VESA FPMPMI | Yes (100mm) |
Regulation | Safety & EMI | UL/CUL, TUV/BAURT, |
Approval |
| NORDIC, CB, ISO |
|
| TCO 95, FCC, CE, BSMI, |
|
| GOST, VCCI |
| VESA | DDC 1/2B, DPMS |
Power | Power AC | 100 - 240V, 50 - 60Hz |
| Consumption | <55W (On) |
|
| <5W |
|
| <5W (Off) |
Dimensions | Net (W x H x D) | 436 x 426 x 200mm |
|
| (17.2" x 16.8" x 7.9") |
| Packing (W x H x D) | 550 x 576 x 220mm |
|
| (21.7" x 22.7" x 8.7") |
Weight | Net Weight | 8.7Kg (19.2lbs) |
| Gross Weight | 11.5Kg (25.4lbs) |
Packing | 1 Pallet | 24 Cartons |
| 20’ Container | 288 Sets |
| 40’ Container | 624 Sets |
* All specifications are subject to change without prior notice.
www.agneovo.com
Copyright © 2004 AG Neovo. All rights reserved. The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
Version 2.0, 03/08/2004
