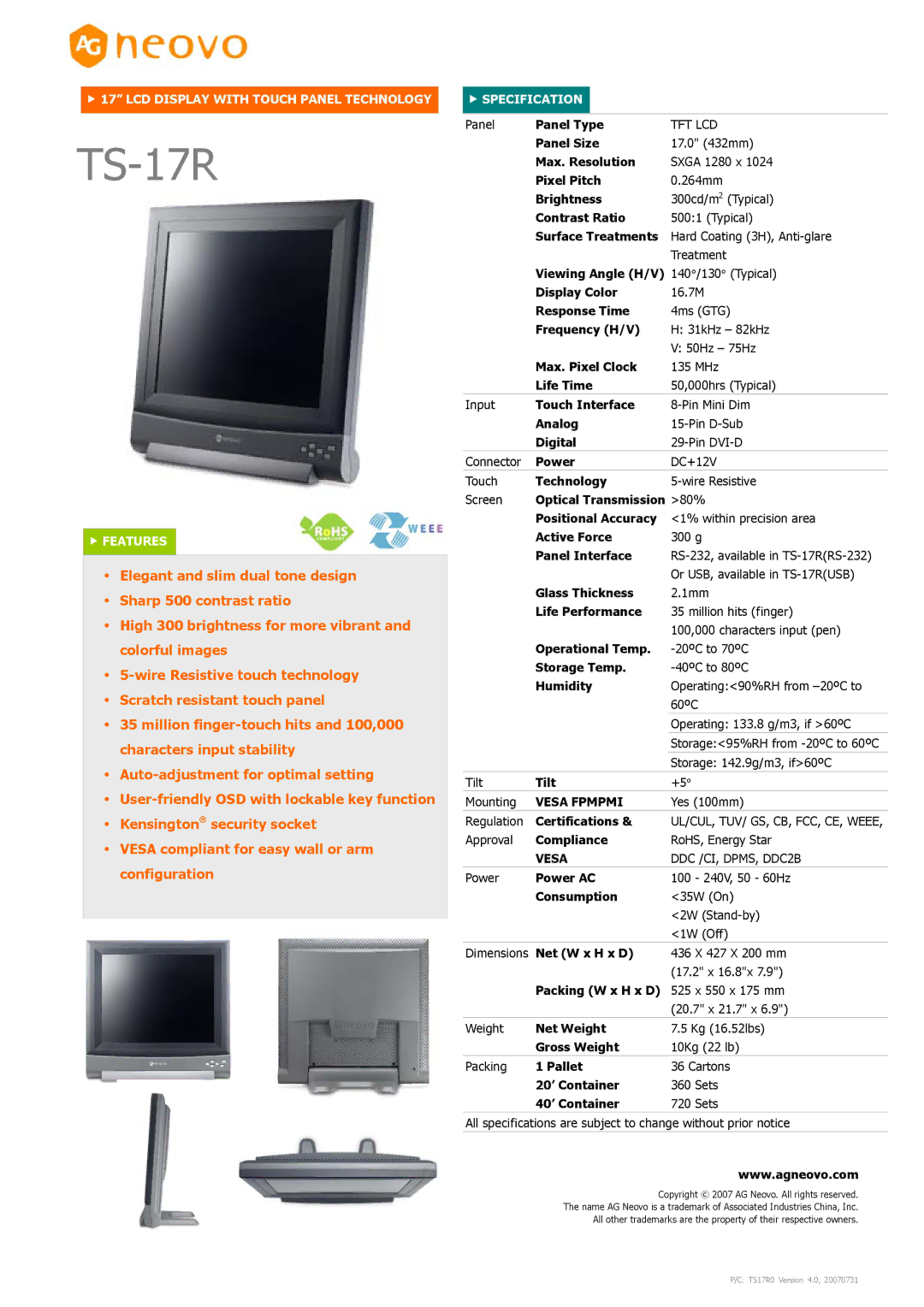

f17” LCD DISPLAY WITH TOUCH PANEL TECHNOLOGY

TS-17R

fFEATURES

Elegant and slim dual tone design Sharp 500 contrast ratio

High 300 brightness for more vibrant and colorful images

5-wire Resistive touch technology Scratch resistant touch panel

35 million finger-touch hits and 100,000 characters input stability Auto-adjustment for optimal setting User-friendly OSD with lockable key function Kensingtonsecurity socket

VESA compliant for easy wall or arm configuration

fSPECIFICATION

Panel

Panel Type

TFT LCD



Panel Size

17.0" (432mm)



Max. Resolution

SXGA 1280 x 1024



Pixel Pitch

0.264mm



Brightness

300cd/m2 (Typical)



Contrast Ratio

500:1 (Typical)



Surface Treatments

Hard Coating (3H), Anti-glare





Treatment



Viewing Angle (H/V)

140°/130° (Typical)



Display Color

16.7M



Response Time

4ms (GTG)



Frequency (H/V)

H: 31kHz – 82kHz





V: 50Hz – 75Hz



Max. Pixel Clock

135 MHz



Life Time

50,000hrs (Typical)

Input

Touch Interface

8-Pin Mini Dim



Analog

15-Pin D-Sub



Digital

29-Pin DVI-D

Connector

Power

DC+12V

Touch

Technology

5-wire Resistive

Screen

Optical Transmission >80%



Positional Accuracy

<1% within precision area



Active Force

300 g



Panel Interface

RS-232, available in TS-17R(RS-232)





Or USB, available in TS-17R(USB)



Glass Thickness

2.1mm



Life Performance

35 million hits (finger)





100,000 characters input (pen)



Operational Temp.

-20ºC to 70ºC



Storage Temp.

-40ºC to 80ºC



Humidity

Operating:<90%RH from –20ºC to





60ºC





Operating: 133.8 g/m3, if >60ºC





Storage:<95%RH from -20ºC to 60ºC





Storage: 142.9g/m3, if>60ºC

Tilt

Tilt

+5°

Mounting

VESA FPMPMI

Yes (100mm)

Regulation

Certifications &

UL/CUL, TUV/ GS, CB, FCC, CE, WEEE,

Approval

Compliance

RoHS, Energy Star



VESA

DDC /CI, DPMS, DDC2B

Power

Power AC

100 - 240V, 50 - 60Hz



Consumption

<35W (On)





<2W (Stand-by)





<1W (Off)

Dimensions

Net (W x H x D)

436 X 427 X 200 mm





(17.2" x 16.8"x 7.9")



Packing (W x H x D)

525 x 550 x 175 mm





(20.7" x 21.7" x 6.9")

Weight

Net Weight

7.5 Kg (16.52lbs)



Gross Weight

10Kg (22 lb)

Packing

1 Pallet

36 Cartons



20’ Container

360 Sets



40’ Container

720 Sets

All specifications are subject to change without prior notice
