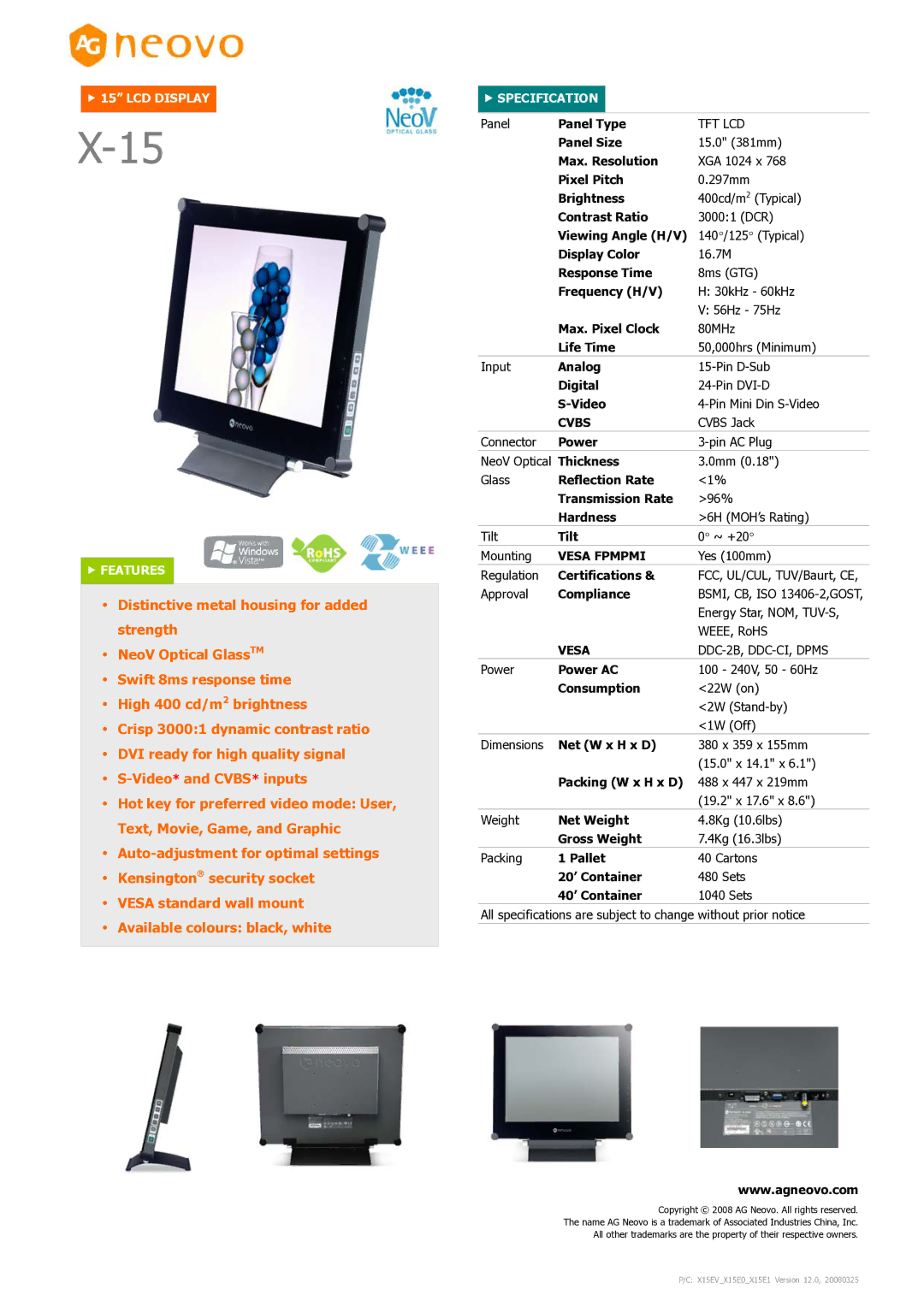

f15” LCD DISPLAY

X-15

f FEATURES

Distinctive metal housing for added strength

NeoV Optical GlassTM Swift 8ms response time High 400 cd/m2 brightness

Crisp 3000:1 dynamic contrast ratio DVI ready for high quality signal S-Video*and CVBS* inputs

Hot key for preferred video mode: User, Text, Movie, Game, and Graphic Auto-adjustment for optimal settings Kensingtonsecurity socket

VESA standard wall mount Available colours: black, white

fSPECIFICATION

Panel

Panel Type

TFT LCD



Panel Size

15.0" (381mm)



Max. Resolution

XGA 1024 x 768



Pixel Pitch

0.297mm



Brightness

400cd/m2 (Typical)



Contrast Ratio

3000:1 (DCR)



Viewing Angle (H/V)

140°/125° (Typical)



Display Color

16.7M



Response Time

8ms (GTG)



Frequency (H/V)

H: 30kHz - 60kHz





V: 56Hz - 75Hz



Max. Pixel Clock

80MHz



Life Time

50,000hrs (Minimum)

Input

Analog

15-Pin D-Sub



Digital

24-Pin DVI-D



S-Video

4-Pin Mini Din S-Video



CVBS

CVBS Jack

Connector

Power

3-pin AC Plug

NeoV Optical

Thickness

3.0mm (0.18")

Glass

Reflection Rate

<1%



Transmission Rate

>96%



Hardness

>6H (MOH’s Rating)

Tilt

Tilt

0° ~ +20°

Mounting

VESA FPMPMI

Yes (100mm)

Regulation

Certifications &

FCC, UL/CUL, TUV/Baurt, CE,

Approval

Compliance

BSMI, CB, ISO 13406-2,GOST,





Energy Star, NOM, TUV-S,





WEEE, RoHS



VESA

DDC-2B, DDC-CI, DPMS

Power

Power AC

100 - 240V, 50 - 60Hz



Consumption

<22W (on)





<2W (Stand-by)





<1W (Off)

Dimensions

Net (W x H x D)

380 x 359 x 155mm





(15.0" x 14.1" x 6.1")



Packing (W x H x D)

488 x 447 x 219mm





(19.2" x 17.6" x 8.6")

Weight

Net Weight

4.8Kg (10.6lbs)



Gross Weight

7.4Kg (16.3lbs)

Packing

1 Pallet

40 Cartons



20’ Container

480 Sets



40’ Container

1040 Sets

All specifications are subject to change without prior notice

www.agneovo.com

Copyright © 2008 AG Neovo. All rights reserved. The name AG Neovo is a trademark of Associated Industries China, Inc.

All other trademarks are the property of their respective owners.

P/C: X15EV_X15E0_X15E1 Version 12.0, 20080325

Page 1
Image 1
AG Neovo X-15 dimensions LCD Display Features, Specification, Cvbs, Vesa Fpmpmi

X-15 specifications

The AG Neovo X-15 is a cutting-edge display solution that caters primarily to professional environments, such as control rooms, security monitoring stations, and corporate settings. With its robust design and a host of impressive features, the X-15 stands out in the competitive market of high-performance monitors.

One of the most notable characteristics of the AG Neovo X-15 is its large screen size, measuring 15 inches diagonally. This expansive display allows users to view multiple feeds or applications simultaneously without the need for cumbersome scrolling or switching. The X-15 boasts a resolution of 1024 x 768 pixels, delivering crisp and clear visuals that ensure detailed scrutiny of images, videos, and data.

The technology behind the X-15 incorporates advanced LCD technology, which provides vibrant colors and excellent contrast ratios. Whether displaying bright security camera feeds or detailed informational graphics, the monitor’s image quality remains outstanding. Additionally, the screen is equipped with anti-glare features that reduce reflections and distractions, making it suitable for various lighting conditions.

Durability is another core aspect of the AG Neovo X-15 design. It features a rugged chassis with a metal casing that protects against drops, shocks, and vibrations. This durability is essential for environments where the monitor may be subjected to harsh handling or extreme conditions. Furthermore, the X-15 is compliant with various industry standards, ensuring reliability in continuous operation scenarios.

Connectivity options on the AG Neovo X-15 are diverse, including both VGA and DVI-D ports. This versatility allows the monitor to seamlessly integrate into different setups, accommodating a wide range of devices and systems. Users can easily switch between inputs, making the monitor adaptive to different professional requirements.

Another impressive feature of the X-15 is its energy efficiency. Designed with eco-friendly technology, it consumes minimal power, which is a growing concern for organizations aiming to reduce their carbon footprint. The monitor also includes an Energy Star certification, further testament to its eco-conscious engineering.

Finally, the AG Neovo X-15 is designed for user-friendliness. With adjustable mounting options and intuitive controls, users can customize their viewing experience to suit their specific needs. This flexibility ensures that professionals can maintain productivity while using the monitor in various applications.

In summary, the AG Neovo X-15 represents an optimal choice for users seeking a high-quality, durable, and versatile display solution. With its impressive features, reliable technology, and user-centric design, the X-15 is well-positioned to meet the demands of modern professional environments.
