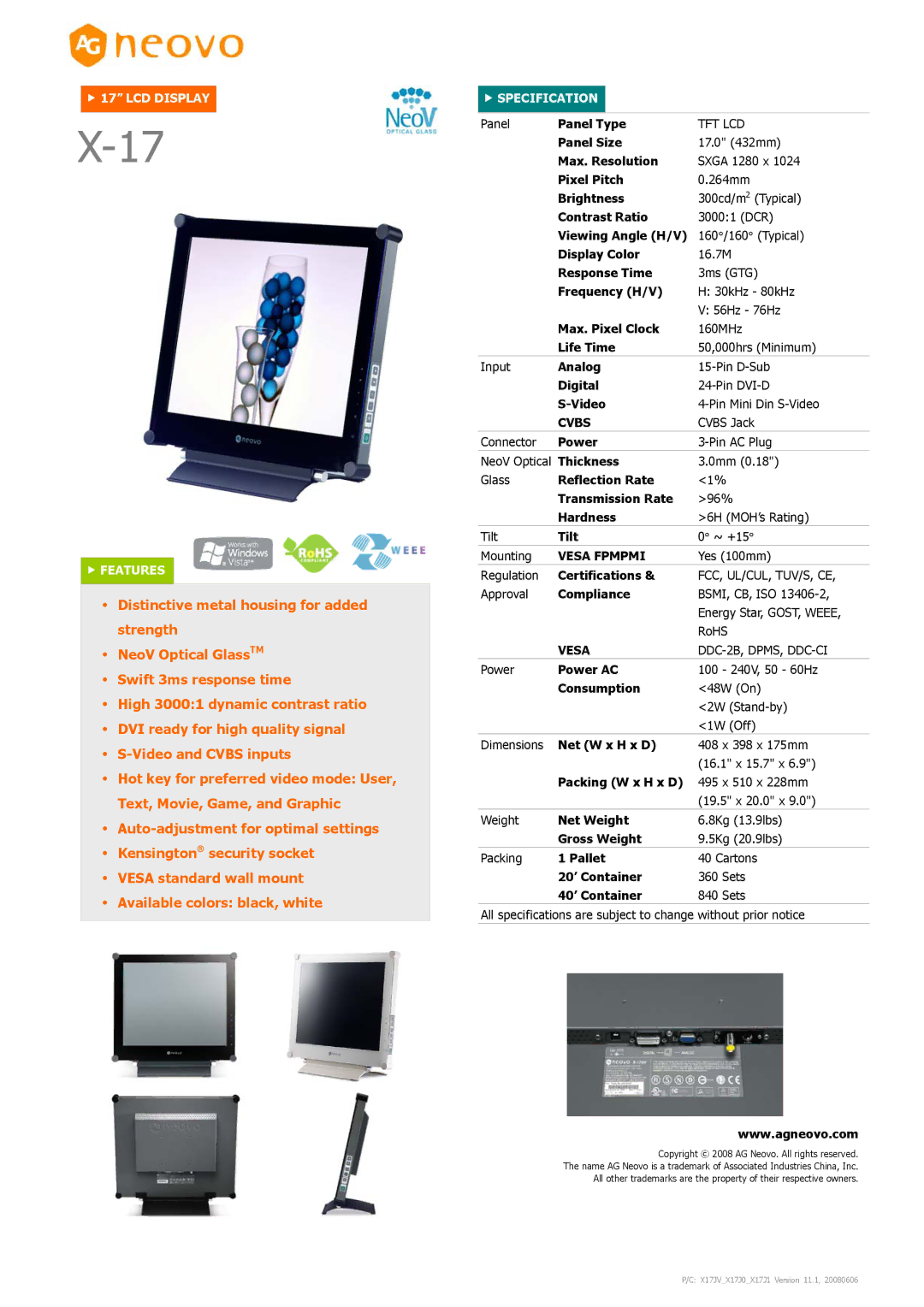

f17” LCD DISPLAY

X-17

f FEATURES

Distinctive metal housing for added strength

NeoV Optical GlassTM Swift 3ms response time

High 3000:1 dynamic contrast ratio DVI ready for high quality signal S-Video and CVBS inputs

Hot key for preferred video mode: User, Text, Movie, Game, and Graphic Auto-adjustment for optimal settings Kensington security socket

VESA standard wall mount Available colors: black, white

fSPECIFICATION

Panel	Panel Type	TFT LCD
	Panel Size	17.0" (432mm)
	Max. Resolution	SXGA 1280 x 1024
	Pixel Pitch	0.264mm
	Brightness	300cd/m2 (Typical)
	Contrast Ratio	3000:1 (DCR)
	Viewing Angle (H/V)	160°/160° (Typical)
	Display Color	16.7M
	Response Time	3ms (GTG)
	Frequency (H/V)	H: 30kHz - 80kHz
		V: 56Hz - 76Hz
	Max. Pixel Clock	160MHz
	Life Time	50,000hrs (Minimum)
Input	Analog	15-Pin D-Sub
	Digital	24-Pin DVI-D
	S-Video	4-Pin Mini Din S-Video
	CVBS	CVBS Jack
Connector	Power	3-Pin AC Plug
NeoV Optical	Thickness	3.0mm (0.18")
Glass	Reflection Rate	<1%
	Transmission Rate	>96%
	Hardness	>6H (MOH’s Rating)
Tilt	Tilt	0° ~ +15°
Mounting	VESA FPMPMI	Yes (100mm)
Regulation	Certifications &	FCC, UL/CUL, TUV/S, CE,
Approval	Compliance	BSMI, CB, ISO 13406-2,
		Energy Star, GOST, WEEE,
		RoHS
	VESA	DDC-2B, DPMS, DDC-CI
Power	Power AC	100 - 240V, 50 - 60Hz
	Consumption	<48W (On)
		<2W (Stand-by)
		<1W (Off)
Dimensions	Net (W x H x D)	408 x 398 x 175mm
		(16.1" x 15.7" x 6.9")
	Packing (W x H x D)	495 x 510 x 228mm
		(19.5" x 20.0" x 9.0")
Weight	Net Weight	6.8Kg (13.9lbs)
	Gross Weight	9.5Kg (20.9lbs)
Packing	1 Pallet	40 Cartons
	20’ Container	360 Sets
	40’ Container	840 Sets

All specifications are subject to change without prior notice

www.agneovo.com

Copyright © 2008 AG Neovo. All rights reserved. The name AG Neovo is a trademark of Associated Industries China, Inc.

All other trademarks are the property of their respective owners.

P/C: X17JV_X17J0_X17J1 Version 11.1, 20080606
