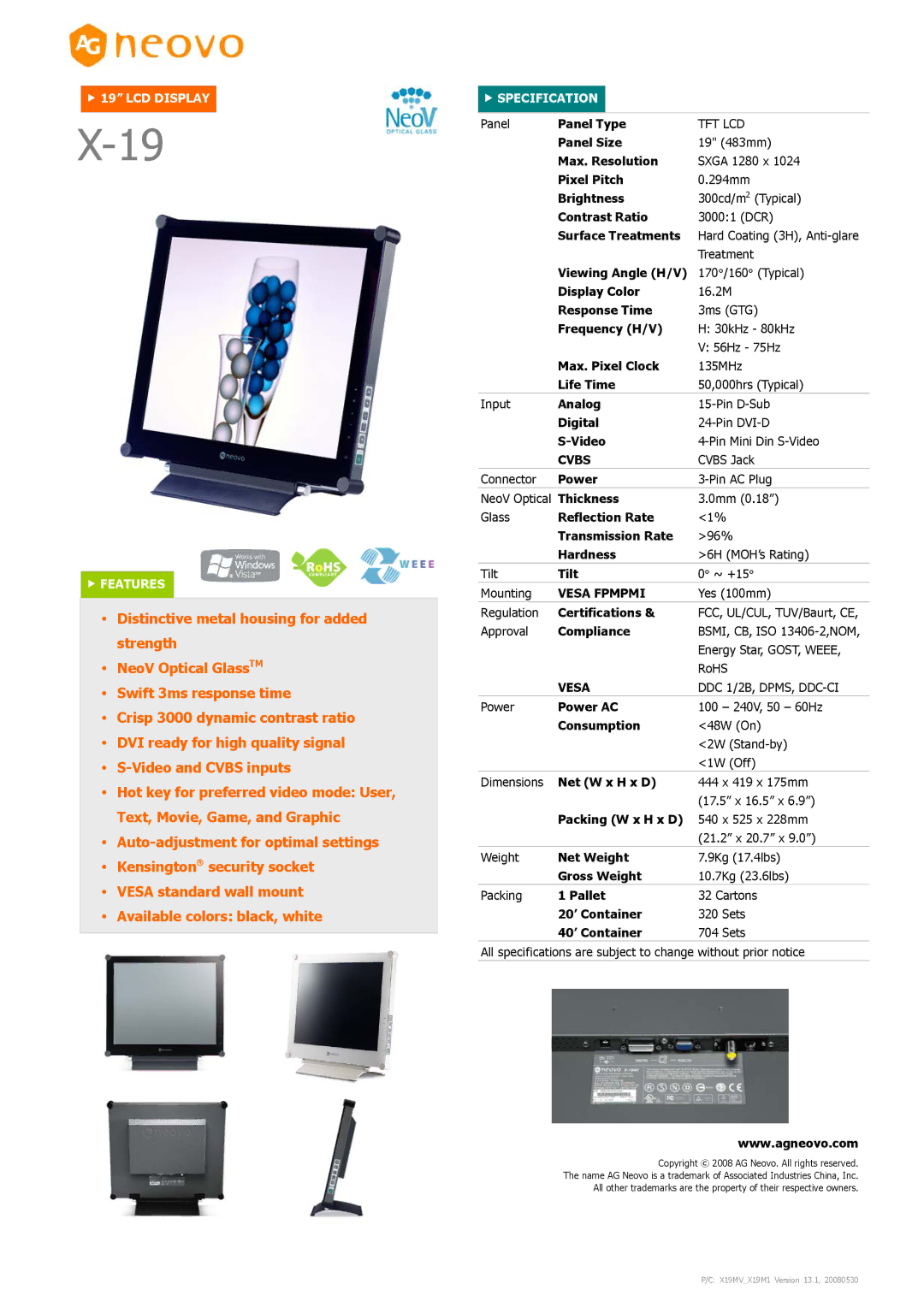

f19” LCD DISPLAY

X-19

f FEATURES

Distinctive metal housing for added strength

NeoV Optical GlassTM Swift 3ms response time

Crisp 3000 dynamic contrast ratio DVI ready for high quality signal S-Video and CVBS inputs

Hot key for preferred video mode: User, Text, Movie, Game, and Graphic Auto-adjustment for optimal settings Kensingtonsecurity socket

VESA standard wall mount Available colors: black, white

fSPECIFICATION

Panel

Panel Type

TFT LCD



Panel Size

19" (483mm)



Max. Resolution

SXGA 1280 x 1024



Pixel Pitch

0.294mm



Brightness

300cd/m2 (Typical)



Contrast Ratio

3000:1 (DCR)



Surface Treatments

Hard Coating (3H), Anti-glare





Treatment



Viewing Angle (H/V)

170°/160° (Typical)



Display Color

16.2M



Response Time

3ms (GTG)



Frequency (H/V)

H: 30kHz - 80kHz





V: 56Hz - 75Hz



Max. Pixel Clock

135MHz



Life Time

50,000hrs (Typical)

Input

Analog

15-Pin D-Sub



Digital

24-Pin DVI-D



S-Video

4-Pin Mini Din S-Video



CVBS

CVBS Jack

Connector

Power

3-Pin AC Plug

NeoV Optical

Thickness

3.0mm (0.18”)

Glass

Reflection Rate

<1%



Transmission Rate

>96%



Hardness

>6H (MOH’s Rating)

Tilt

Tilt

0° ~ +15°

Mounting

VESA FPMPMI

Yes (100mm)

Regulation

Certifications &

FCC, UL/CUL, TUV/Baurt, CE,

Approval

Compliance

BSMI, CB, ISO 13406-2,NOM,





Energy Star, GOST, WEEE,





RoHS



VESA

DDC 1/2B, DPMS, DDC-CI

Power

Power AC

100 – 240V, 50 – 60Hz



Consumption

<48W (On)





<2W (Stand-by)





<1W (Off)

Dimensions

Net (W x H x D)

444 x 419 x 175mm





(17.5” x 16.5” x 6.9”)



Packing (W x H x D)

540 x 525 x 228mm





(21.2” x 20.7” x 9.0”)

Weight

Net Weight

7.9Kg (17.4lbs)



Gross Weight

10.7Kg (23.6lbs)

Packing

1 Pallet

32 Cartons



20’ Container

320 Sets



40’ Container

704 Sets

All specifications are subject to change without prior notice

www.agneovo.com

Copyright © 2008 AG Neovo. All rights reserved. The name AG Neovo is a trademark of Associated Industries China, Inc.

All other trademarks are the property of their respective owners.

P/C: X19MV_X19M1 Version 13.1, 20080530
