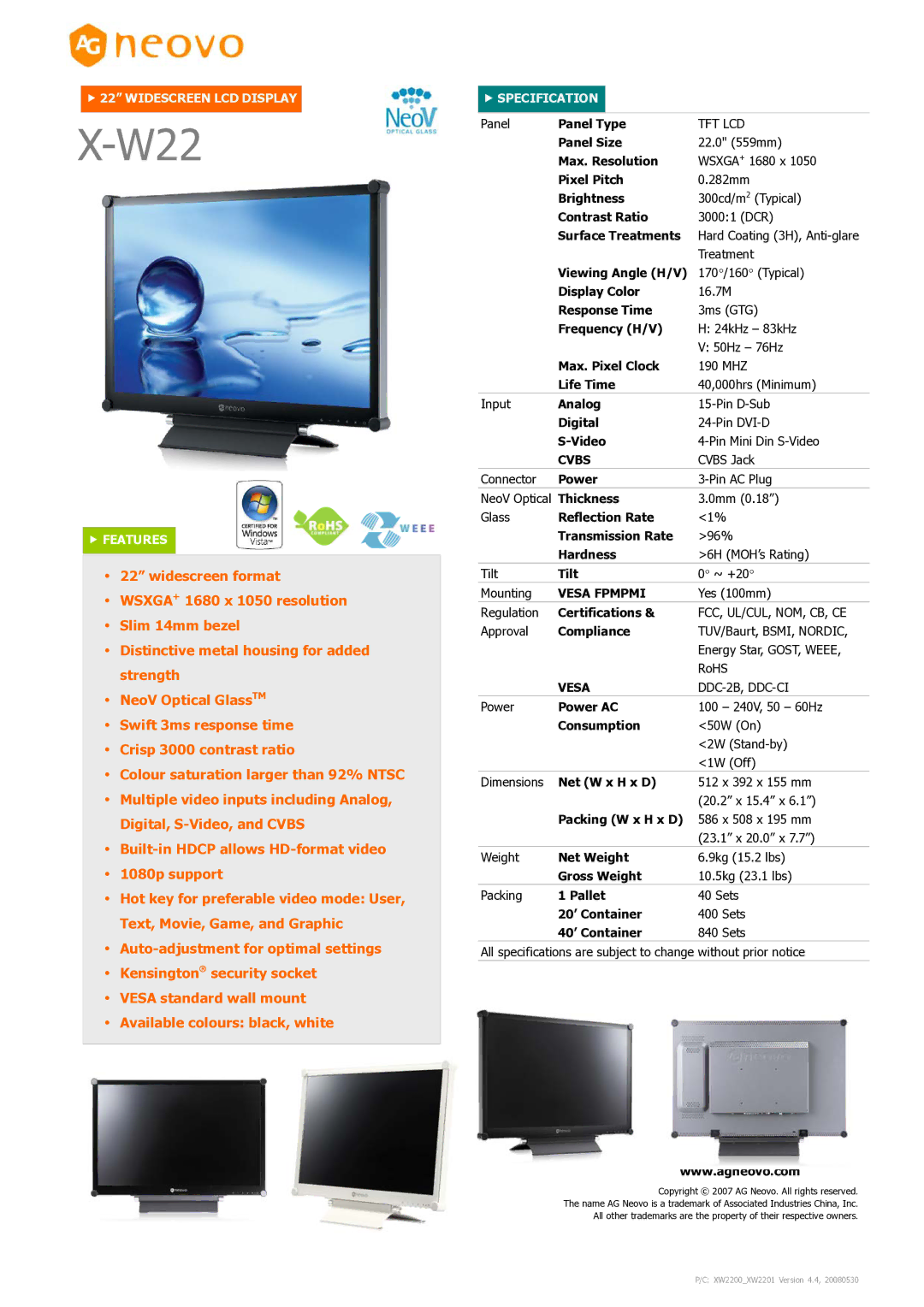

f22” WIDESCREEN LCD DISPLAY

X-W22

fFEATURES

22” widescreen format

WSXGA+ 1680 x 1050 resolution Slim 14mm bezel

Distinctive metal housing for added strength

NeoV Optical GlassTM Swift 3ms response time Crisp 3000 contrast ratio

Colour saturation larger than 92% NTSC Multiple video inputs including Analog, Digital, S-Video, and CVBS

Built-in HDCP allows HD-format video 1080p support

Hot key for preferable video mode: User, Text, Movie, Game, and Graphic Auto-adjustment for optimal settings Kensington security socket

VESA standard wall mount Available colours: black, white

fSPECIFICATION

Panel	Panel Type	TFT LCD
	Panel Size	22.0" (559mm)
	Max. Resolution	WSXGA+ 1680 x 1050
	Pixel Pitch	0.282mm
	Brightness	300cd/m2 (Typical)
	Contrast Ratio	3000:1 (DCR)
	Surface Treatments	Hard Coating (3H), Anti-glare
		Treatment
	Viewing Angle (H/V)	170°/160° (Typical)
	Display Color	16.7M
	Response Time	3ms (GTG)
	Frequency (H/V)	H: 24kHz – 83kHz
		V: 50Hz – 76Hz
	Max. Pixel Clock	190 MHZ
	Life Time	40,000hrs (Minimum)
Input	Analog	15-Pin D-Sub
	Digital	24-Pin DVI-D
	S-Video	4-Pin Mini Din S-Video
	CVBS	CVBS Jack
Connector	Power	3-Pin AC Plug
NeoV Optical	Thickness	3.0mm (0.18”)
Glass	Reflection Rate	<1%
	Transmission Rate	>96%
	Hardness	>6H (MOH’s Rating)
Tilt	Tilt	0° ~ +20°
Mounting	VESA FPMPMI	Yes (100mm)
Regulation	Certifications &	FCC, UL/CUL, NOM, CB, CE
Approval	Compliance	TUV/Baurt, BSMI, NORDIC,
		Energy Star, GOST, WEEE,
		RoHS
	VESA	DDC-2B, DDC-CI
Power	Power AC	100 – 240V, 50 – 60Hz
	Consumption	<50W (On)
		<2W (Stand-by)
		<1W (Off)
Dimensions	Net (W x H x D)	512 x 392 x 155 mm
		(20.2” x 15.4” x 6.1”)
	Packing (W x H x D)	586 x 508 x 195 mm
		(23.1” x 20.0” x 7.7”)
Weight	Net Weight	6.9kg (15.2 lbs)
	Gross Weight	10.5kg (23.1 lbs)
Packing	1 Pallet	40 Sets
	20’ Container	400 Sets
	40’ Container	840 Sets

All specifications are subject to change without prior notice

www.agneovo.com

Copyright © 2007 AG Neovo. All rights reserved. The name AG Neovo is a trademark of Associated Industries China, Inc.

All other trademarks are the property of their respective owners.

P/C: XW2200_XW2201 Version 4.4, 20080530
