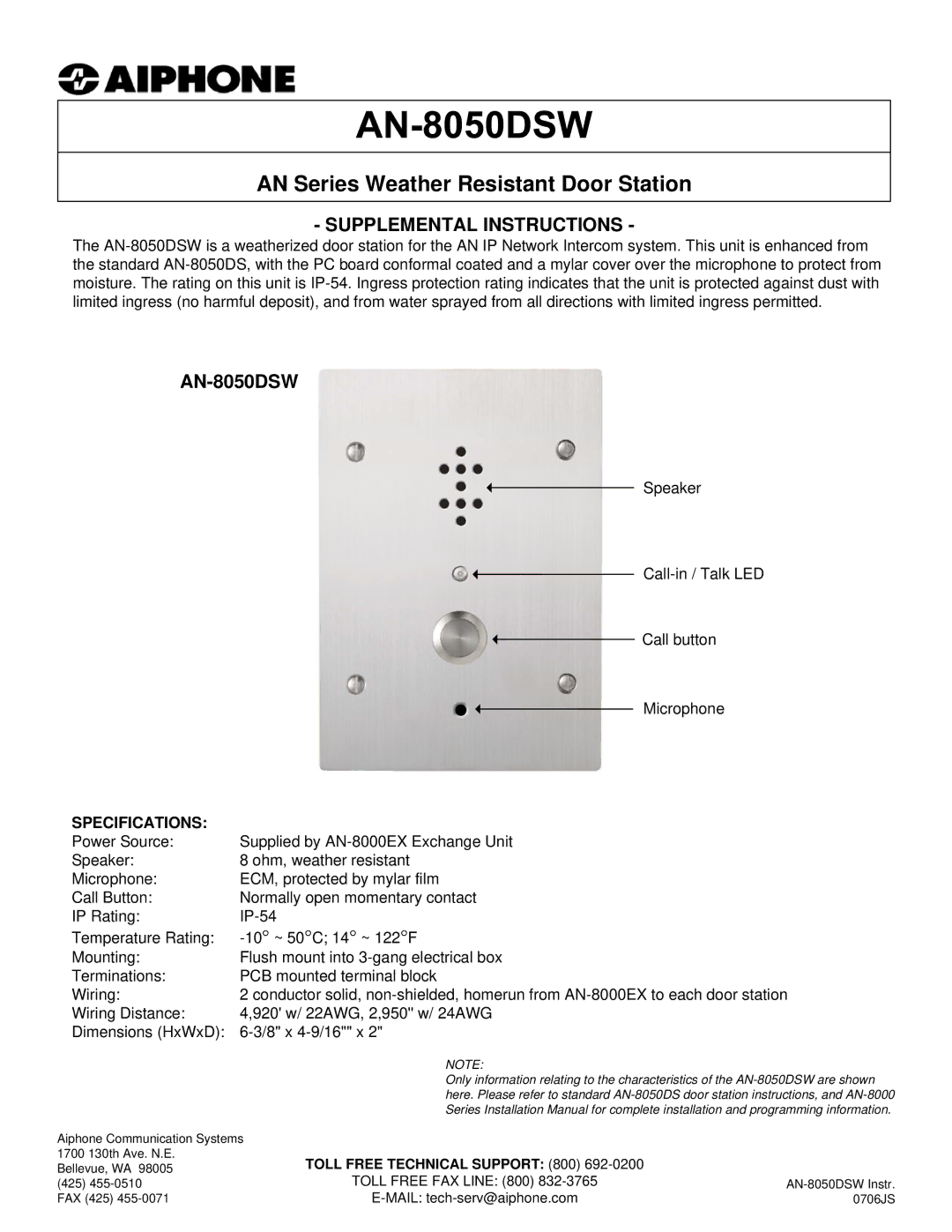

AN Series Weather Resistant Door Station

- SUPPLEMENTAL INSTRUCTIONS -

The AN-8050DSW is a weatherized door station for the AN IP Network Intercom system. This unit is enhanced from the standard AN-8050DS, with the PC board conformal coated and a mylar cover over the microphone to protect from moisture. The rating on this unit is IP-54. Ingress protection rating indicates that the unit is protected against dust with limited ingress (no harmful deposit), and from water sprayed from all directions with limited ingress permitted.

AN-8050DSW

Speaker

Call-in / Talk LED

Call button

Microphone

SPECIFICATIONS:



Power Source:

Supplied by AN-8000EX Exchange Unit

Speaker:

8 ohm, weather resistant

Microphone:

ECM, protected by mylar film

Call Button:

Normally open momentary contact

IP Rating:

IP-54

Temperature Rating:

-10 ~ 50 C; 14 ~ 122 F

Mounting:

Flush mount into 3-gang electrical box

Terminations:

PCB mounted terminal block

Wiring:

2 conductor solid, non-shielded, homerun from AN-8000EX to each door station

Wiring Distance:

4,920' w/ 22AWG, 2,950'' w/ 24AWG

Dimensions (HxWxD):

6-3/8" x 4-9/16"" x 2"

NOTE:

Only information relating to the characteristics of the AN-8050DSW are shown here. Please refer to standard AN-8050DS door station instructions, and AN-8000 Series Installation Manual for complete installation and programming information.

Aiphone Communication Systems





1700 130th Ave. N.E.

TOLL FREE TECHNICAL SUPPORT: (800) 692-0200



Bellevue, WA 98005



(425) 455-0510

TOLL FREE FAX LINE: (800) 832-3765

AN-8050DSW Instr.

FAX (425) 455-0071

E-MAIL: tech-serv@aiphone.com

0706JS
