0710

Vandal Proof Sub Station with Standard Call Button

and Red Emergency Call Button

Equipped with DPDT Contacts

- INSTRUCTIONS -

The NE-NVP-2DC is a vandal proof sub station designed for use with the NDR or NDRM system.

It is constructed of 11 gauge carbon steel with a white powder-coated finish. The NE-NVP-2DC can be flush or surface mounted and includes tamper proof screws and a wrench for installation.

WIRING DIAGRAM:





NDR/NDRM



NE-NVP-2DC



































Master







NE-NVP-2DC





















1









Red













































Red





NE-NVP-2DC

































2









































































3









































Red

















































~







Green











Green









Green







































20





jumper











jumper









jumper









(Do not cut)











(Do not cut)











(Do not cut)











































H



Wht











Wht















Wht







E



Blk











Blk













Blk

PS-2420UL













Blu











Blu













Blu













Org











Org













Org















Contact #1

Contact #1







Contact #1









+





+





Org







Org









Org

































-



-







Yel











Yel













Yel







Contact #2

Contact #2





Contact #2























Yel







Yel









Yel













































































NOTES:

1.Do not cut the green jumper on the circuit board unless an external call-placed lamp is installed at the sub station.

2.Red Duress call button on sub station provides two sets of alternate action N/O contacts (Orange/Yellow pairs). Both contacts are activated by push on/push off function of Duress button. (Open when off, closed when on.)

3.NE-NVP-2DC flush mounts into a 3-gang masonry type box (Raco #692, 697, or equivalent.)

4.Surface mount box for NE-NVP-2DC is model SBX-NVP, sold separately.

SPECIFICATIONS:

Power Source:

Supplied by master station

Speaker:

20 ohms, 2-½" diameter, water proof and puncture resistant, 2.4 oz. ceramic magnet

Call Button:

SPST, normally open push button. Red button: Activates DPDT N/O contacts (ORG/YEL pairs).



DPDT Relay Contacts: 6A @ 125V AC or 6A @ 30V DC. Min. 25,000 operations

Faceplate:

11 gauge carbon steel with powder-coated white baked epoxy finish

Call Annunciation:

Standard call button at sub latches call at NEM master until answered.



Red emergency button is "push-on, push-off", which activates or deactivates DPDT contacts and



red LED. "Push-on" activates relay and LED, "push-off" deactivates them.

Communication:

Hands free at sub. Master is push-to-talk or VOX with handset.

Terminal Definitions:

RED: Station #



BLACK: to "E" (Common)



WHITE: to "H" (12 VDC - Powers DPDT contacts and LED)

Wiring:

Communication and standard call: 3 conductors homerun; or 2 common plus 1 individual per



sub, looped through each sub. Shielded cable is recommended.



Use Aiphone #822203 or #821803 for homerun wiring, #822206 for up to 4 stations.



DPDT contacts require 4 additional wires from each sub station.

Wiring Distance:

420' with 22AWG; 1,000' with 18AWG (standard call and communication).

Dimensions (H x W x D):

NE-NVP-2DC alone: 7-1/2" x 5-1/2" x 2". With SBX-NVP: 8-5/8" x 6-5/8" x 2-1/4"

Aiphone Communication Systems



1700 130th Ave. N.E.

Toll Free Technical Support:

Bellevue, WA 98005

(425) 455-0510

1-800-692-0200

FAX (425) 455-0071

E-mail tech@aiphone.com

NE-NVP-2DC Instr.

35213 Rev. 6

0710JD

Page 1

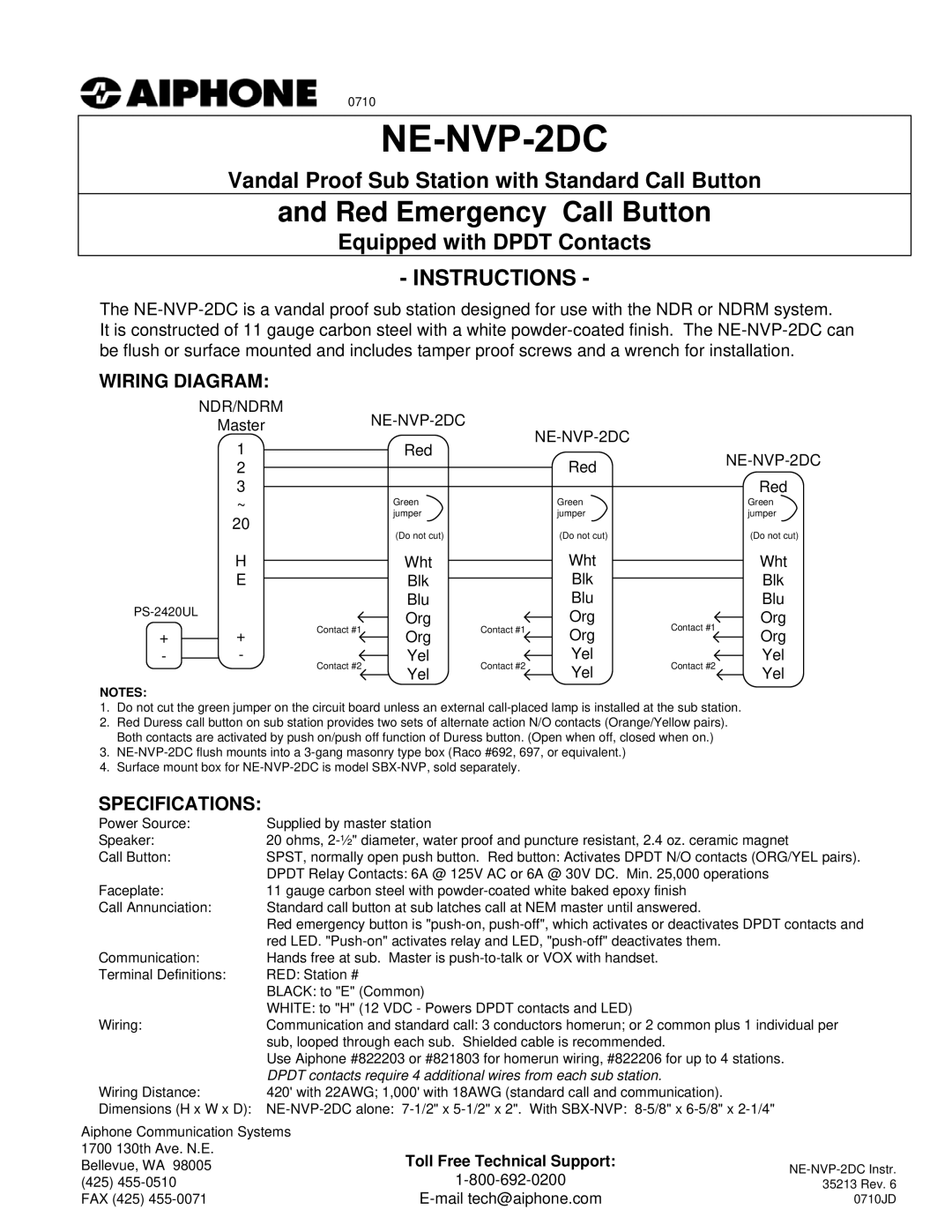

Image 1
