NE-NVP (-W)

Vandal Proof Sub Station for NEM System

SBX-NVP

Surface Mount Box for NE-NVP

- INSTRUCTIONS -

The NE-NVP is a vandal proof sub station designed for use with the NEM system. The NE-NVP-W is the weather resistant model. It is constructed of 11 gauge carbon steel with a white powder-coated finish. The NE-NVP can be flush or surface mounted and includes tamper proof screws and tool for installation.

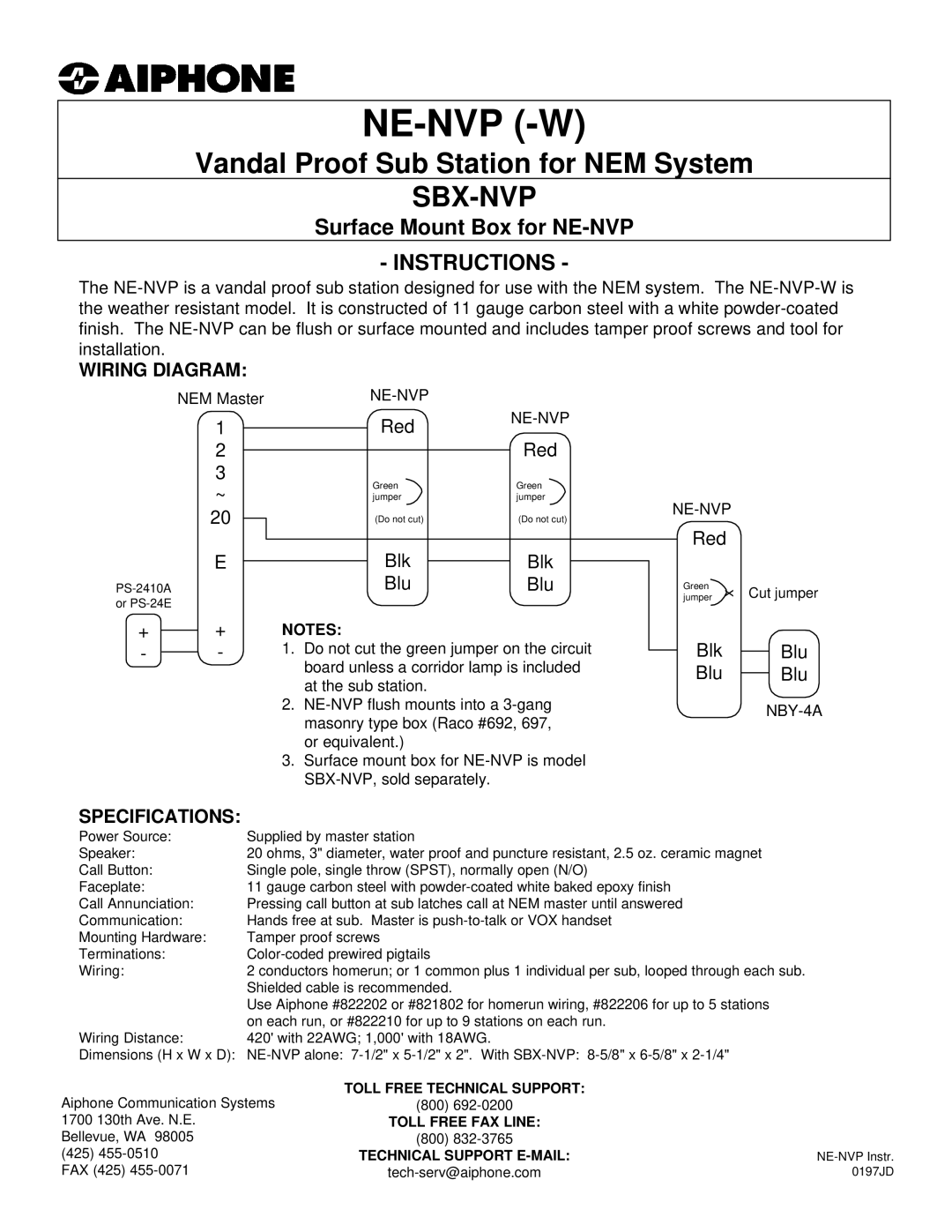

WIRING DIAGRAM:

NEM Master

1

2

3

~

20

E

PS-2410A or PS-24E

NE-NVP

RedNE-NVP



Red

Green

Green

jumper

jumper

(Do not cut)

(Do not cut)

Blk

Blk

Blu

Blu

NE-NVP

Red

Green

x

Cut jumper

jumper

+







+

NOTES:







-





-

1. Do not cut the green jumper on the circuit













board unless a corridor lamp is included











at the sub station.

2.NE-NVP flush mounts into a 3-gang masonry type box (Raco #692, 697, or equivalent.)

3.Surface mount box for NE-NVP is model SBX-NVP, sold separately.

Blk Blu

Blu Blu

NBY-4A

SPECIFICATIONS:

Power Source:

Supplied by master station



Speaker:

20 ohms, 3" diameter, water proof and puncture resistant, 2.5 oz. ceramic magnet

Call Button:

Single pole, single throw (SPST), normally open (N/O)

Faceplate:

11 gauge carbon steel with powder-coated white baked epoxy finish

Call Annunciation:

Pressing call button at sub latches call at NEM master until answered

Communication:

Hands free at sub. Master is push-to-talk or VOX handset

Mounting Hardware:

Tamper proof screws



Terminations:

Color-coded prewired pigtails



Wiring:

2 conductors homerun; or 1 common plus 1 individual per sub, looped through each sub.



Shielded cable is recommended.





Use Aiphone #822202 or #821802 for homerun wiring, #822206 for up to 5 stations



on each run, or #822210 for up to 9 stations on each run.

Wiring Distance:

420' with 22AWG; 1,000' with 18AWG.



Dimensions (H x W x D):

NE-NVP alone:

7-1/2" x 5-1/2" x 2". With SBX-NVP:

8-5/8" x 6-5/8" x 2-1/4"

Aiphone Communication Systems

TOLL FREE TECHNICAL SUPPORT:



(800) 692-0200



1700 130th Ave. N.E.



TOLL FREE FAX LINE:



Bellevue, WA 98005



(800) 832-3765



(425) 455-0510



TECHNICAL SUPPORT E-MAIL:

NE-NVP Instr.

FAX (425) 455-0071



tech-serv@aiphone.com

0197JD

Page 1
Image 1
Aiphone NE-NVP (-W) specifications Ne-Nvp -W, Sbx-Nvp, Instructions, Wiring Diagram, Specifications

NE-NVP (-W) specifications
