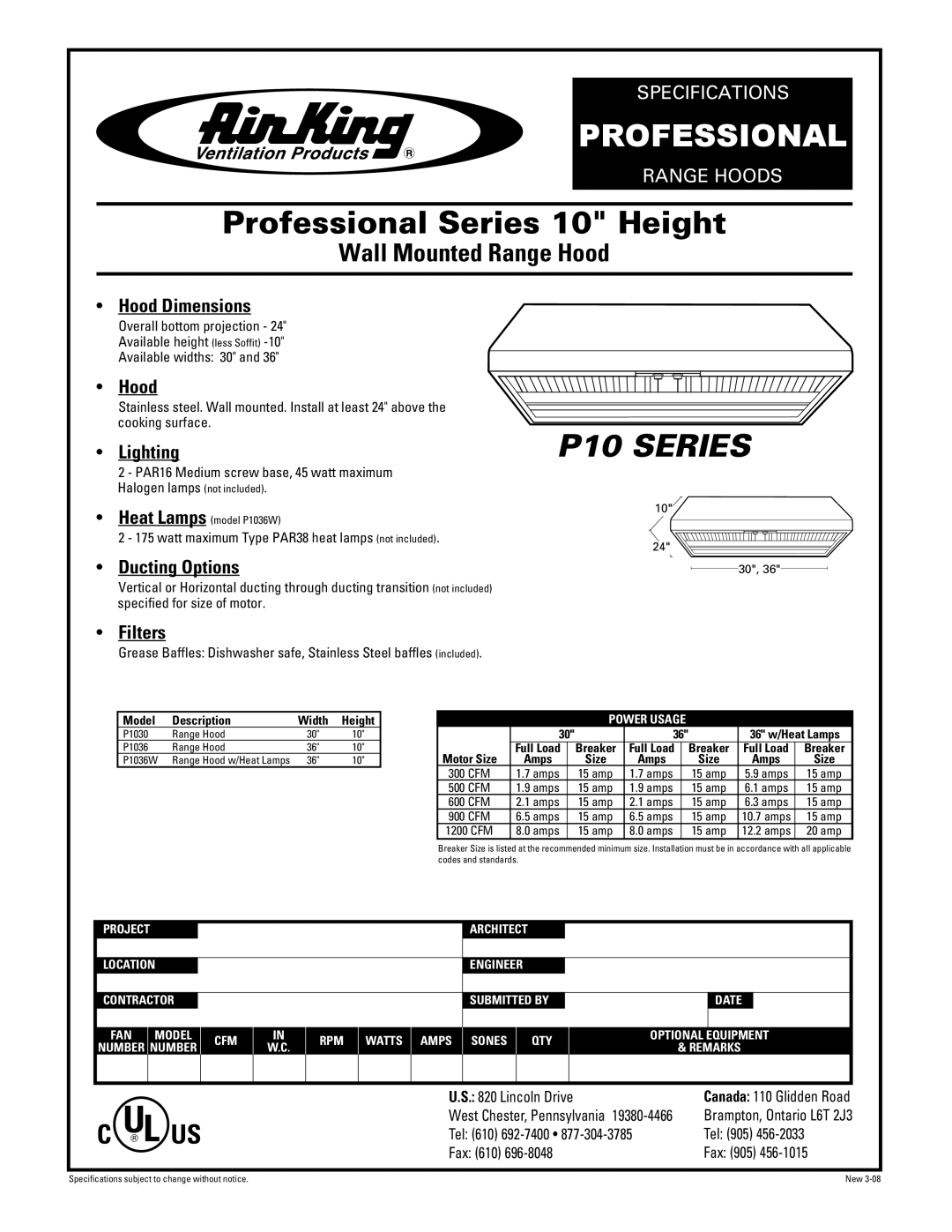

SPECIFICATIONS
PROFESSIONAL
RANGE HOODS
Professional Series 10" Height
Wall Mounted Range Hood
Available height (less Soffit)
Stainless steel. Wall mounted. Install at least 24" above the cooking surface.
•Lighting2 - PAR16 Medium screw base, 45 watt maximum Halogen lamps (not included).
•Heat Lamps (model P1036W)
2 - 175 watt maximum Type PAR38 heat lamps (not included).•Ducting OptionsVertical or Horizontal ducting through ducting transition (not included) specified for size of motor.
P10 SERIES
10"
24"
30", 36"
Model | Description | Width | Height |
|
|
|
| POWER USAGE |
|
|
| ||
P1030 | Range Hood | 30" | 10" |
|
| 30" |
| 36" |
| 36" w/Heat Lamps | |||
P1036 | Range Hood | 36" | 10" |
|
|
|
|
|
|
|
|
|
|
|
| Full Load |
| Breaker | Full Load |
| Breaker | Full Load | Breaker | ||||
P1036W | Range Hood w/Heat Lamps | 36" | 10" |
| Motor Size | Amps |
| Size | Amps |
| Size | Amps | Size |
|
|
|
|
| 300 CFM | 1.7 amps |
| 15 amp | 1.7 amps |
| 15 amp | 5.9 amps | 15 amp |
|
|
|
|
| 500 CFM | 1.9 amps |
| 15 amp | 1.9 amps |
| 15 amp | 6.1 amps | 15 amp |
|
|
|
|
| 600 CFM | 2.1 amps |
| 15 amp | 2.1 amps |
| 15 amp | 6.3 amps | 15 amp |
|
|
|
|
| 900 CFM | 6.5 amps |
| 15 amp | 6.5 amps |
| 15 amp | 10.7 amps | 15 amp |
|
|
|
|
| 1200 CFM | 8.0 amps |
| 15 amp | 8.0 amps |
| 15 amp | 12.2 amps | 20 amp |
Breaker Size is listed at the recommended minimum size. Installation must be in accordance with all applicable codes and standards.
PROJECT |
|
|
|
|
|
| ARCHITECT |
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LOCATION |
|
|
|
|
|
| ENGINEER |
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
CONTRACTOR |
|
|
|
|
|
| SUBMITTED BY |
|
| DATE |
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
FAN | MODEL |
| CFM | IN | RPM | WATTS | AMPS | SONES |
| QTY |
| OPTIONAL | EQUIPMENT | |
NUMBER | NUMBER |
| W.C. |
|
| & REMARKS | ||||||||
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
