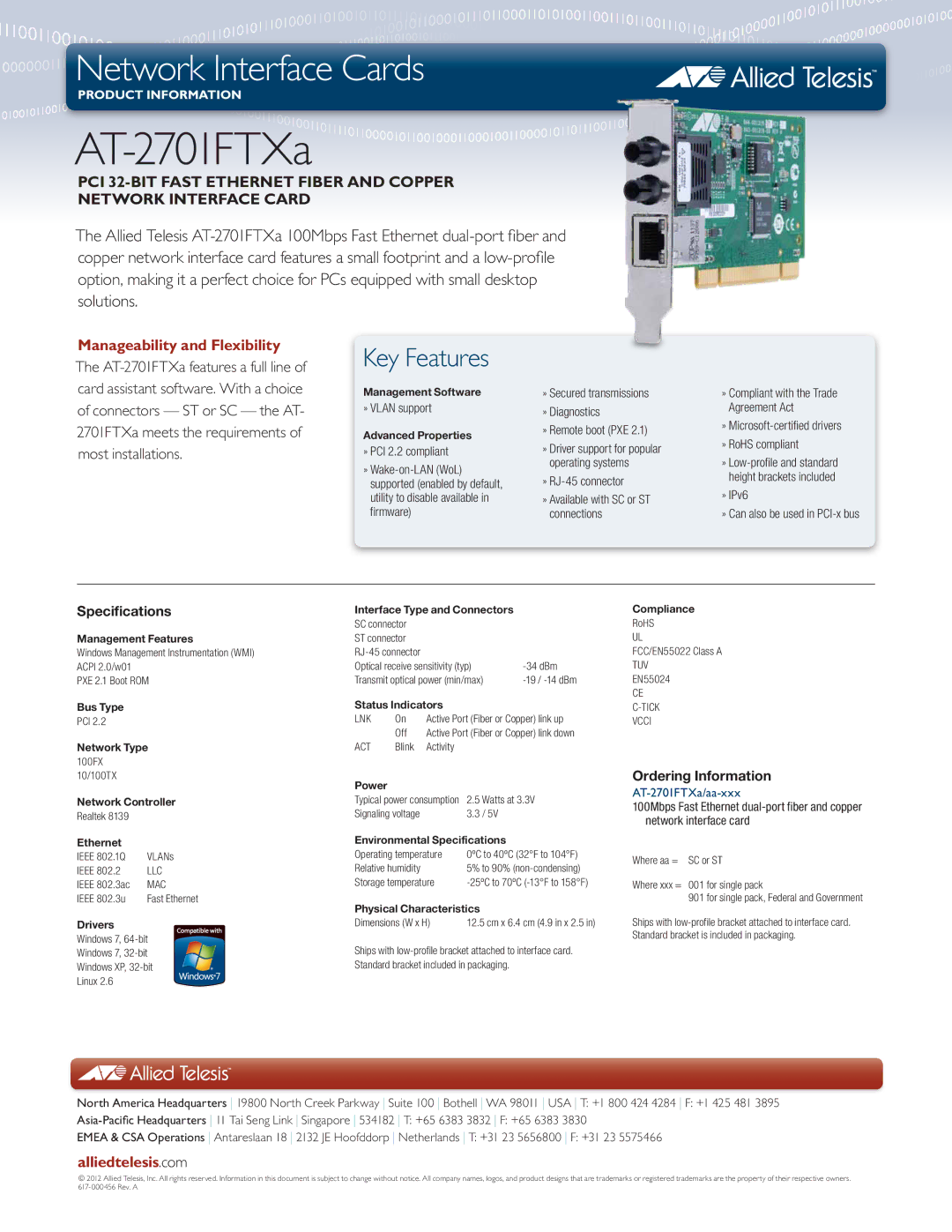

Network Interface Cards

PRODUCT INFORMATION

AT-2701FTXa

PCI 32-bit Fast Ethernet Fiber AND COPPER Network Interface Card

The Allied Telesis AT-2701FTXa 100Mbps Fast Ethernet dual-port fiber and copper network interface card features a small footprint and a low-profile option, making it a perfect choice for PCs equipped with small desktop solutions.

Manageability and Flexibility

The AT-2701FTXa features a full line of card assistant software. With a choice of connectors — ST or SC — the AT- 2701FTXa meets the requirements of most installations.

Key Features

Management Software

»»VLAN support

Advanced Properties

»»PCI 2.2 compliant

»»Wake-on-LAN (WoL) supported (enabled by default, utility to disable available in firmware)

»»Secured transmissions »»Diagnostics »»Remote boot (PXE 2.1)

»»Driver support for popular operating systems

»»RJ-45 connector

»»Available with SC or ST connections

»»Compliant with the Trade Agreement Act

»»Microsoft-certified drivers »»RoHS compliant

»»Low-profile and standard height brackets included

»»IPv6

»»Can also be used in PCI-x bus

Specifications

Management Features

Windows Management Instrumentation (WMI)

ACPI 2.0/w01

PXE 2.1 Boot ROM

Bus Type

PCI 2.2

Network Type 100FX 10/100TX

Network Controller

Realtek 8139

Ethernet
IEEE 802.1Q	VLANs
IEEE 802.2	LLC
IEEE 802.3ac	MAC
IEEE 802.3u	Fast Ethernet

Drivers

Windows 7, 64-bit

Windows 7, 32-bit

Windows XP, 32-bit

Linux 2.6

Interface Type and Connectors
SC connector
ST connector
RJ-45 connector
Optical receive sensitivity (typ)			-34 dBm
Transmit optical power (min/max)			-19 / -14 dBm
Status Indicators
LNK	On	Active Port (Fiber or Copper) link up
	Off	Active Port (Fiber or Copper) link down
ACT	Blink	Activity

Power
Typical power consumption	2.5	Watts at 3.3V
Signaling voltage	3.3	/ 5V
Environmental Specifications
Operating temperature	0ºC to 40ºC (32°F to 104°F)
Relative humidity	5% to 90% (non-condensing)
Storage temperature	-25ºC to 70ºC (-13°F to 158°F)
Physical Characteristics
Dimensions (W x H)	12.5 cm x 6.4 cm (4.9 in x 2.5 in)

Ships with low-profile bracket attached to interface card. Standard bracket included in packaging.

Compliance

RoHS

UL

FCC/EN55022 Class A

TUV

EN55024

CE

C-TICK

VCCI

Ordering Information

AT-2701FTXa/aa-xxx

100Mbps Fast Ethernet dual-port fiber and copper network interface card

Where aa = SC or ST

Where xxx = 001 for single pack

901 for single pack, Federal and Government

Ships with low-profile bracket attached to interface card. Standard bracket is included in packaging.
