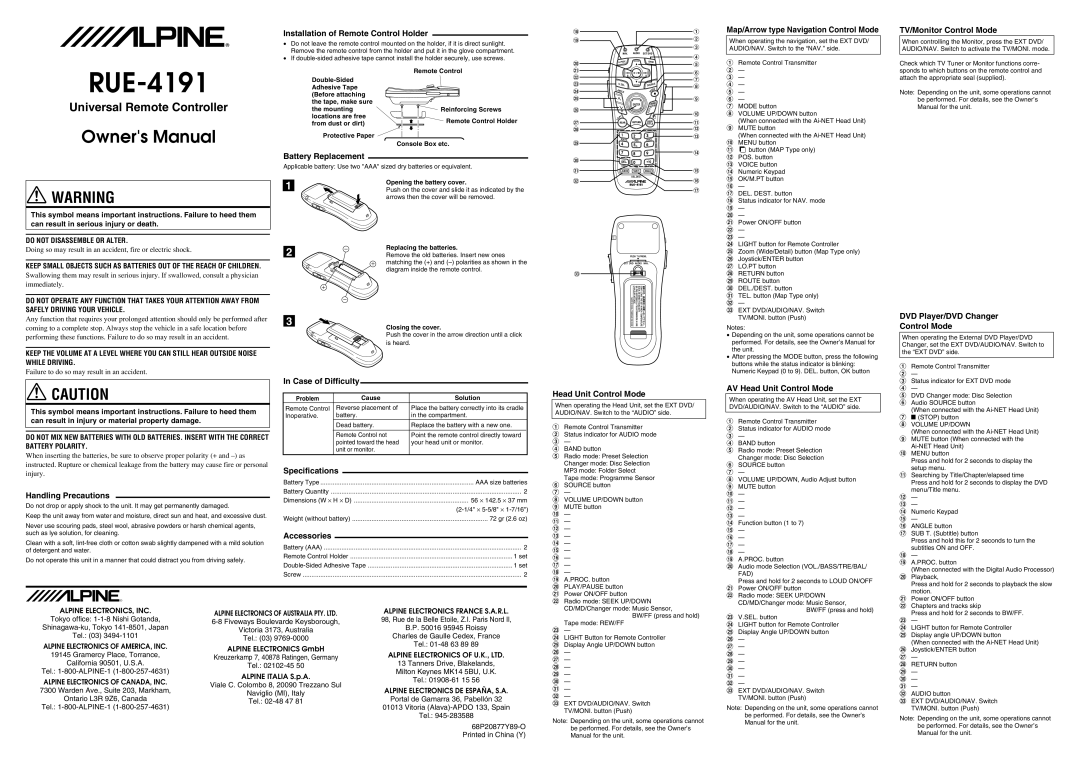

RUE-4191

Universal Remote Controller

Owner's Manual

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING.

Failure to do so may result in an accident.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT BATTERY POLARITY.

When inserting the batteries, be sure to observe proper polarity (+ and –) as instructed. Rupture or chemical leakage from the battery may cause fire or personal injury.

Handling Precautions

Do not drop or apply shock to the unit. It may get permanently damaged.

Keep the unit away from water and moisture, direct sun and heat, and excessive dust.

Never use scouring pads, steel wool, abrasive powders or harsh chemical agents, such as lye solution, for cleaning.

Clean with a soft, lint-free cloth or cotton swab slightly dampened with a mild solution of detergent and water.

Do not operate this unit in a manner that could distract you from driving safely.

Installation of Remote Control Holder

•Do not leave the remote control mounted on the holder, if it is direct sunlight. Remove the remote control from the holder and put it in the glove compartment.

•If double-sided adhesive tape cannot install the holder securely, use screws.

		Remote Control
	Double-Sided
	Adhesive Tape
	(Before attaching
	the tape, make sure
	the mounting	Reinforcing Screws
	locations are free	Remote Control Holder
	from dust or dirt)	Remote Control Holder
	from dust or dirt)

Protective Paper

Console Box etc.

Battery Replacement

Applicable battery: Use two "AAA" sized dry batteries or equivalent.

1	Opening the battery cover.
	Push on the cover and slide it as indicated by the

arrows then the cover will be removed.

2	−	Replacing the batteries.
2		Remove the old batteries. Insert new ones
	+	matching the (+) and (–) polarities as shown in the
		diagram inside the remote control.
+
	−
3		Closing the cover.
		Closing the cover.
		Push the cover in the arrow direction until a click
		is heard.
In Case of Difficulty
Problem	Cause		Solution
Remote Control	Reverse placement of		Place the battery correctly into its cradle
Inoperative.	battery.		in the compartment.
	Dead battery.		Replace the battery with a new one.
	Remote Control not		Point the remote control directly toward
	pointed toward the head		your head unit or monitor.
	unit or monitor.
Specifications
Battery Type			AAA size batteries
Battery Quantity			2
Dimensions (W ⋅ H ⋅ D)			56 ⋅ 142.5 ⋅ 37 mm
			(2-1/4" ⋅ 5-5/8" ⋅ 1-7/16")
Weight (without battery)			72 gr (2.6 oz)
Accessories
Battery (AAA)			2
Remote Control Holder			1 set
Double-Sided Adhesive Tape			1 set
Screw			2

	~	1
	+	2
	+
		3
		4
	,	5
	-	6
	.	6
	.	7
	/	7
	/	8
	:	8
	:
	;	9
	<	!
		!
	=	"
	>	#
		$
	?
		%
	@
	[	&
	\	(
		)

]

Head Unit Control Mode

When operating the Head Unit, set the EXT DVD/ AUDIO/NAV. Switch to the “AUDIO” side.

1Remote Control Transmitter

2Status indicator for AUDIO mode

3—

4BAND button

5Radio mode: Preset Selection

Changer mode: Disc Selection

MP3 mode: Folder Select

Tape mode: Programme Sensor

6SOURCE button

7—

8VOLUME UP/DOWN button

9MUTE button

! —

" —

# —

$ —

% —

& —

( —

) —

~ —

+ A.PROC. button

, PLAY/PAUSE button

- Power ON/OFF button

Map/Arrow type Navigation Control Mode

When operating the navigation, set the EXT DVD/ AUDIO/NAV. Switch to the “NAV.” side.

1Remote Control Transmitter

2—

3—

4—

5—

6—

7MODE button

8VOLUME UP/DOWN button

(When connected with the Ai-NET Head Unit)

9MUTE button

(When connected with the Ai-NET Head Unit)

!MENU button

" button (MAP Type only)

# POS. button $ VOICE button % Numeric Keypad & OK/M.PT button

( —

) DEL. DEST. button

~ Status indicator for NAV. mode

+ — , —

- Power ON/OFF button

. — / —

: LIGHT button for Remote Controller

; Zoom (Wide/Detail) button (Map Type only) < Joystick/ENTER button

= LO.PT button > RETURN button ? ROUTE button

@ DEL./DEST. button

[ TEL. button (Map Type only)

\ —

] EXT DVD/AUDIO/NAV. Switch TV/MONI. button (Push)

Notes:

•Depending on the unit, some operations cannot be performed. For details, see the Owner’s Manual for the unit.

•After pressing the MODE button, press the following buttons while the status indicator is blinking: Numeric Keypad (0 to 9). DEL. button, OK button

AV Head Unit Control Mode

When operating the AV Head Unit, set the EXT DVD/AUDIO/NAV. Switch to the “AUDIO” side.

1Remote Control Transmitter

2Status indicator for AUDIO mode

3—

4BAND button

5Radio mode: Preset Selection

Changer mode: Disc Selection

6SOURCE button

7—

8VOLUME UP/DOWN, Audio Adjust button

9MUTE button

! —

" —

# —

$ —

% Function button (1 to 7)

& —

( —

) —

~ —

+ A.PROC. button

, Audio mode Selection (VOL./BASS/TRE/BAL/

FAD)

Press and hold for 2 seconds to LOUD ON/OFF

- Power ON/OFF button

. Radio mode: SEEK UP/DOWN

TV/Monitor Control Mode

When controlling the Monitor, press the EXT DVD/ AUDIO/NAV. Switch to activate the TV/MONI. mode.

Check which TV Tuner or Monitor functions corre- sponds to which buttons on the remote control and attach the appropriate seal (supplied).

Note: Depending on the unit, some operations cannot be performed. For details, see the Owner’s Manual for the unit.

DVD Player/DVD Changer

Control Mode

When operating the External DVD Player/DVD Changer, set the EXT DVD/AUDIO/NAV. Switch to the “EXT DVD” side.

1Remote Control Transmitter

2—

3Status indicator for EXT DVD mode

4—

5DVD Changer mode: Disc Selection

6Audio SOURCE button

(When connected with the Ai-NET Head Unit)

7L (STOP) button

8VOLUME UP/DOWN

(When connected with the Ai-NET Head Unit)

9MUTE button (When connected with the

Ai-NET Head Unit)

!MENU button

Press and hold for 2 seconds to display the

setup menu.

"Searching by Title/Chapter/elapsed time

Press and hold for 2 seconds to display the DVD menu/Title menu.

# —

$ —

% Numeric Keypad

& —

( ANGLE button

) SUB T. (Subtitle) button

Press and hold this for 2 seconds to turn the

subtitles ON and OFF.

~ —

+ A.PROC. button

(When connected with the Digital Audio Processor)

, Playback,

Press and hold for 2 seconds to playback the slow

motion.

- Power ON/OFF button

ALPINE ELECTRONICS, INC.	ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.	ALPINE ELECTRONICS FRANCE S.A.R.L.
Tokyo office: 1-1-8 Nishi Gotanda,	6-8 Fiveways Boulevarde Keysborough,	98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
Shinagawa-ku, Tokyo 141-8501, Japan		B.P. 50016 95945 Roissy
	Victoria 3173, Australia
Tel.: (03) 3494-1101		Charles de Gaulle Cedex, France
	Tel.: (03) 9769-0000
ALPINE ELECTRONICS OF AMERICA, INC.		Tel.: 01-48 63 89 89
	ALPINE ELECTRONICS GmbH
19145 Gramercy Place, Torrance,		ALPINE ELECTRONICS OF U.K., LTD.
	Kreuzerkamp 7, 40878 Ratingen, Germany
California 90501, U.S.A.	Tel.: 02102-45 50	13 Tanners Drive, Blakelands,
Tel.: 1-800-ALPINE-1 (1-800-257-4631)		Milton Keynes MK14 5BU, U.K.
	ALPINE ITALIA S.p.A.
ALPINE ELECTRONICS OF CANADA, INC.		Tel.: 01908-61 15 56
	Viale C. Colombo 8, 20090 Trezzano Sul
7300 Warden Ave., Suite 203, Markham,		ALPINE ELECTRONICS DE ESPAÑA, S.A.
	Naviglio (MI), Italy
Ontario L3R 9Z6, Canada		Portal de Gamarra 36, Pabellón 32
	Tel.: 02-48 47 81
Tel.: 1-800-ALPINE-1 (1-800-257-4631)		01013 Vitoria (Alava)-APDO 133, Spain

		Tel.: 945-283588
		68P20877Y89-O
		Printed in China (Y)

. Radio mode: SEEK UP/DOWN

CD/MD/Changer mode: Music Sensor,

BW/FF (press and hold)

Tape mode: REW/FF

/—

:LIGHT Button for Remote Controller ; Display Angle UP/DOWN button

< — = — > — ? — @ — [ — \ —

] EXT DVD/AUDIO/NAV. Switch TV/MONI. button (Push)

Note: Depending on the unit, some operations cannot be performed. For details, see the Owner’s Manual for the unit.

CD/MD/Changer mode: Music Sensor,

BW/FF (press and hold)

/V.SEL. button

:LIGHT button for Remote Controller ; Display Angle UP/DOWN button

< — = — > — ? — @ — [ — \ —

] EXT DVD/AUDIO/NAV. Switch TV/MONI. button (Push)

Note: Depending on the unit, some operations cannot be performed. For details, see the Owner’s Manual for the unit.

. Chapters and tracks skip

Press and hold for 2 seconds to BW/FF.

/ —

: LIGHT button for Remote Controller

; Display angle UP/DOWN button

(When connected with the Ai-NET Head Unit)

< Joystick/ENTER button

= —

> RETURN button

? —

@ —

[ —

\ AUDIO button

] EXT DVD/AUDIO/NAV. Switch

TV/MONI. button (Push)

Note: Depending on the unit, some operations cannot be performed. For details, see the Owner’s Manual for the unit.
