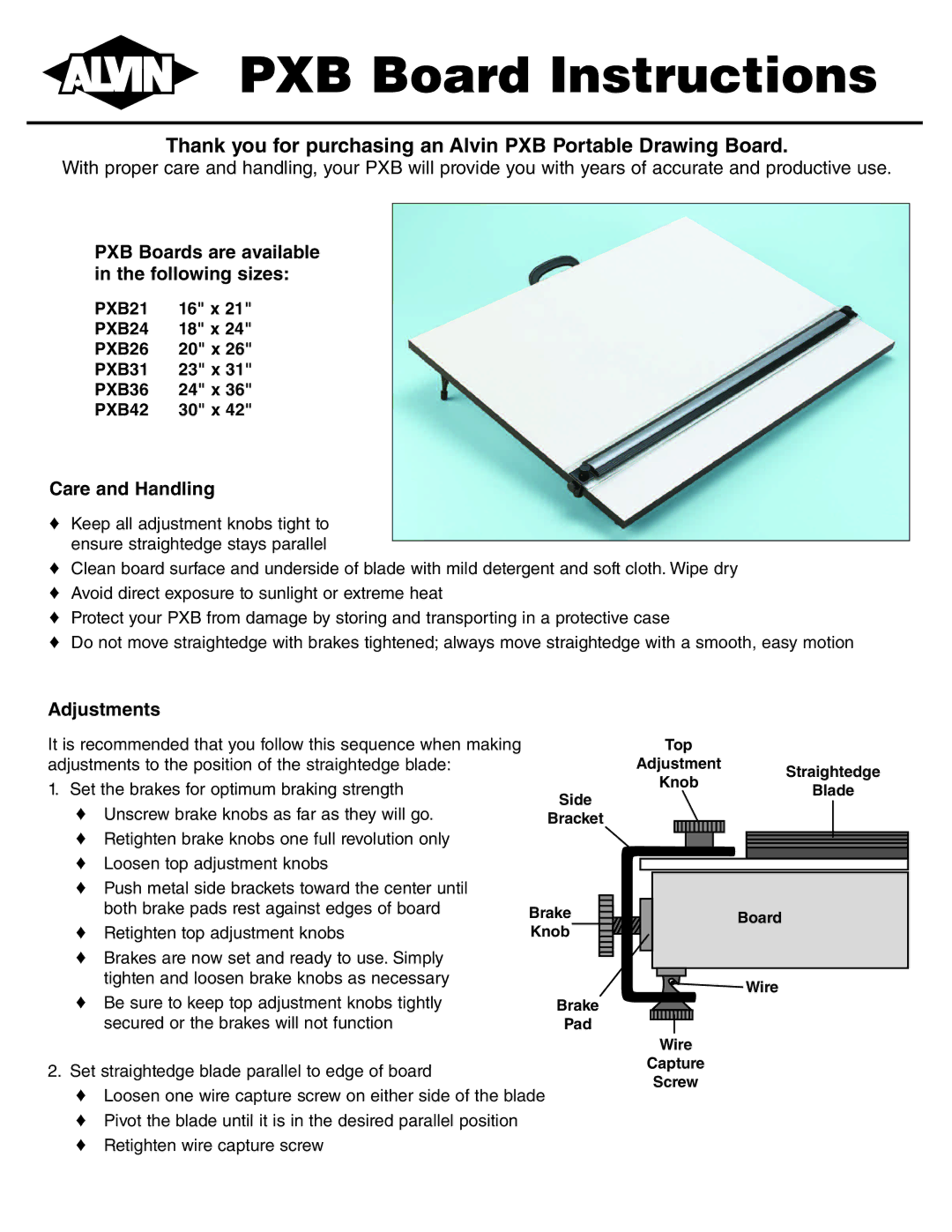

PXB Board Instructions

Thank you for purchasing an Alvin PXB Portable Drawing Board.

With proper care and handling, your PXB will provide you with years of accurate and productive use.

PXB Boards are available in the following sizes:

PXB21

16" x 21"

PXB24

18" x 24"

PXB26

20" x 26"

PXB31

23" x 31"

PXB36

24" x 36"

PXB42

30" x 42"

Care and Handling

Keep all adjustment knobs tight to ensure straightedge stays parallel

Clean board surface and underside of blade with mild detergent and soft cloth. Wipe dry

Avoid direct exposure to sunlight or extreme heat

Protect your PXB from damage by storing and transporting in a protective case

Do not move straightedge with brakes tightened; always move straightedge with a smooth, easy motion

Adjustments

It is recommended that you follow this sequence when making adjustments to the position of the straightedge blade:

1. Set the brakes for optimum braking strength

Side

Unscrew brake knobs as far as they will go.

Bracket

Retighten brake knobs one full revolution only



Loosen top adjustment knobs

Push metal side brackets toward the center until

both brake pads rest against edges of board

Brake









Retighten top adjustment knobs

Knob























Brakes are now set and ready to use. Simply

























tighten and loosen brake knobs as necessary









Be sure to keep top adjustment knobs tightly

Brake







secured or the brakes will not function

Pad





2.Set straightedge blade parallel to edge of board

Loosen one wire capture screw on either side of the blade

Pivot the blade until it is in the desired parallel position

Retighten wire capture screw

Top

Adjustment Straightedge

KnobBlade

Board

Wire

Wire

Capture

Screw
