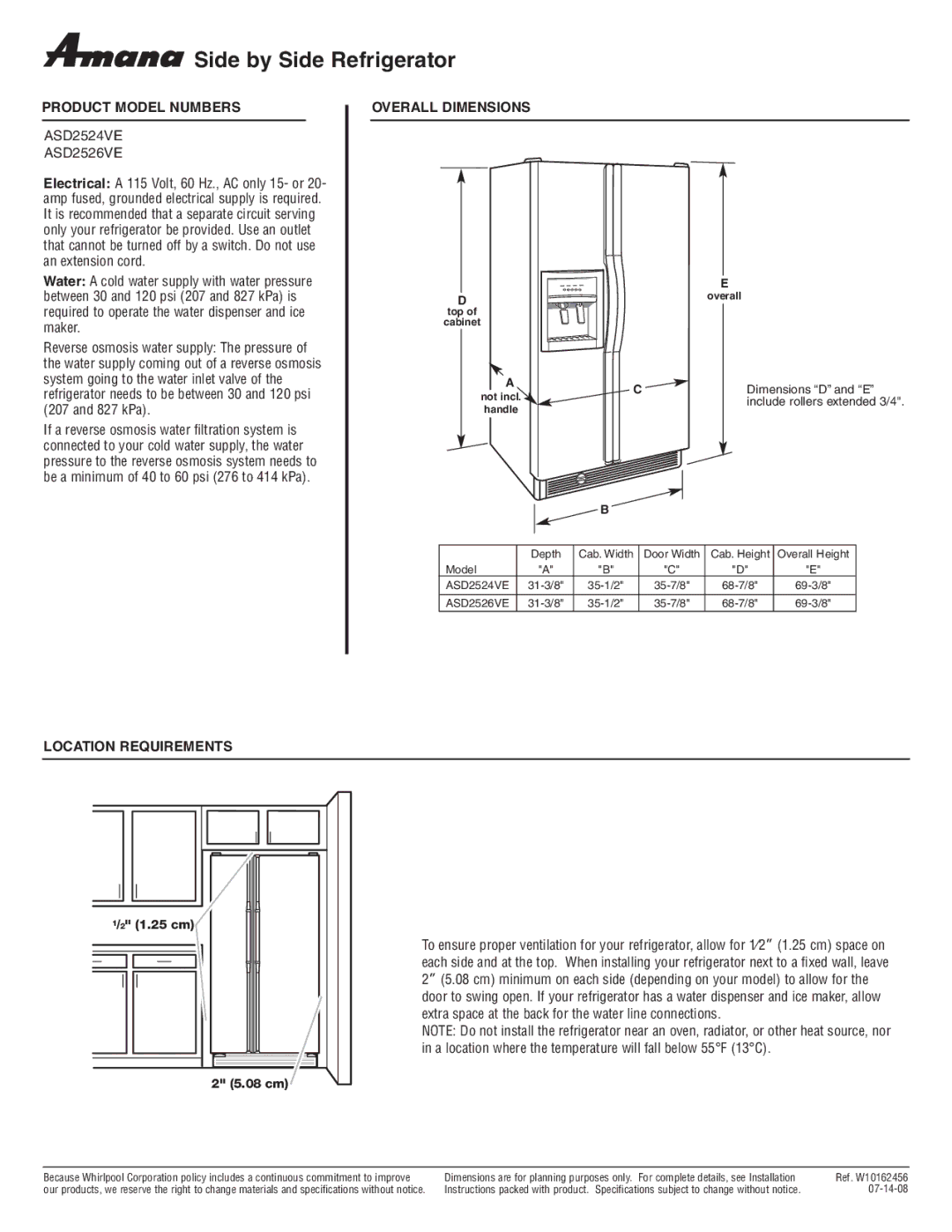

Side by Side Refrigerator

PRODUCT MODEL NUMBERS

ASD2524VE

ASD2526VE

OVERALL DIMENSIONS

Electrical: A 115 Volt, 60 Hz., AC only 15- or 20- amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

Water: A cold water supply with water pressure between 30 and 120 psi (207 and 827 kPa) is required to operate the water dispenser and ice maker.

Reverse osmosis water supply: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

top of

cabinet

not incl. handle

overall


C		Dimensions “D” and “E”
		include rollers extended 3/4".
		include rollers extended 3/4".

	Depth	Cab. Width	Door Width	Cab. Height	Overall Height
Model	"A"	"B"	"C"	"D"	"E"
ASD2524VE	31-3/8"	35-1/2"	35-7/8"	68-7/8"	69-3/8"

ASD2526VE	31-3/8"	35-1/2"	35-7/8"	68-7/8"	69-3/8"

LOCATION REQUIREMENTS

1/2" (1.25 cm)

2" (5.08 cm)

To ensure proper ventilation for your refrigerator, allow for 1⁄2” (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall, leave 2” (5.08 cm) minimum on each side (depending on your model) to allow for the door to swing open. If your refrigerator has a water dispenser and ice maker, allow extra space at the back for the water line connections.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor in a location where the temperature will fall below 55°F (13°C).

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation	Ref. W10162456
Instructions packed with product. Specifications subject to change without notice.	07-14-08

ASD2524VE, ASD2526VE specifications

The Amana ASD2526VE and ASD2524VE are part of Amana's innovative line of side-by-side refrigerators, designed to provide convenience, style, and functionality to modern households. These models not only embody the sleek aesthetic that consumers are looking for, but they also come equipped with a range of advanced features and technologies that enhance user experience and food preservation.

One of the standout features of both the ASD2526VE and ASD2524VE is their impressive storage capacity. With adjustable shelves, crisper bins, and easy-access compartments, these refrigerators maximize space and allow for optimal organization. The robust shelving system can easily accommodate a variety of food items, from large containers to smaller packages, ensuring that everything is within reach.

Both models also feature Amana’s advanced cooling technology, which includes a dual evaporator system. This system helps maintain optimal humidity levels in the refrigerator while keeping the freezer compartment separate, preventing the transfer of odors and ensuring that food stays fresher longer. The precise temperature control helps reduce fluctuations, providing consistent cooling performance.

Another significant characteristic of the Amana ASD2526VE and ASD2524VE is their energy efficiency. Equipped with Energy Star certification, these refrigerators are designed to reduce energy consumption while still delivering optimal performance. Users can enjoy the benefits of a spacious and high-performing refrigerator without worrying excessively about electricity bills.

To further enhance convenience, both models feature an integrated water and ice dispenser located on the front exterior. This user-friendly feature provides easy access to chilled water and fresh ice, promoting hydration and making it easier to entertain guests. The dispensers are designed for easy cleanup, reducing spillage and mess.

Design-wise, both models offer a modern aesthetic with stainless steel finishes, making them a stylish addition to any kitchen décor. They are available in multiple color options, allowing homeowners to choose a model that complements their individual style.

Overall, the Amana ASD2526VE and ASD2524VE offer a comprehensive combination of advanced technology, generous storage capacity, energy efficiency, and stylish design, making them practical choices for anyone looking to upgrade their kitchen appliances. With these models, Amana continues its commitment to quality and innovation in home refrigeration.
