SPECIFICATIONS

Model Number

ADSPOT . . . . . . . . . . . . . . . . . . . . .240 VAC (field changeable to 120 VAC) Transformer jumpers are field changeable to support either 120 VAC or 240 VAC

ADSPOT is used with any American Dynamics dome or fixed camera

Electrical

Power Source . . . . . . . . . . . . . . . . .100-120 VAC or 200-240 VAC @ 50/60 Hz Operational Limits . . . . . . . . . . . .90-135 VAC or 180-265 VAC @50/60 Hz Input Current . . . . . . . . . . . . . . . .1.0A/0.5A

Output . . . . . . . . . . . . . . . . . . . . . . .24 VAC, 2.5A max. UL Listed Class 2

Certified Limited Power Source

Mechanical

Dimensions (H x W x D)	.175 x 125 x 75 mm
	(6.9 x 4.9 x 3.0 in)
Weight	.3.7 kg (8.2 lbs)
Enclosure Material	.Impact-resistant polycarbonate
Color	.Light gray
Wall Mounting Options	.Concrete, wood or sheet rock
Mounting Area (H x W)	.281 x 200 mm
	(11.1 x 7.9 in)
Cover Fasteners	.Four captive screws
Cable Access Knockouts	.Eight 21 mm or 15.5 mm
	(0.83 in or 0.61 in)
	Four 29 mm or 23 mm
	(1.14 in or 0.91 in)

Environmental

Weatherproof Standard . . . . . . . .NEMA 4, IP66

Operating Temperature . . . . . . . .-40˚ to 50˚ C (-40˚ to 122˚ F) Storage Temperature . . . . . . . . . .-40˚ to 50˚ C (-40˚ to 122˚ F) Humidity . . . . . . . . . . . . . . . . . . . . .0% to 95% RH (non condensing)

Regulatory

Safety	.UL 60950
	CSA C22.2 No. 60950
	EN60950
	IEC 60950

Product specifications and availability subject to change without notice. Certain product names mentioned herein may be trade names and/or registered trademarks of other companies.

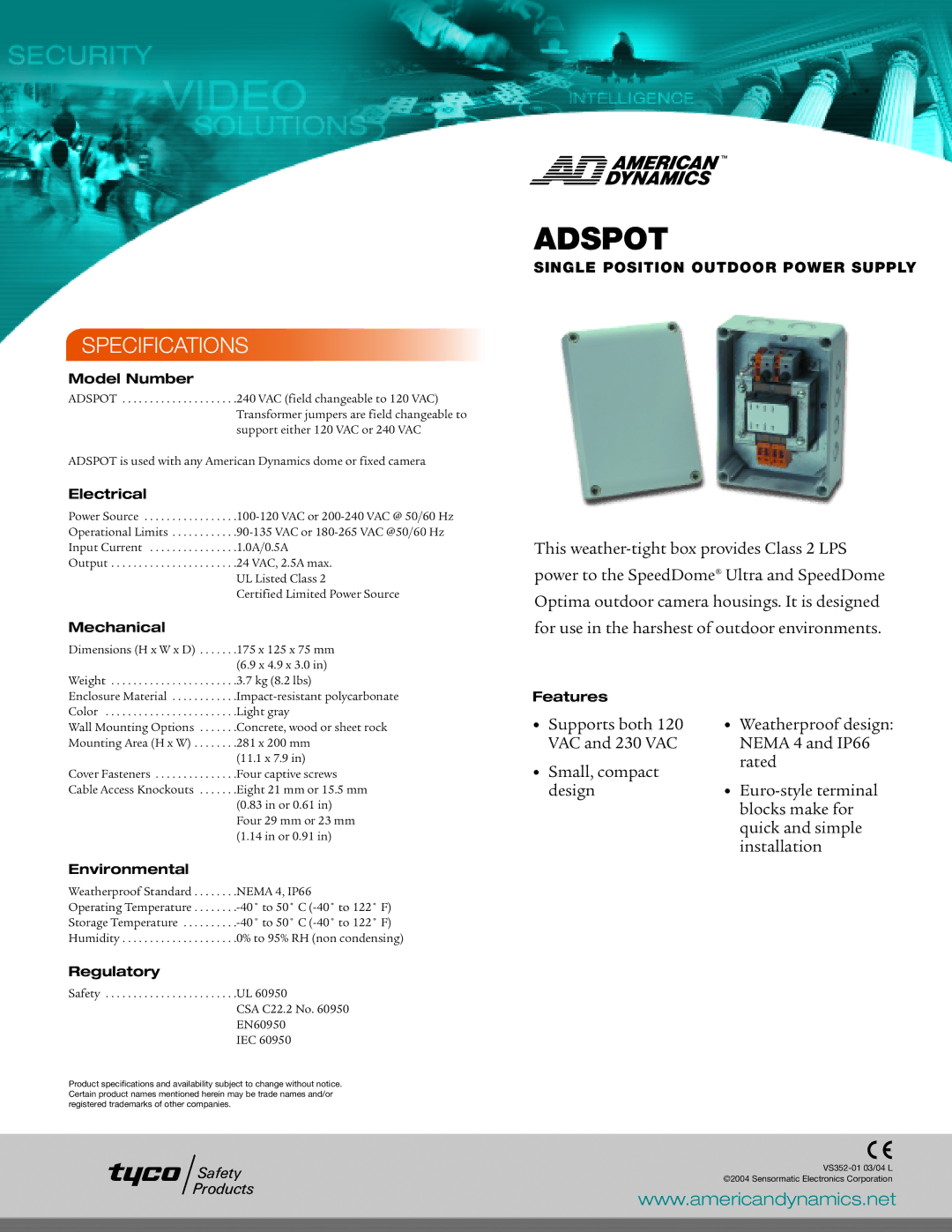

ADSPOT

SINGLE POSITION OUTDOOR POWER SUPPLY

This weather-tight box provides Class 2 LPS

power to the SpeedDome® Ultra and SpeedDome

Optima outdoor camera housings. It is designed

for use in the harshest of outdoor environments.

Features
• Supports both 120	• Weatherproof design:
VAC and 230 VAC	NEMA 4 and IP66
• Small, compact	rated
	• Euro-style terminal
design
	blocks make for
	quick and simple
	installation

VS352-01 03/04 L ©2004 Sensormatic Electronics Corporation
