American Standard 0321.026 dimensions Declyn Wall-Hunglavatory, Soap depression Faucet ledge

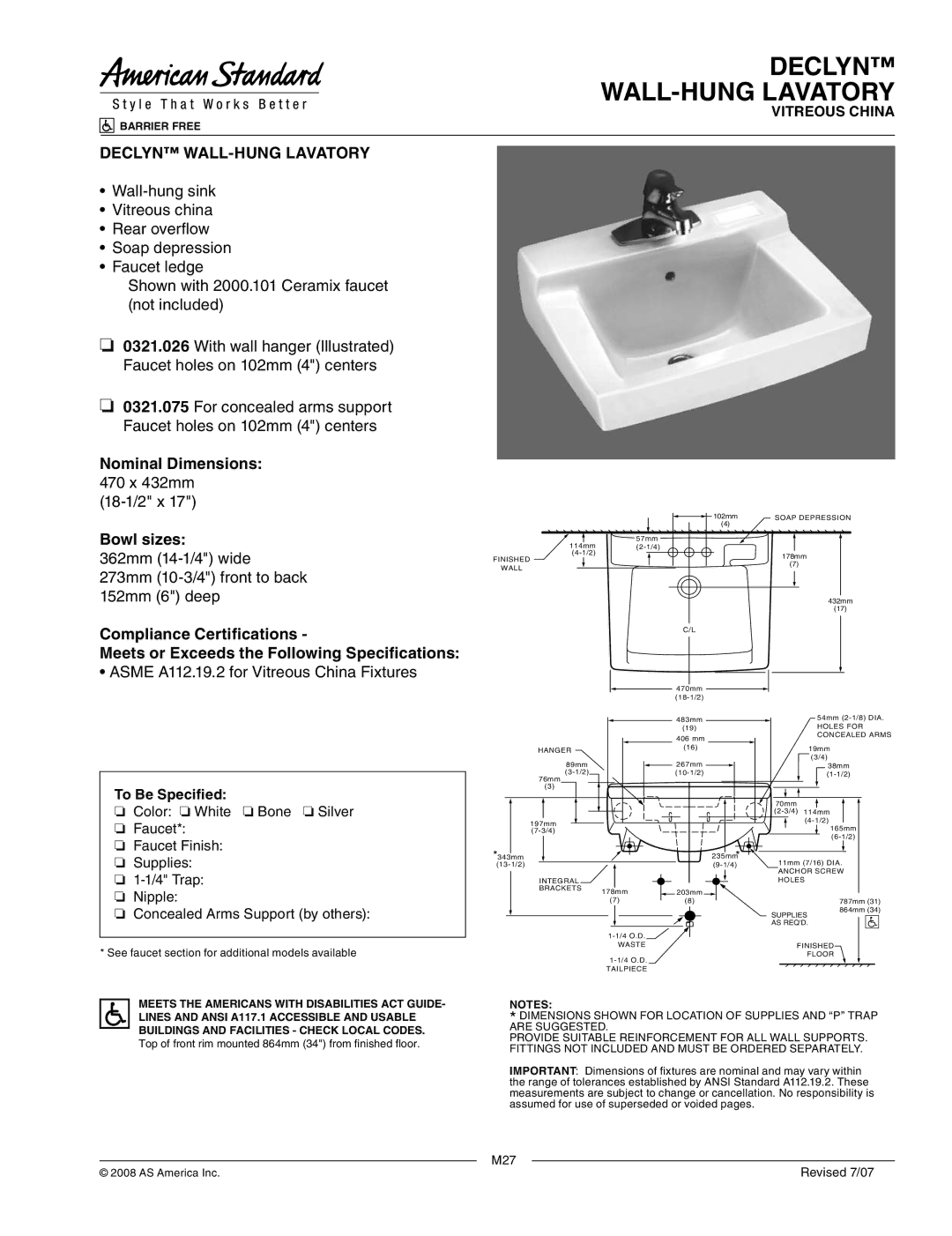

DECLYN™

WALL-HUNG LAVATORY

VITREOUS CHINA

BARRIER FREE

DECLYN™ WALL-HUNG LAVATORY

•Wall-hung sink

•Vitreous china

•Rear overflow

•Soap depression

•Faucet ledge

Shown with 2000.101 Ceramix faucet (not included)

❏0321.026 With wall hanger (Illustrated) Faucet holes on 102mm (4") centers

❏0321.075 For concealed arms support Faucet holes on 102mm (4") centers

Nominal Dimensions: 470 x 432mm

(18-1/2" x 17")

Bowl sizes:

362mm (14-1/4") wide 273mm (10-3/4") front to back 152mm (6") deep

Compliance Certifications -

Meets or Exceeds the Following Specifications:

• ASME A112.19.2 for Vitreous China Fixtures

To Be Specified:

❏Color: ❏ White ❏ Bone ❏ Silver

❏Faucet*:

❏Faucet Finish:

❏Supplies:

❏1-1/4" Trap:

❏Nipple:

❏Concealed Arms Support (by others):

* See faucet section for additional models available

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDE- LINES AND ANSI A117.1 ACCESSIBLE AND USABLE BUILDINGS AND FACILITIES - CHECK LOCAL CODES.

Top of front rim mounted 864mm (34") from finished floor.

© 2008 AS America Inc.

	102mm	SOAP DEPRESSION
	(4)
114mm	57mm
	(2-1/4)
(4-1/2)		178mm
FINISHED
		(7)
WALL
		432mm
		(17)
	C/L

	470mm
	(18-1/2)
	483mm	54mm (2-1/8) DIA.
	(19)	HOLES FOR
	406 mm	CONCEALED ARMS
HANGER	(16)	19mm
89mm	267mm	(3/4)
		38mm
(3-1/2)	(10-1/2)	(1-1/2)
76mm
(3)
	70mm
	(2-3/4)	114mm
197mm		(4-1/2)
		165mm
(7-3/4)
		(6-1/2)

*343mm		235mm
		*	11mm (7/16) DIA.
(13-1/2)		(9-1/4)
			ANCHOR SCREW
INTEGRAL			HOLES
BRACKETS	178mm	203mm
	(7)	(8)		787mm (31)
			SUPPLIES	864mm (34)
			AS REQ'D.
	1-1/4 O.D.
	WASTE		FINISHED
	1-1/4 O.D.		FLOOR
	TAILPIECE

NOTES:

*DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P” TRAP ARE SUGGESTED.

PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS. FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2. These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

M27

Revised 7/07
