TOWNSEND

PEDESTAL SINK

VITREOUS CHINA

TOWNSEND PEDESTAL SINK

Vitreous china

Turn-of-the-century detailing on lavatory and pedestal

Front overflow

Supplied with mounting kit

Faucet ledge with large deck area (faucet not included)

0555.801 Faucet holes on 203mm (8") centers (Illustrated)

0555.401 Faucet holes on 102mm (4") centers

Nominal Dimensions:

619 x 495 x 900mm

(24-3/8" x 19-1/2" x 35-7/16")

0555.108 Lavatory slab-203mm (8") centers

0555.104 Lavatory slab-102mm (4") centers

734906-401Pedestal only

89mm

203mm

FINISHED

(8)

WALL

(3-1/2)





212mm

(8-1/2)

Bowl sizes:



489mm (19-1/4") wide,

PEDESTAL ANCHORING



289mm (11-3/8") front to back,

SCREW HOLES

8mm (5/16) DIA.



146mm (5-3/4") deep



Compliance Certifications -

Meets or Exceeds the Following Specifications:

• ASME A112.19.2M for Vitreous China Fixtures

203mm

(8)

619mm (24-3/8)

260mm (10-1/4)

REF.

495mm (19-1/2)

13mm (1/2) DIA.

HOLES FOR ANCHOR BOLTS

51mm

(2)

To Be Specified:

Color: White

Faucet Finish:

Supplies:

1-1/4" Trap:

Nipple:

* See faucet section for additional models available



203mm

SUPPLIES AS

178mm



(8)



REQUIRED

(7)





*578mm



1-1/4 O.D.



(22-3/4)



WASTE

900mm



*521mm





(35-7/16)



(20-1/2)

1-1/4 O.D.













TAILPIECE







FINISHED





FLOOR





229mm

PEDESTAL





SIDE SECTION





(9)



NOTES:



* DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TRAPS



ARE SUGGESTED.



PEDESTAL ANCHORING SCREWS NOT INCLUDED.



SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST



BE TAKEN FROM FIXTURE.



FITTING NOT INCLUDED AND MUST BE ORDERED SEPARATELY.



PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.



INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.



IMPORTANT: Dimensions of fixtures are nominal and may vary within the



range of tolerance established by ANSI Standard A112.19.2



These measurements are subject to change or cancellation. No responsibility



is assumed for use of superseded or voided pages.



J9



© 2008 AS America Inc.

Revised 2/08



Page 1
Image 1

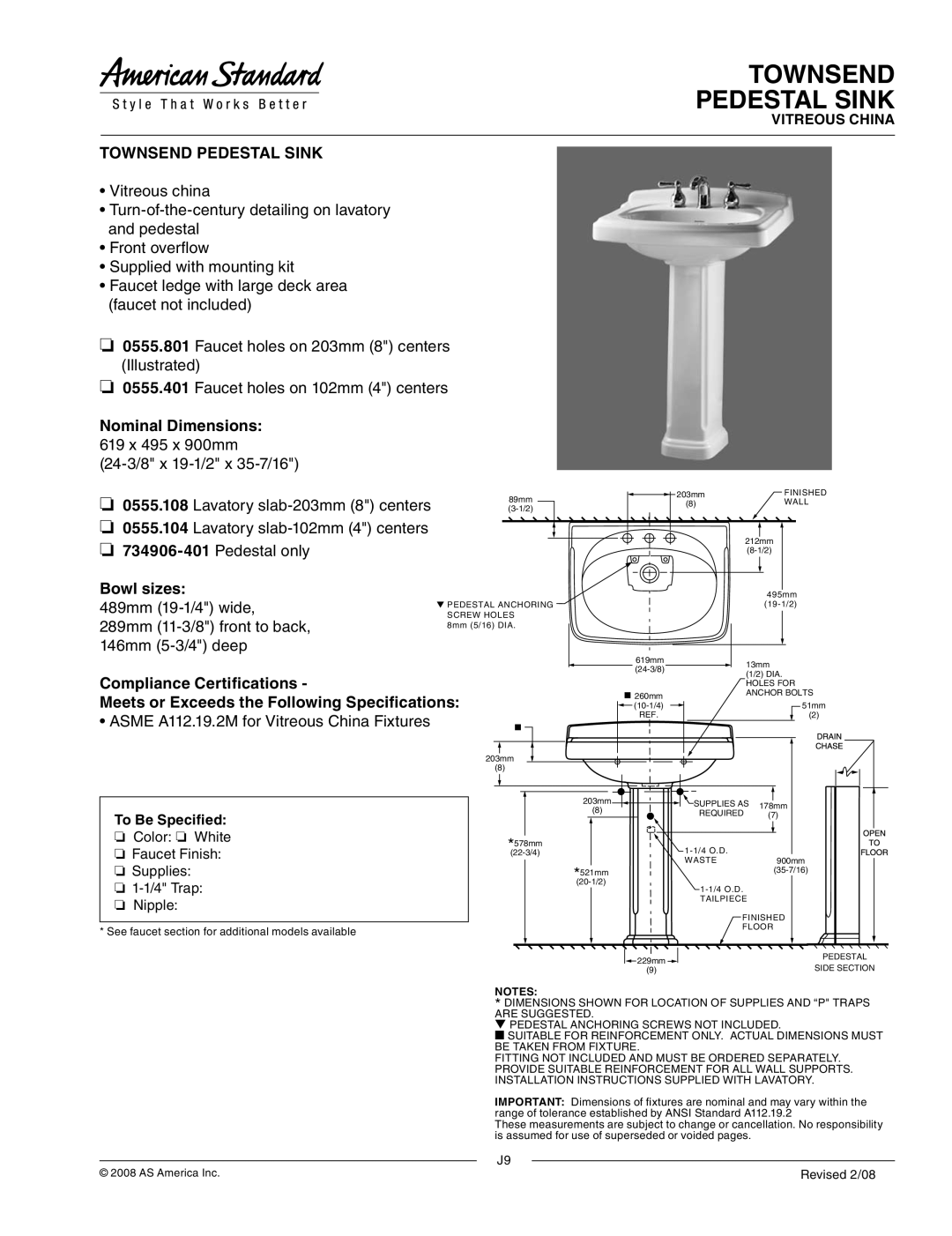

American Standard 0555.108, 0555.104, 0555.401, 0555.801 dimensions Townsend Pedestal Sink, Nominal Dimensions, Bowl sizes
