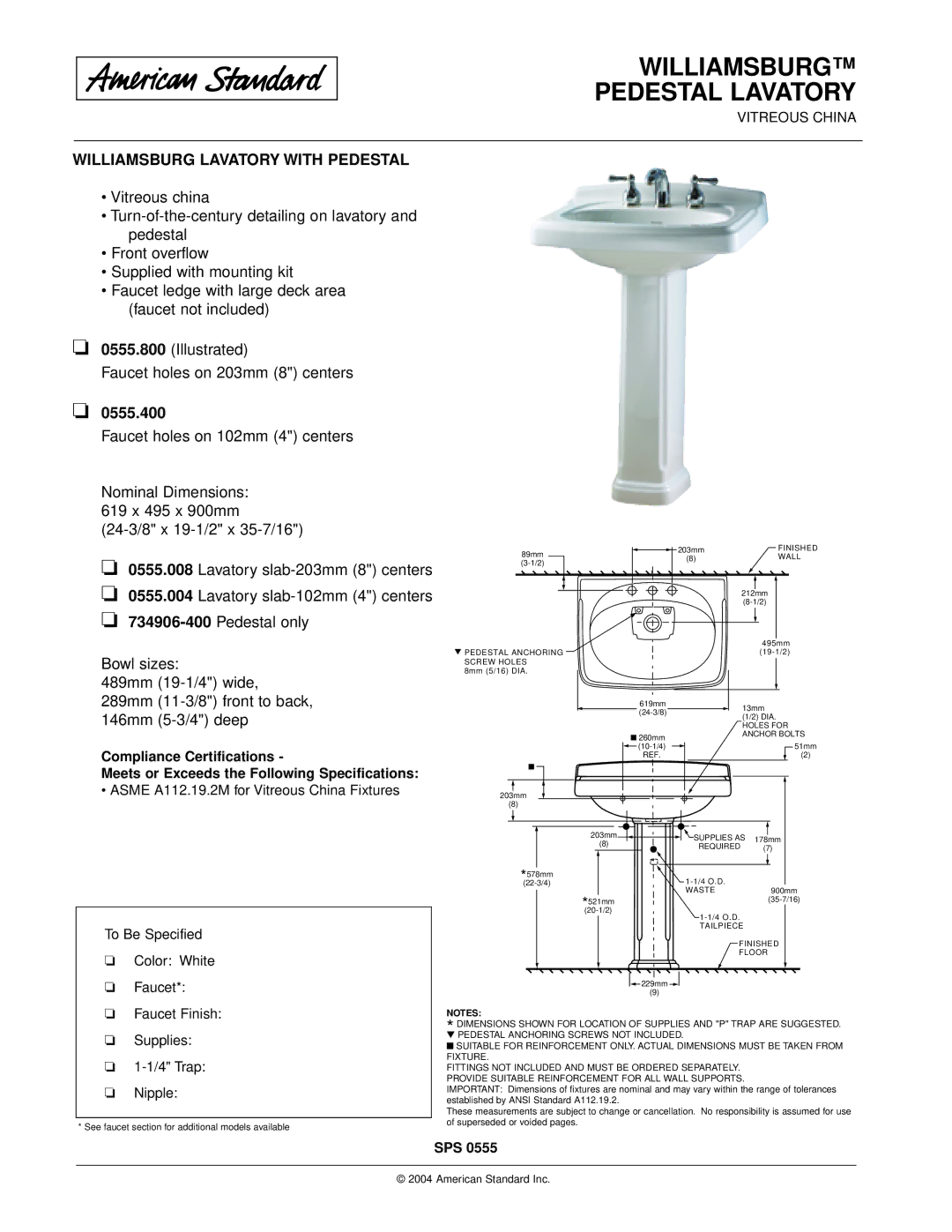

American Standard 0555.400, 0555.800 dimensions Williamsburg Pedestal Lavatory

WILLIAMSBURG™ PEDESTAL LAVATORY

VITREOUS CHINA

WILLIAMSBURG LAVATORY WITH PEDESTAL

•Vitreous china

•Turn-of-the-century detailing on lavatory and pedestal

•Front overflow

•Supplied with mounting kit

•Faucet ledge with large deck area

(faucet not included)

❏ 0555.800 (Illustrated)

Faucet holes on 203mm (8") centers

❏ 0555.400

Faucet holes on 102mm (4") centers

Nominal Dimensions:

619 x 495 x 900mm

(24-3/8" x 19-1/2" x 35-7/16")

❏ 0555.008 Lavatory slab-203mm (8") centers

89mm		203mm	FINISHED
	(8)		WALL
(3-1/2)

❏	0555.004 Lavatory slab-102mm (4") centers
❏	734906-400Pedestal only

Bowl sizes:

489mm (19-1/4") wide, 289mm (11-3/8") front to back, 146mm (5-3/4") deep

Compliance Certifications -

Meets or Exceeds the Following Specifications:

• ASME A112.19.2M for Vitreous China Fixtures

▼PEDESTAL ANCHORING SCREW HOLES

8mm (5/16) DIA.

■

203mm

(8)

619mm (24-3/8)

■260mm (10-1/4)

REF.

212mm

(8-1/2)

495mm (19-1/2)

13mm (1/2) DIA.

HOLES FOR ANCHOR BOLTS

51mm

(2)

203mm	SUPPLIES AS	178mm
(8)
	REQUIRED	(7)

To Be Specified

❏Color: White

❏Faucet*:

❏Faucet Finish:

❏Supplies:

❏1-1/4" Trap:

❏Nipple:

*See faucet section for additional models available

*578mm	1-1/4 O.D.
(22-3/4)	WASTE	900mm
	*521mm	(35-7/16)
	(20-1/2)
	1-1/4 O.D.
	TAILPIECE
	FINISHED
	FLOOR
	229mm
	(9)

NOTES:

*DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE SUGGESTED. ▼ PEDESTAL ANCHORING SCREWS NOT INCLUDED.

■ SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST BE TAKEN FROM FIXTURE.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY. PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2.

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

SPS 0555

© 2004 American Standard Inc.
