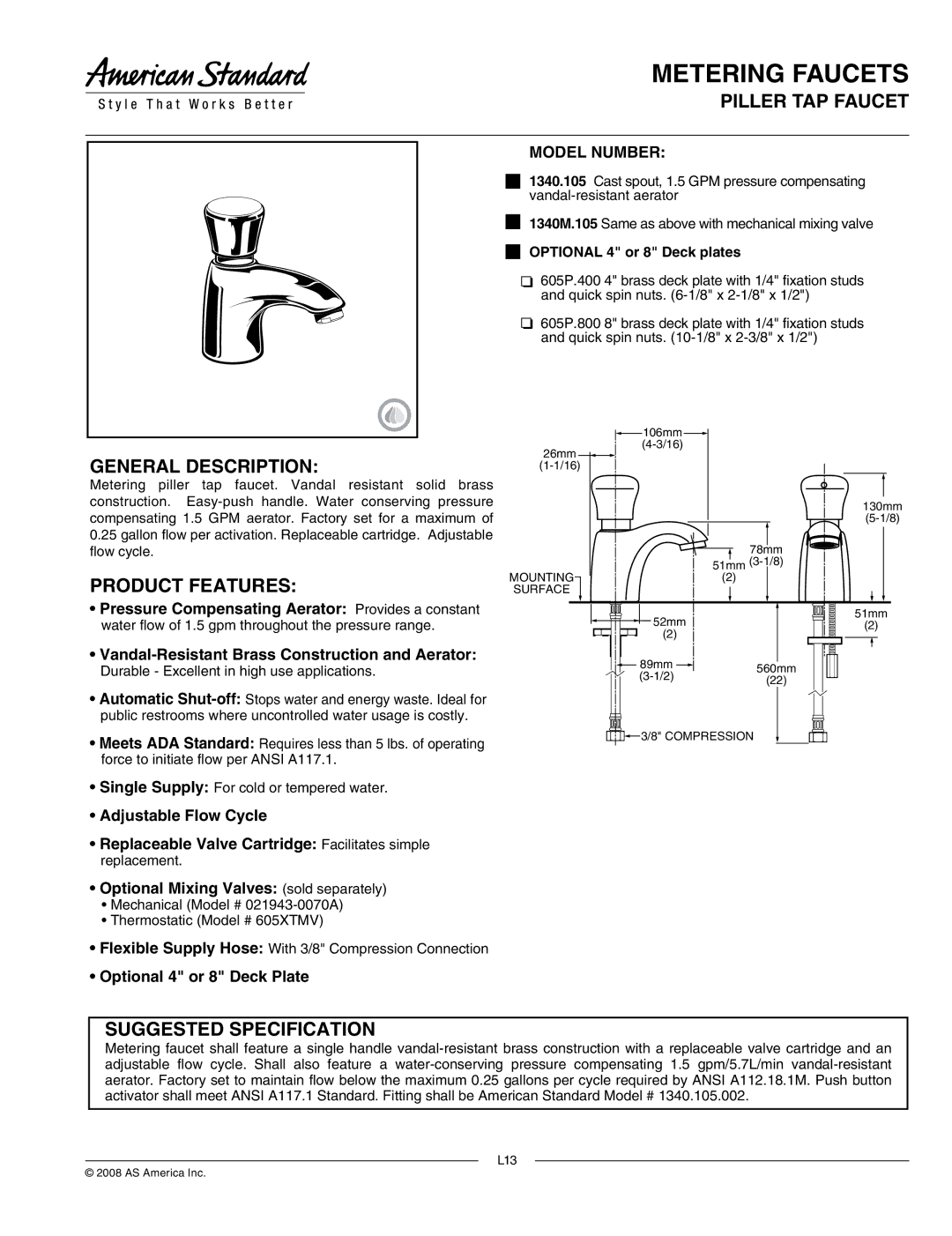

METERING FAUCETS

PILLER TAP FAUCET

MODEL NUMBER:

1340.105 Cast spout, 1.5 GPM pressure compensating vandal-resistant aerator

1340M.105 Same as above with mechanical mixing valve

OPTIONAL 4" or 8" Deck plates

605P.400 4" brass deck plate with 1/4" fixation studs and quick spin nuts. (6-1/8" x 2-1/8" x 1/2")

605P.800 8" brass deck plate with 1/4" fixation studs and quick spin nuts. (10-1/8" x 2-3/8" x 1/2")

GENERAL DESCRIPTION:

Metering piller tap faucet. Vandal resistant solid brass construction. Easy-push handle. Water conserving pressure compensating 1.5 GPM aerator. Factory set for a maximum of

0.25gallon flow per activation. Replaceable cartridge. Adjustable flow cycle.

PRODUCT FEATURES:

Pressure Compensating Aerator: Provides a constant water flow of 1.5 gpm throughout the pressure range.

Vandal-Resistant Brass Construction and Aerator:

Durable - Excellent in high use applications.

Automatic Shut-off:Stops water and energy waste. Ideal for public restrooms where uncontrolled water usage is costly.

Meets ADA Standard: Requires less than 5 lbs. of operating force to initiate flow per ANSI A117.1.



106mm





26mm

(4-3/16)











(1-1/16)













130mm







(5-1/8)





78mm







51mm (3-1/8)



MOUNTING



(2)



SURFACE









52mm



51mm





(2)



(2)











89mm

560mm





(3-1/2)





(22)











3/8" COMPRESSION



Single Supply: For cold or tempered water.

Adjustable Flow Cycle

Replaceable Valve Cartridge: Facilitates simple replacement.

Optional Mixing Valves: (sold separately)

Mechanical (Model # 021943-0070A)

Thermostatic (Model # 605XTMV)

Flexible Supply Hose: With 3/8" Compression Connection

Optional 4" or 8" Deck Plate

SUGGESTED SPECIFICATION

Metering faucet shall feature a single handle vandal-resistant brass construction with a replaceable valve cartridge and an adjustable flow cycle. Shall also feature a water-conserving pressure compensating 1.5 gpm/5.7L/min vandal-resistant aerator. Factory set to maintain flow below the maximum 0.25 gallons per cycle required by ANSI A112.18.1M. Push button activator shall meet ANSI A117.1 Standard. Fitting shall be American Standard Model # 1340.105.002.

L13

© 2008 AS America Inc.

Page 1
