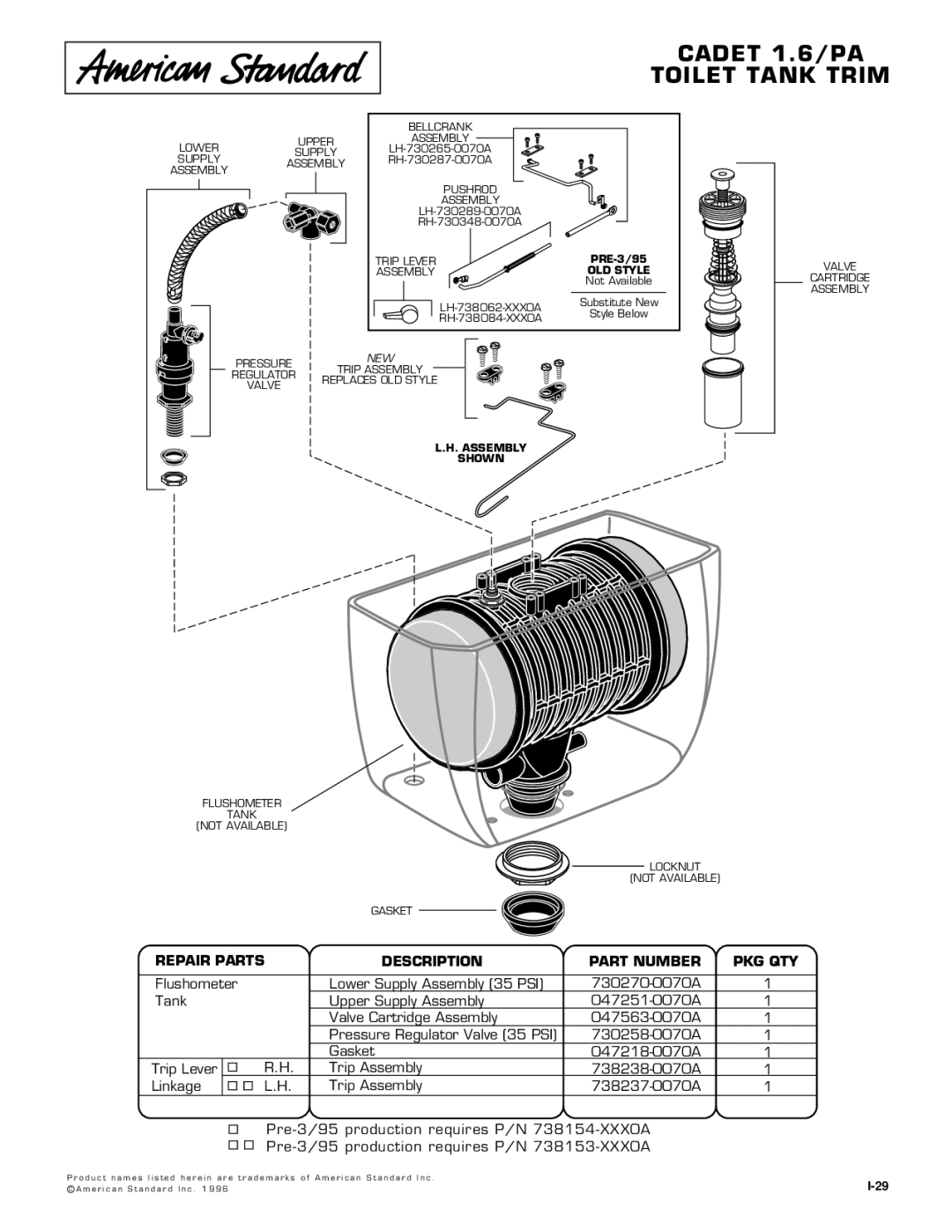

American Standard 2292.100, 2168.100 Cadet 1.6/PA, Toilet Tank Trim, OLD Style, Assembly Shown

								CADET 1.6/PA
							TOILET TANK TRIM
						BELLCRANK
LOWER				UPPER		ASSEMBLY
						LH-730265-0070A
			SUPPLY
SUPPLY						RH-730287-0070A
		ASSEMBLY
ASSEMBLY
						PUSHROD
						ASSEMBLY
						LH-730289-0070A
						RH-730348-0070A
						TRIP LEVER	PRE-3/95	VALVE
						ASSEMBLY	OLD STYLE
							Not Available	CARTRIDGE
								ASSEMBLY
						LH-738062-XXX0A	Substitute New
							Style Below
						RH-738084-XXX0A
	PRESSURE					NEW
					TRIP ASSEMBLY
	REGULATOR
				REPLACES OLD STYLE
	VALVE
						L.H. ASSEMBLY
						SHOWN

FLUSHOMETER

TANK

(NOT AVAILABLE)

LOCKNUT

(NOT AVAILABLE)

GASKET

	REPAIR PARTS		DESCRIPTION	PART NUMBER	PKG QTY
	Flushometer		Lower Supply Assembly (35 PSI)	730270-0070A	1
	Tank		Upper Supply Assembly	047251-0070A	1
			Valve Cartridge Assembly	047563-0070A	1
			Pressure Regulator Valve (35 PSI)	730258-0070A	1
			Gasket	047218-0070A	1
	Trip Lever	R.H.	Trip Assembly	738238-0070A	1
	Linkage	L.H.	Trip Assembly	738237-0070A	1
		Pre-3/95 production requires P/N 738154-XXX0A
		Pre-3/95 production requires P/N 738153-XXX0A
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c .						I-29
C A m e r i c a n S t a n d a r d I n c . 1 9 9 6
