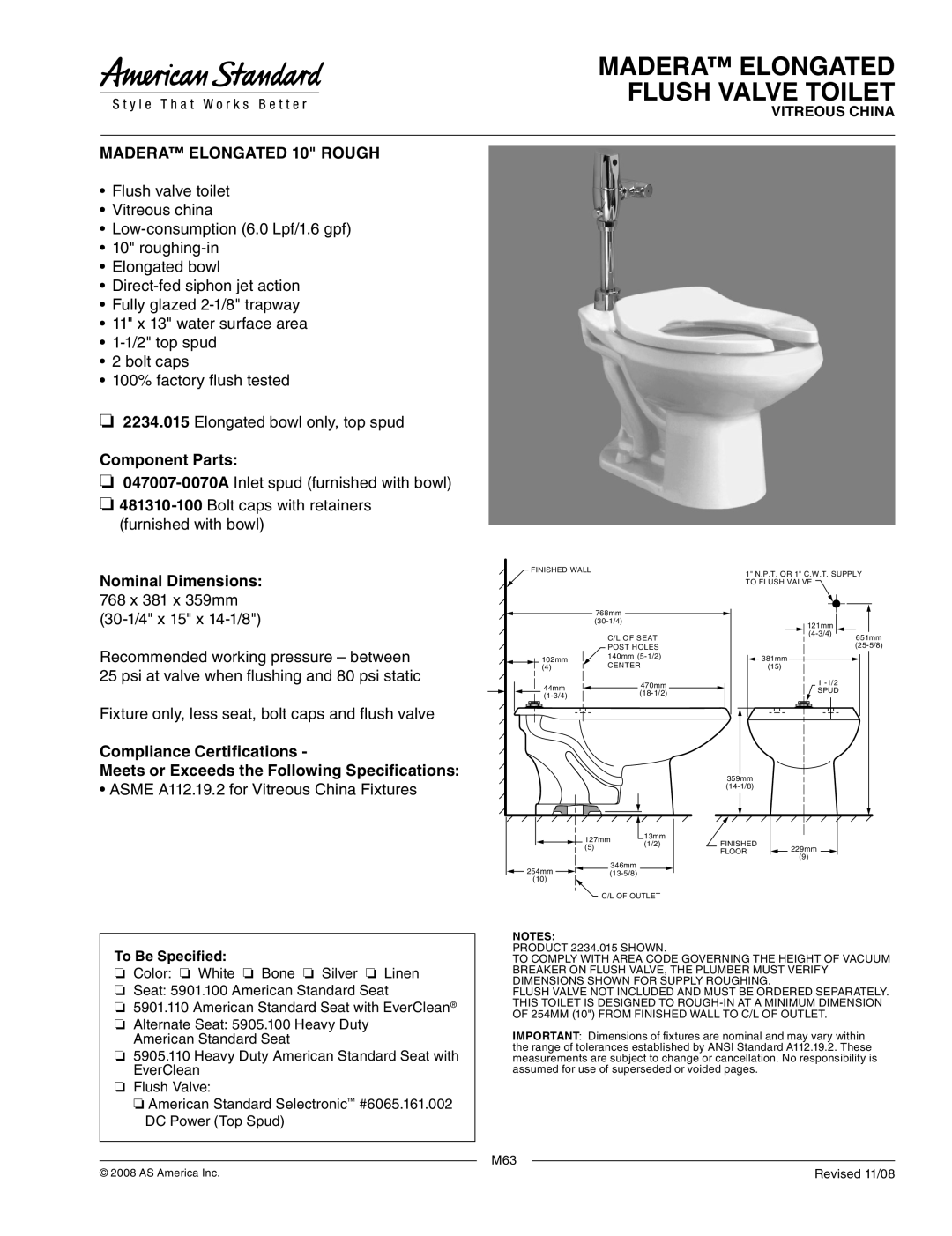

MADERA™ ELONGATED

FLUSH VALVE TOILET

VITREOUS CHINA

MADERA™ ELONGATED 10" ROUGH

Flush valve toilet

Vitreous china

Low-consumption (6.0 Lpf/1.6 gpf)

10" roughing-in

Elongated bowl

Direct-fed siphon jet action

Fully glazed 2-1/8" trapway

11" x 13" water surface area

1-1/2" top spud

2 bolt caps

100% factory flush tested

2234.015 Elongated bowl only, top spud

Component Parts:

047007-0070AInlet spud (furnished with bowl)

481310-100Bolt caps with retainers (furnished with bowl)

Nominal Dimensions:

768 x 381 x 359mm

(30-1/4" x 15" x 14-1/8")

Recommended working pressure – between 25 psi at valve when flushing and 80 psi static

Fixture only, less seat, bolt caps and flush valve

Compliance Certifications -

Meets or Exceeds the Following Specifications:

• ASME A112.19.2 for Vitreous China Fixtures

FINISHED WALL





1" N.P.T. OR 1" C.W.T. SUPPLY

















TO FLUSH VALVE







768mm













(30-1/4)





121mm



















C/L OF SEAT



(4-3/4)

651mm













POST HOLES





(25-5/8)

102mm



140mm (5-1/2)



381mm



(4)



CENTER



(15)



44mm





470mm



1 -1/2









SPUD







(18-1/2)





(1-3/4)







































359mm













(14-1/8)







127mm

13mm

FINISHED







(1/2)







(5)



229mm









FLOOR











(9)















254mm



346mm











(13-5/8)









(10)

















C/L OF OUTLET







To Be Specified:

Color: White Bone Silver Linen

Seat: 5901.100 American Standard Seat

5901.110 American Standard Seat with EverClean®

Alternate Seat: 5905.100 Heavy Duty American Standard Seat

5905.110 Heavy Duty American Standard Seat with EverClean

Flush Valve:

American Standard Selectronic#6065.161.002 DC Power (Top Spud)

© 2008 AS America Inc.

NOTES:

PRODUCT 2234.015 SHOWN.

TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM BREAKER ON FLUSH VALVE, THE PLUMBER MUST VERIFY DIMENSIONS SHOWN FOR SUPPLY ROUGHING.

FLUSH VALVE NOT INCLUDED AND MUST BE ORDERED SEPARATELY. THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 254MM (10") FROM FINISHED WALL TO C/L OF OUTLET.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2. These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

M63

Revised 11/08

Page 1
