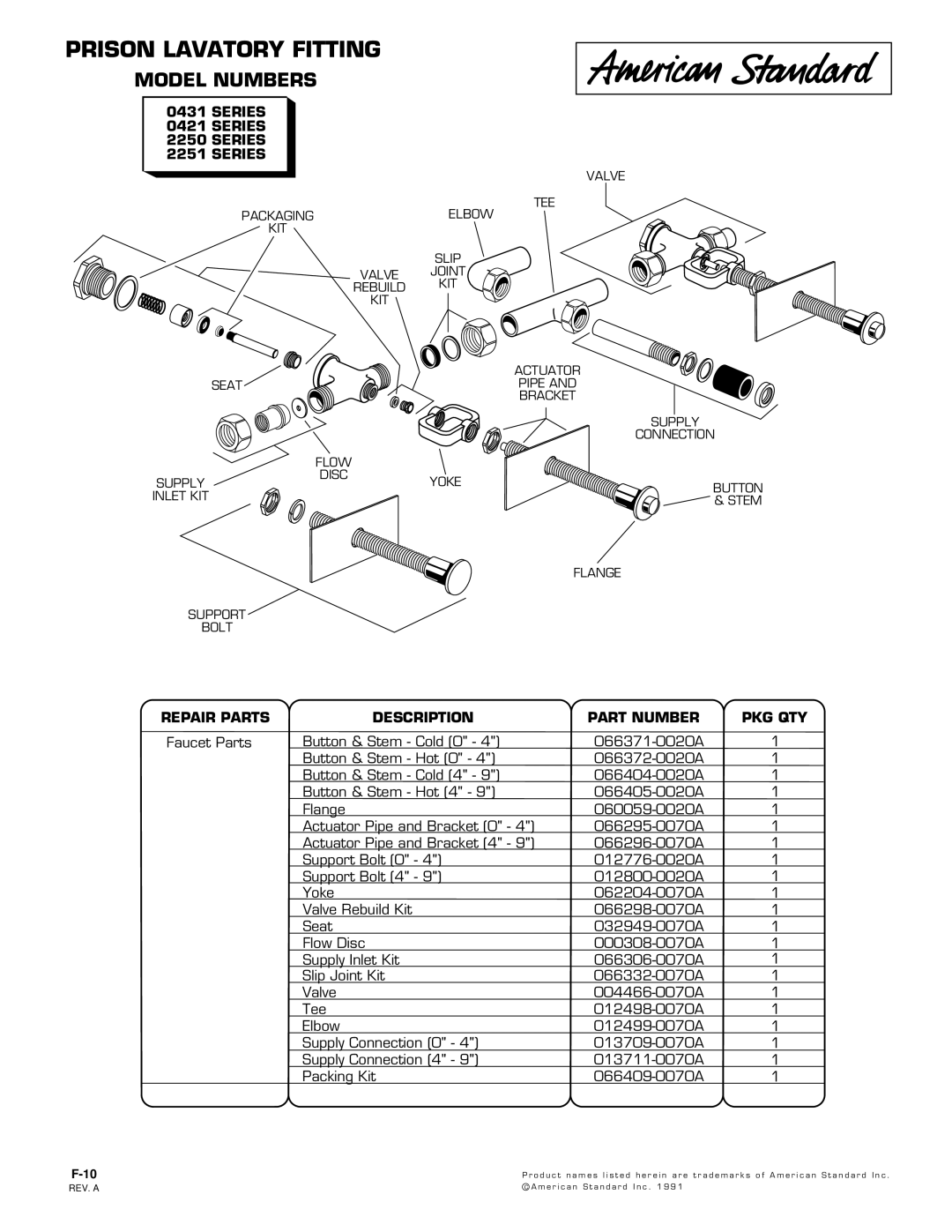

PRISON LAVATORY FITTING

MODEL NUMBERS

0431 SERIES

0421 SERIES

2250 SERIES

2251 SERIES

		VALVE
PACKAGING	ELBOW	TEE
KIT
	SLIP
VALVE	JOINT
	KIT
REBUILD
KIT
		ACTUATOR
SEAT		PIPE AND
		BRACKET
		SUPPLY
		CONNECTION
FLOW
DISC	YOKE
SUPPLY		BUTTON
INLET KIT
		& STEM

FLANGE

SUPPORT

BOLT

REPAIR PARTS	DESCRIPTION	PART NUMBER	PKG QTY
Faucet Parts	Button & Stem - Cold (0" - 4")	066371-0020A	1
	Button & Stem - Hot (0" - 4")	066372-0020A	1
	Button & Stem - Cold (4" - 9")	066404-0020A	1
	Button & Stem - Hot (4" - 9")	066405-0020A	1
	Flange	060059-0020A	1
	Actuator Pipe and Bracket (0" - 4")	066295-0070A	1
	Actuator Pipe and Bracket (4" - 9")	066296-0070A	1
	Support Bolt (0" - 4")	012776-0020A	1
	Support Bolt (4" - 9")	012800-0020A	1
	Yoke	062204-0070A	1
	Valve Rebuild Kit	066298-0070A	1
	Seat	032949-0070A	1
	Flow Disc	000308-0070A	1
	Supply Inlet Kit	066306-0070A	1
	Slip Joint Kit	066332-0070A	1
	Valve	004466-0070A	1
	Tee	012498-0070A	1
	Elbow	012499-0070A	1
	Supply Connection (0" - 4")	013709-0070A	1
	Supply Connection (4" - 9")	013711-0070A	1
	Packing Kit	066409-0070A	1

F-10	P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c .
REV. A	C A m e r i c a n S t a n d a r d I n c . 1 9 9 1
