DORAL CHAMPION® 4

ROUND FRONT TOILET

VITREOUS CHINA

DORAL CHAMPION® 4 ROUND FRONT TOILET

2369.014

Vitreous china

••EverClean® surface inhibits the growth of stain- and odor-causing bacteria, mold, and mildew on the surface

Low-consumption (6.0 Lpf/1.6 gpf)

Features Champion® 4 Flushing System performance platform

4" non-adjustable, piston action Accelerator™ flush valve

Round Front siphon action jetted bowl

2-3/8" fully-glazed trapway

Speed Connect® tank/bowl coupling system

Chrome-plated trip lever

Sweeping pier on bowl

100% factory flush tested

2 bolt caps

10 year warranty

3110.016 Round Front Bowl

4272.014 Tank

Nominal Dimensions:

721 x 492 x 844mm

(28-3/8" x 19-3/8" x 33-1/4")

Fixture only, seat and supply by others

Compliance Certifications -

Meets or Exceeds the Following Specifications:

ASME A112.19.2M for Vitreous China Fixtures - includes Flush Performance, Ball Pass Diameter, Trap Seal Depth and all Dimensions

Los Angeles Department of Water and Power Supplementary Purchase Specification for Non-Adjustability - July, 2003 revision

FINISHED WALL









721mm









(28-3/8)







32mm ± 6mm





492mm

(1-1/4 ± 1/4)





(19-3/8)



216mm









(8-1/2)









419mm









(16-1/2)















356mm



C/L OF SEAT POST HOLES



(14)



140mm (5-1/2 CENTERS)













844mm







SUPPLY

(33-1/4)







AS



83mm 1/4)-(3





REQ'D





387mm









(15-1/4)











*254mm(10)





16mm



152mm





(5/8)



(6)



264mm



FINISHED

254mm

362mm

FLOOR



(10-3/8)





(10)

(14-1/4)













305mm

C/L OF OUTLET







(12)









To Be Specified:

Color:

White Bone Silver Linen Black

Seat: (please specify color)

Champion® Slow Close Round Front #5330.010

Rise & Shine Round Front #5322.011

EverClean® Round Front Seat with Slow Close Snap-Off Hinges #5320.110

Supply with stop:

© 2008 AS America Inc.

NOTES:

THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.

SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.

*DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2.

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

K25

Revised 2/08

Page 1

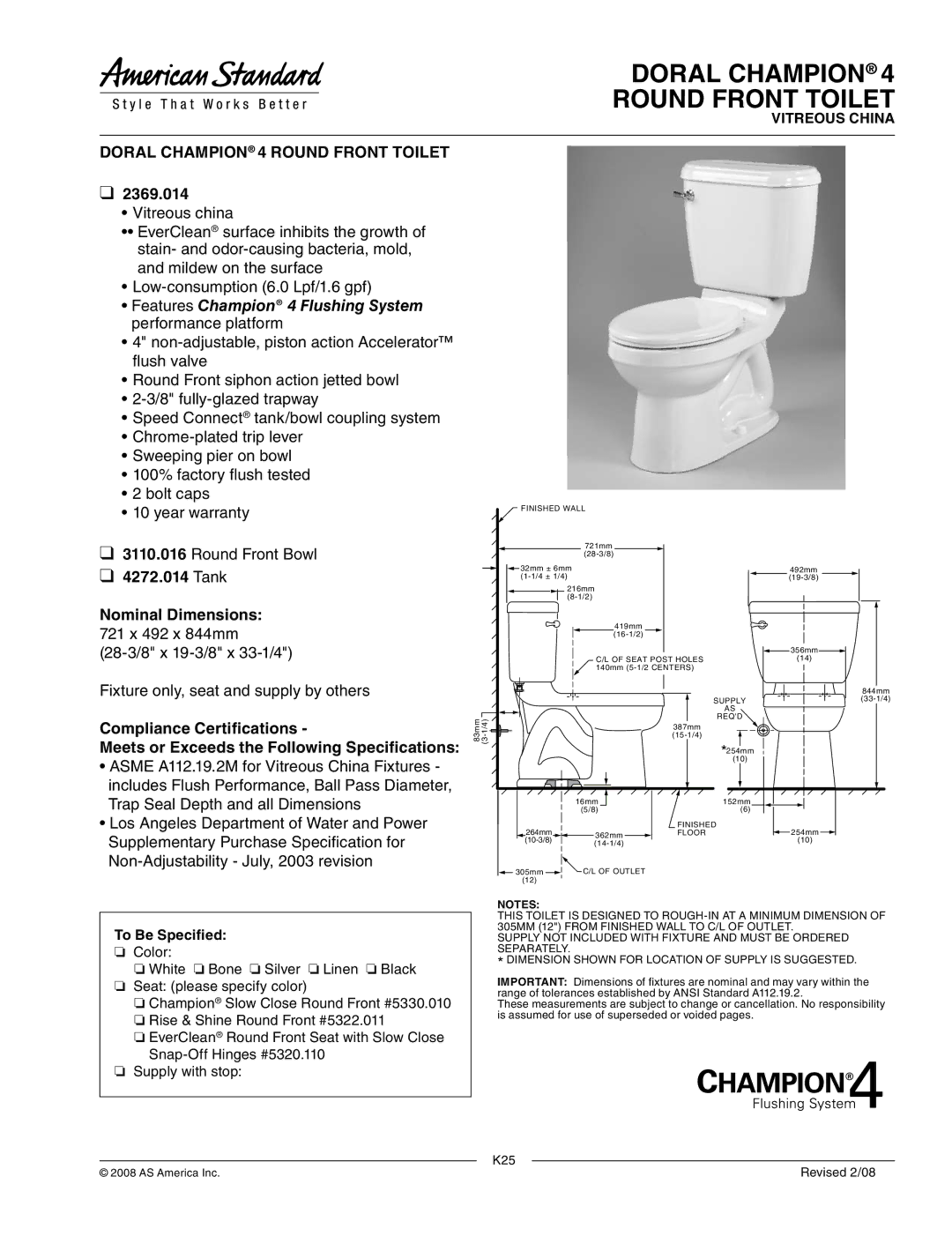

Image 1
American Standard 2369.014 dimensions Doral Champion Round Front Toilet, Doral Champion 4 Round Front Toilet

2369.014 specifications
