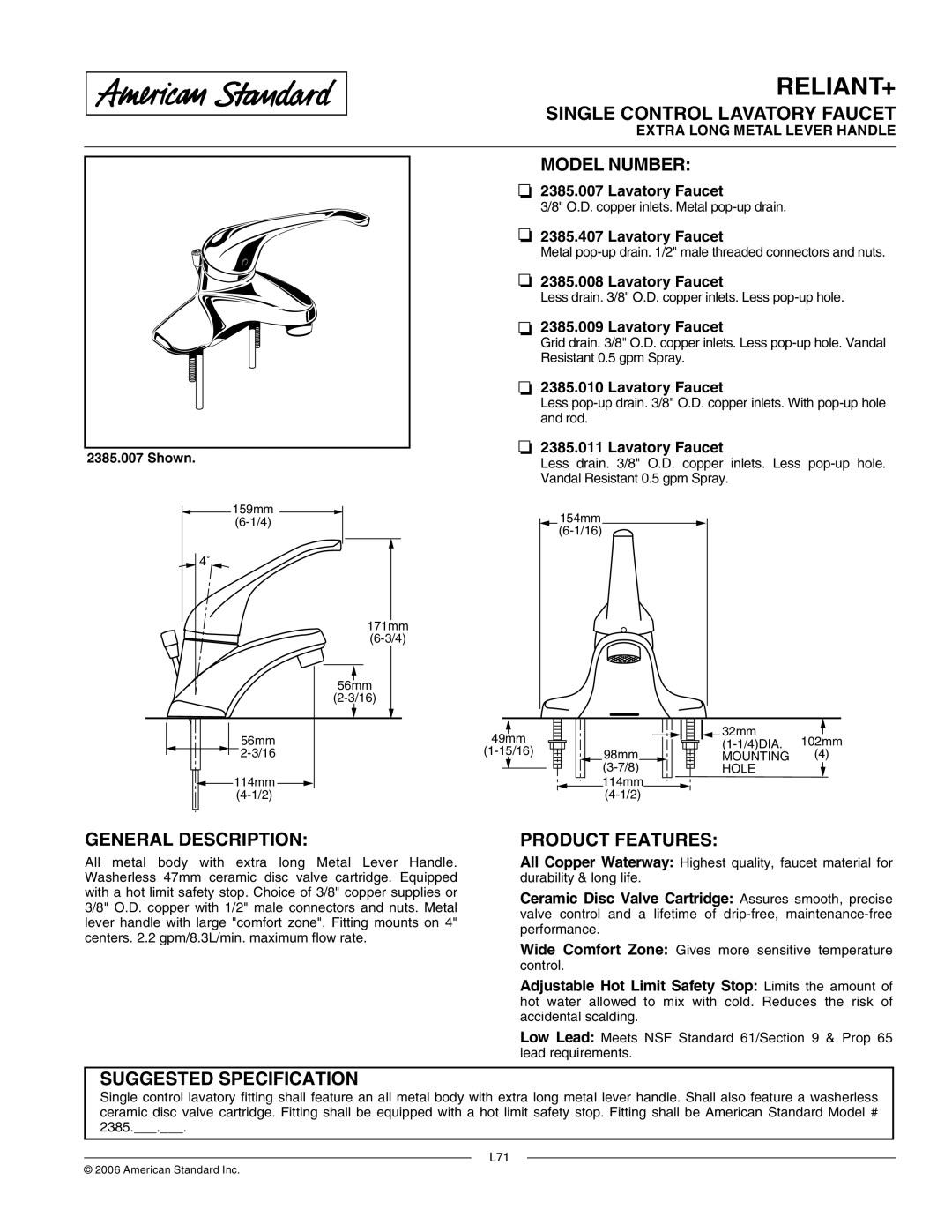

RELIANT+

SINGLE CONTROL LAVATORY FAUCET

EXTRA LONG METAL LEVER HANDLE

		MODEL NUMBER:
		2385.007 Lavatory Faucet
		3/8" O.D. copper inlets. Metal pop-up drain.
		2385.407 Lavatory Faucet
		Metal pop-up drain. 1/2" male threaded connectors and nuts.
		2385.008 Lavatory Faucet
		Less drain. 3/8" O.D. copper inlets. Less pop-up hole.
		2385.009 Lavatory Faucet
		Grid drain. 3/8" O.D. copper inlets. Less pop-up hole. Vandal
		Resistant 0.5 gpm Spray.
		2385.010 Lavatory Faucet
		Less pop-up drain. 3/8" O.D. copper inlets. With pop-up hole
		and rod.
2385.007 Shown.		2385.011 Lavatory Faucet
		Less drain. 3/8" O.D. copper inlets. Less pop-up hole.
		Vandal Resistant 0.5 gpm Spray.
159mm		154mm
(6-1/4)
		(6-1/16)
4˚
	171mm
	(6-3/4)
	56mm
	(2-3/16)
56mm	49mm		32mm	102mm
			(1-1/4)DIA.
2-3/16	(1-15/16)	98mm	MOUNTING	(4)
		(3-7/8)	HOLE
114mm		114mm
(4-1/2)		(4-1/2)

GENERAL DESCRIPTION:

All metal body with extra long Metal Lever Handle. Washerless 47mm ceramic disc valve cartridge. Equipped with a hot limit safety stop. Choice of 3/8" copper supplies or 3/8" O.D. copper with 1/2" male connectors and nuts. Metal lever handle with large "comfort zone". Fitting mounts on 4" centers. 2.2 gpm/8.3L/min. maximum flow rate.

PRODUCT FEATURES:

All Copper Waterway: Highest quality, faucet material for durability & long life.

Ceramic Disc Valve Cartridge: Assures smooth, precise valve control and a lifetime of drip-free, maintenance-free performance.

Wide Comfort Zone: Gives more sensitive temperature control.

Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.

Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead requirements.

SUGGESTED SPECIFICATION

Single control lavatory fitting shall feature an all metal body with extra long metal lever handle. Shall also feature a washerless ceramic disc valve cartridge. Fitting shall be equipped with a hot limit safety stop. Fitting shall be American Standard Model # 2385.___.___.

L71

© 2006 American Standard Inc.
