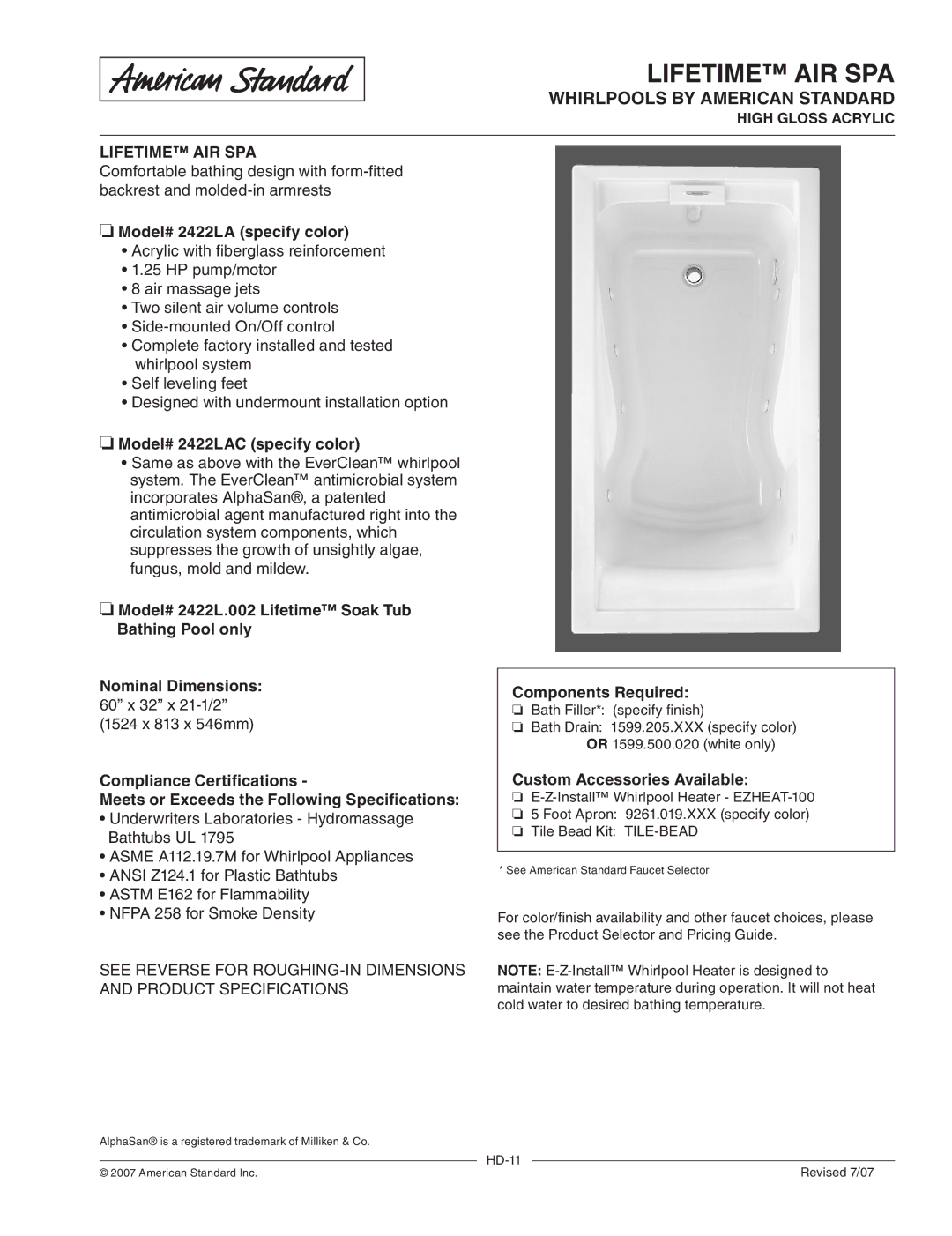

LIFETIME™ AIR SPA
WHIRLPOOLS BY AMERICAN STANDARD
HIGH GLOSS ACRYLICv
60"
(1524mm)
3"
(76mm)
(349mm)
6"
(152mm)
32"
(813mm)
CUT OUT IN FLOOR | |
FOR DRAIN | |
| (197mm) |
11"
(279mm)
32"
(813mm)
(546mm)
20"(C)
(502mm)
C/L OF
OVERFLOW
(511mm)
DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE
OF TOLERANCES ESTABLISHED BY ANSI STANDARDS Z124.1 AND A112.19.7.

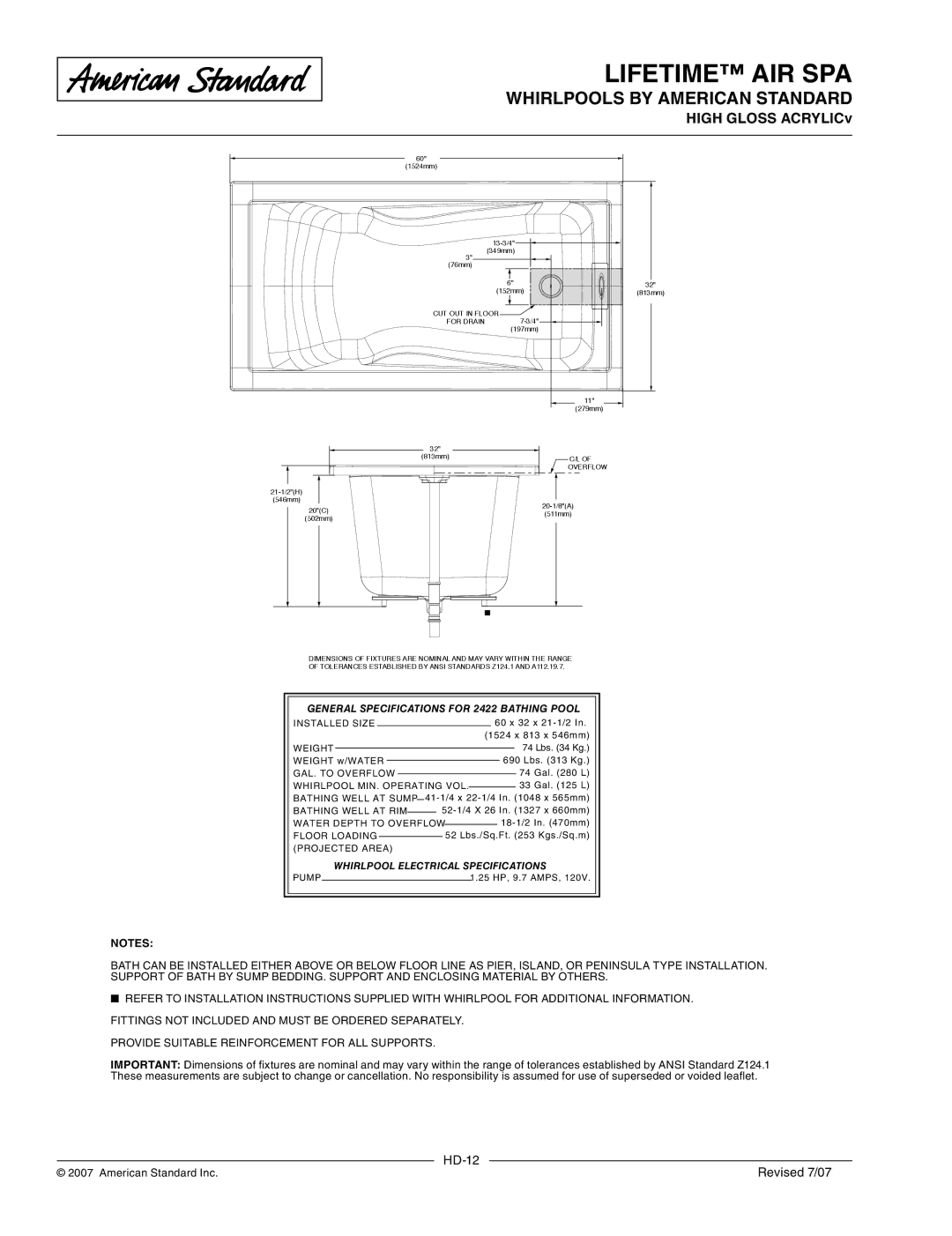

GENERAL SPECIFICATIONS FOR 2422 BATHING POOL
INSTALLED SIZE |
|
|
|
|
|
|
|
|
|
|
| 60 x 32 x | |||||
|
|
|
|
|
|
|
|
|
|
|
| (1524 x 813 x 546mm) | |||||
WEIGHT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 74 Lbs. (34 Kg.) | |
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||
WEIGHT w/WATER |
|
|
|
|
|
|
|
|
|
|
| 690 Lbs. (313 Kg.) | |||||
|
|
|
|
|
|
|
|
|
|
| |||||||
GAL. TO OVERFLOW |
|
|
|
|
|
|
|
|
|
|
|
| 74 Gal. (280 L) | ||||
|
|
|
|
|
|
|
|
|
|
|
| ||||||
WHIRLPOOL MIN. OPERATING VOL. |
|
|
|
|
| 33 Gal. (125 L) | |||||||||||
|
|
|
|
| |||||||||||||
BATHING WELL AT SUMP |
| ||||||||||||||||
| |||||||||||||||||
BATHING WELL AT RIM |
|
| |||||||||||||||
|
| ||||||||||||||||
WATER DEPTH TO OVERFLOW |
|
|
|
| |||||||||||||
|
|
|
| ||||||||||||||
FLOOR LOADING |
|
|
|
| 52 Lbs./Sq.Ft. (253 Kgs./Sq.m) | ||||||||||||
|
|
|
| ||||||||||||||
(PROJECTED AREA) |
|
|
|
|
|
|
|
|
|
| |||||||
| WHIRLPOOL ELECTRICAL SPECIFICATIONS |
PUMP | 1.25 HP, 9.7 AMPS, 120V. |
NOTES:
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION. SUPPORT OF BATH BY SUMP BEDDING. SUPPORT AND ENCLOSING MATERIAL BY OTHERS.
■REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION. FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaflet.
|
| ||
© 2007 American Standard Inc. | Revised 7/07 | ||
|
