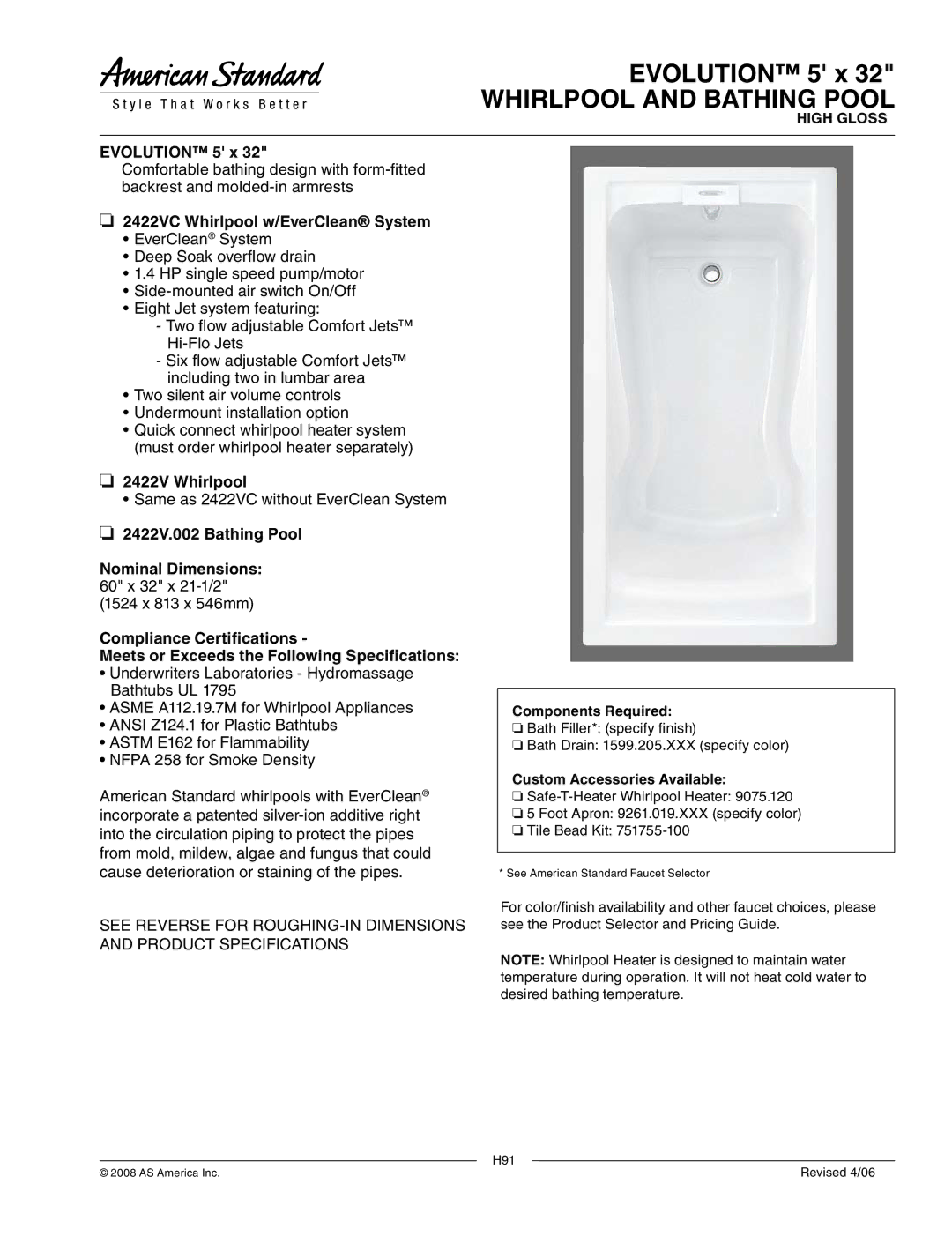

EVOLUTION™ 5' x 32"
WHIRLPOOL AND BATHING POOL
HIGH GLOSS
EVOLUTION™ 5' x 32"
Comfortable bathing design with
❏ 2422VC Whirlpool w/EverClean® System
• EverClean® System
• Deep Soak overflow drain
• 1.4 HP single speed pump/motor
•
• Eight Jet system featuring:
- Two flow adjustable Comfort Jets™
- Six flow adjustable Comfort Jets™ including two in lumbar area
• Two silent air volume controls
• Undermount installation option
• Quick connect whirlpool heater system
(must order whirlpool heater separately) |
|
❏ 2422V Whirlpool |
|
• Same as 2422VC without EverClean System |
|
❏ 2422V.002 Bathing Pool |
|
Nominal Dimensions: |
|
60" x 32" x |
|
(1524 x 813 x 546mm) |
|
Compliance Certifications - |
|
Meets or Exceeds the Following Specifications: |
|
• Underwriters Laboratories - Hydromassage |
|
Bathtubs UL 1795 |
|
| |
• ASME A112.19.7M for Whirlpool Appliances | Components Required: |
• ANSI Z124.1 for Plastic Bathtubs | ❏ Bath Filler*: (specify finish) |
• ASTM E162 for Flammability | ❏ Bath Drain: 1599.205.XXX (specify color) |
• NFPA 258 for Smoke Density |
|
American Standard whirlpools with EverClean® | Custom Accessories Available: |
❏ | |
incorporate a patented | ❏ 5 Foot Apron: 9261.019.XXX (specify color) |
into the circulation piping to protect the pipes | ❏ Tile Bead Kit: |
from mold, mildew, algae and fungus that could |
|
| |
cause deterioration or staining of the pipes. | * See American Standard Faucet Selector |
| For color/finish availability and other faucet choices, please |
SEE REVERSE FOR | see the Product Selector and Pricing Guide. |
AND PRODUCT SPECIFICATIONS | NOTE: Whirlpool Heater is designed to maintain water |
| |
| temperature during operation. It will not heat cold water to |
| desired bathing temperature. |
| H91 |
| |
