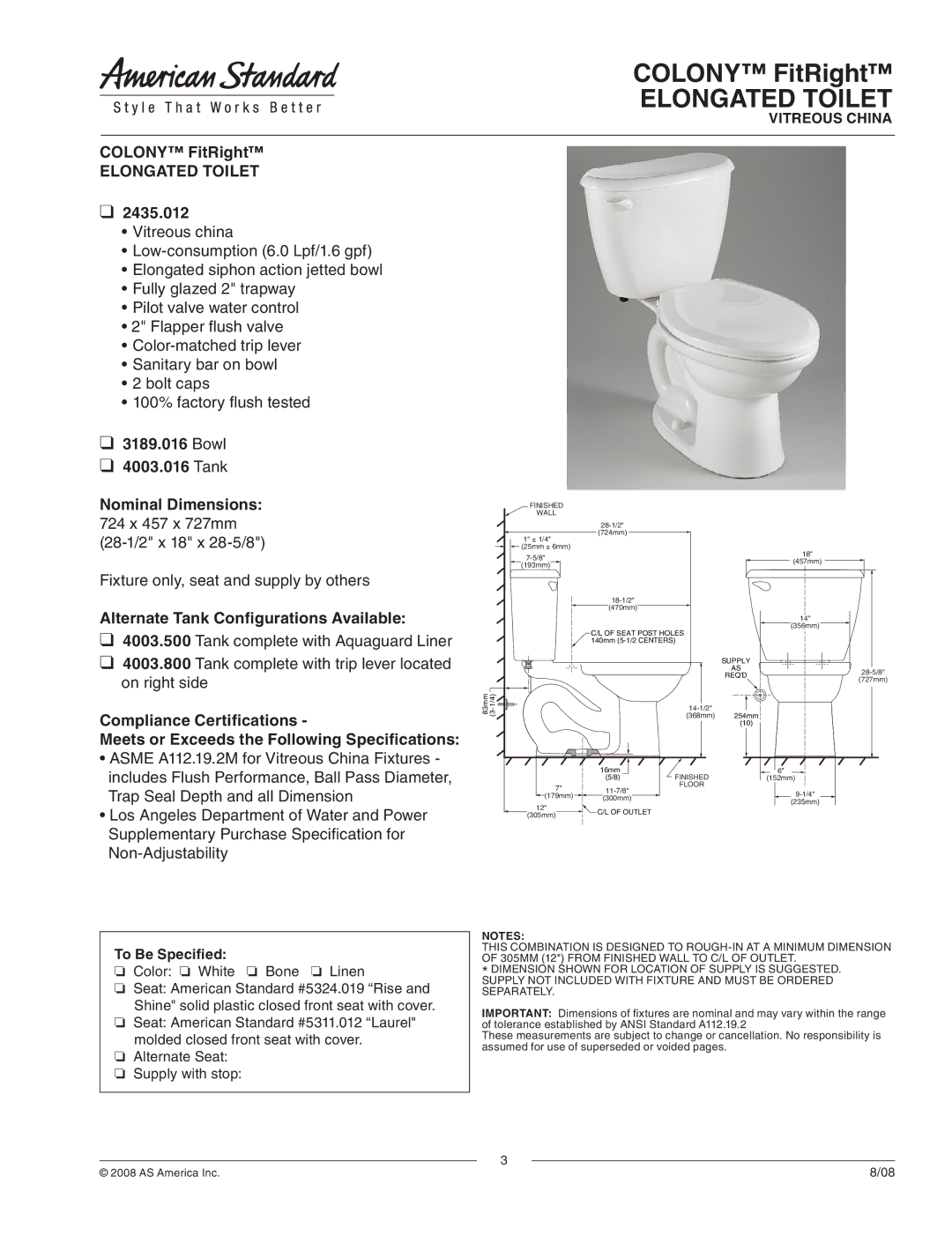

American Standard 2435.012 dimensions COLONY FitRight ELONGATED TOILET, Bowl 4003.016 Tank

COLONY™ FitRight™

ELONGATED TOILET

❑2435.012

•Vitreous china

•Low-consumption (6.0 Lpf/1.6 gpf)

•Elongated siphon action jetted bowl

•Fully glazed 2" trapway

•Pilot valve water control

•2" Flapper flush valve

•Color-matched trip lever

•Sanitary bar on bowl

•2 bolt caps

•100% factory flush tested

❑3189.016 Bowl

❑4003.016 Tank

COLONY™ FitRight™

ELONGATED TOILET

VITREOUS CHINA

Nominal Dimensions: 724 x 457 x 727mm

(28-1/2" x 18" x 28-5/8")

Fixture only, seat and supply by others

Alternate Tank Configurations Available:

❑4003.500 Tank complete with Aquaguard Liner

❑4003.800 Tank complete with trip lever located on right side

'*/*4)&%

8"--


™


NN
™
NN



NN



NN



NN

$-
0'
4&"5
1045
)0-&4 NN

$&/5&34



NN



NN

4611-:

"4

3&2h%



NN

Compliance Certifications -

Meets or Exceeds the Following Specifications:

NN



NN NN

•ASME A112.19.2M for Vitreous China Fixtures - includes Flush Performance, Ball Pass Diameter, Trap Seal Depth and all Dimension

•Los Angeles Department of Water and Power Supplementary Purchase Specification for Non-Adjustability

	NN	'*/*4)&%
			NN
		'-003

NN
	NN
			NN

	$- 0' 065-&5
NN

To Be Specified:

❏Color: ❏ White ❏ Bone ❏ Linen

❏Seat: American Standard #5324.019 “Rise and Shine" solid plastic closed front seat with cover.

❏Seat: American Standard #5311.012 “Laurel" molded closed front seat with cover.

❏Alternate Seat:

❏Supply with stop:

NOTES:

THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.

*DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED. SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

© 2008 AS America Inc. 8/08
