Replace XXX with Fixture Color Code; see page VII

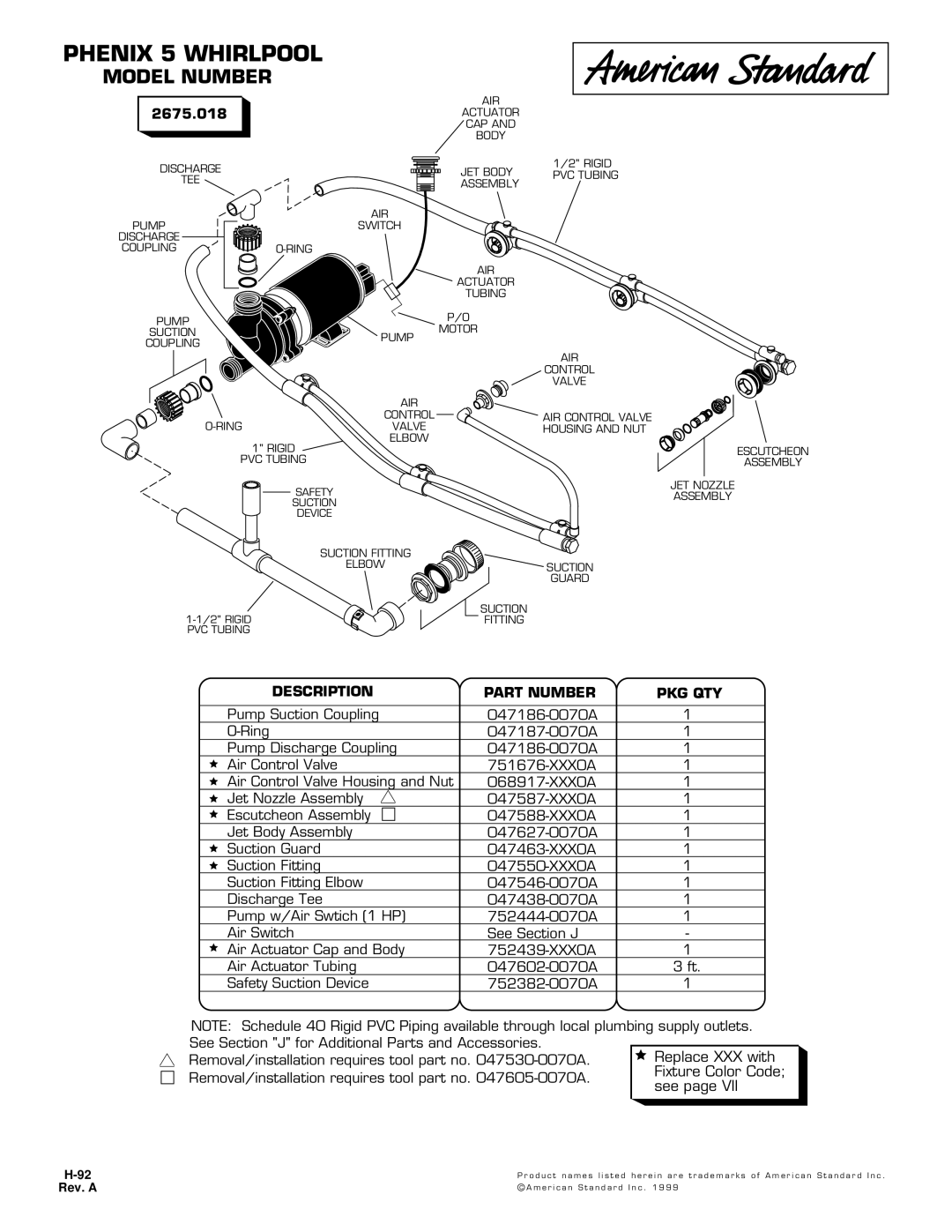

PHENIX 5 WHIRLPOOL

MODEL NUMBER

2675.018

DISCHARGE

TEE



AIR

PUMP

SWITCH

DISCHARGE



COUPLING

O-RING

PUMP

SUCTIONPUMP

COUPLING

AIR

ACTUATOR

CAP AND

BODY

JET BODY

ASSEMBLY

AIR

ACTUATOR

TUBING

P/O

MOTOR

1/2" RIGID PVC TUBING

AIR

CONTROL

VALVE

AIR CONTROL

O-RINGVALVE ELBOW

1" RIGID

PVC TUBING



SAFETY



SUCTION



DEVICE



SUCTION FITTING



ELBOW



SUCTION

1-1/2" RIGID

FITTING

PVC TUBING



AIR CONTROL VALVE HOUSING AND NUT

SUCTION

GUARD

ESCUTCHEON

ASSEMBLY

JET NOZZLE

ASSEMBLY

DESCRIPTION

PART NUMBER

PKG QTY

Pump Suction Coupling

047186-0070A

1

O-Ring

047187-0070A

1

Pump Discharge Coupling

047186-0070A

1

Air Control Valve

751676-XXX0A

1

Air Control Valve Housing and Nut

068917-XXX0A

1

Jet Nozzle Assembly

047587-XXX0A

1

Escutcheon Assembly

047588-XXX0A

1

Jet Body Assembly

047627-0070A

1

Suction Guard

047463-XXX0A

1

Suction Fitting

047550-XXX0A

1

Suction Fitting Elbow

047546-0070A

1

Discharge Tee

047438-0070A

1

Pump w/Air Swtich (1 HP)

752444-0070A

1

Air Switch

See Section J

-

Air Actuator Cap and Body

752439-XXX0A

1

Air Actuator Tubing

047602-0070A

3 ft.

Safety Suction Device

752382-0070A

1

NOTE: Schedule 40 Rigid PVC Piping available through local plumbing supply outlets. See Section "J" for Additional Parts and Accessories.

Removal/installation requires tool part no. 047530-0070A. Removal/installation requires tool part no. 047605-0070A.

H-92

Rev. A

P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c . C A m e r i c a n S t a n d a r d I n c . 1 9 9 9

Page 1
Image 1
American Standard 2675.018 manual Phenix 5 Whirlpool, Model Number, Description Part Number PKG QTY, Rev. a
