Replace XXX with Fixture Color Code

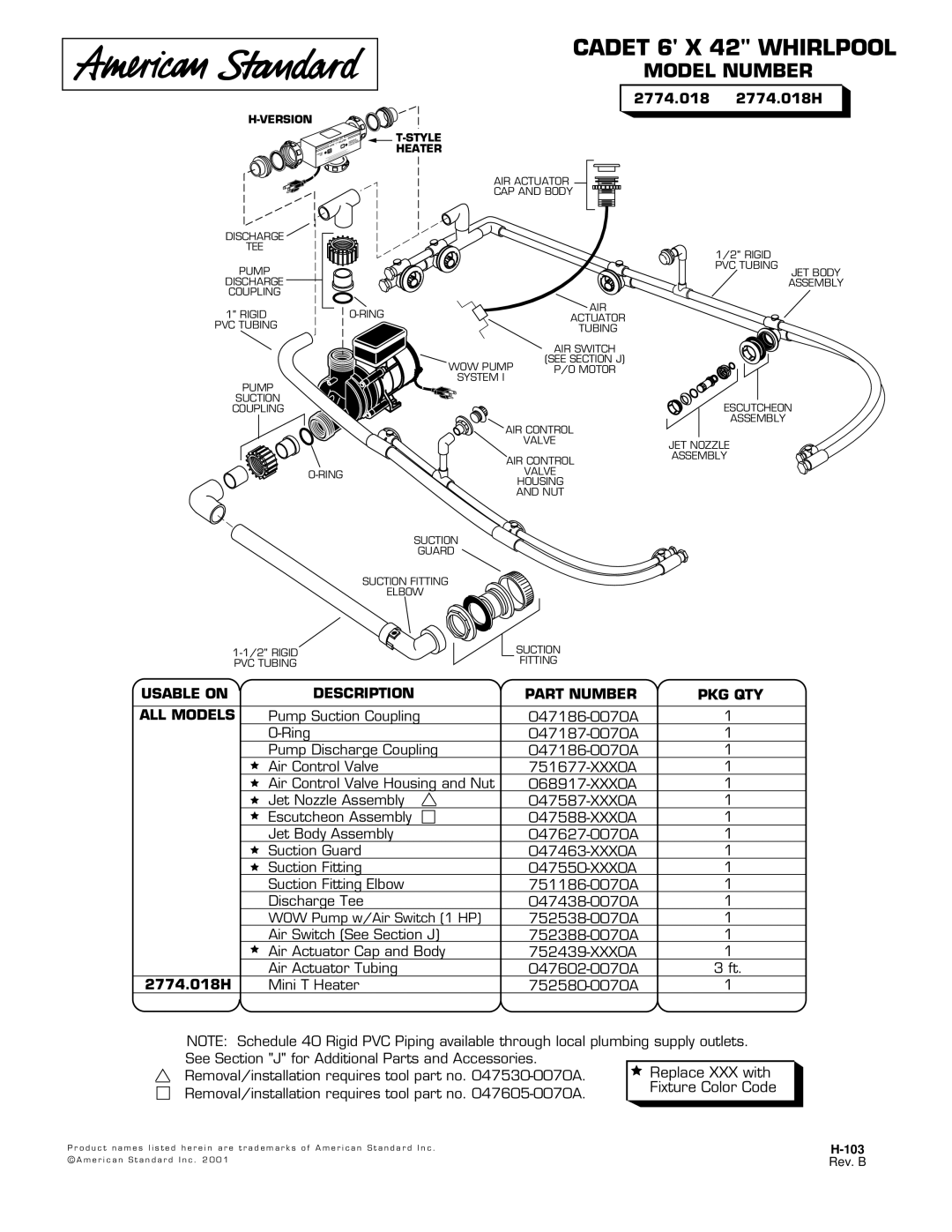

CADET 6' X 42" WHIRLPOOL

MODEL NUMBER

2774.018 2774.018H

H-VERSION

JET

T

ULTRAHEATER

OPRVEORTEHTCEOTARIOENSET

SAFE "T"

PUSH

HEA"TOENR"

T-STYLE HEATER



AIR ACTUATOR





CAP AND BODY



DISCHARGE





TEE





1/2" RIGID







PUMP



PVC TUBING



JET BODY

DISCHARGE



ASSEMBLY

COUPLING





1" RIGID

O-RING

AIR



ACTUATOR



PVC TUBING



TUBING













AIR SWITCH





WOW PUMP

(SEE SECTION J)





P/O MOTOR





SYSTEM I





PUMP





SUCTION



ESCUTCHEON

COUPLING





AIR CONTROL

ASSEMBLY









VALVE

JET NOZZLE









AIR CONTROL

ASSEMBLY







O-RING

VALVE





HOUSING













AND NUT





SUCTION







GUARD







SUCTION FITTING







ELBOW





1-1/2" RIGID

SUCTION



PVC TUBING

FITTING



USABLE ON

DESCRIPTION

PART NUMBER

PKG QTY

ALL MODELS

Pump Suction Coupling

047186-0070A

1



O-Ring

047187-0070A

1



Pump Discharge Coupling

047186-0070A

1



Air Control Valve

751677-XXX0A

1



Air Control Valve Housing and Nut

068917-XXX0A

1



Jet Nozzle Assembly

047587-XXX0A

1



Escutcheon Assembly

047588-XXX0A

1



Jet Body Assembly

047627-0070A

1



Suction Guard

047463-XXX0A

1



Suction Fitting

047550-XXX0A

1



Suction Fitting Elbow

751186-0070A

1



Discharge Tee

047438-0070A

1



WOW Pump w/Air Switch (1 HP)

752538-0070A

1



Air Switch (See Section J)

752388-0070A

1



Air Actuator Cap and Body

752439-XXX0A

1

2774.018H

Air Actuator Tubing

047602-0070A

3 ft.

Mini T Heater

752580-0070A

1

NOTE: Schedule 40 Rigid PVC Piping available through local plumbing supply outlets. See Section "J" for Additional Parts and Accessories.

Removal/installation requires tool part no. 047530-0070A. Removal/installation requires tool part no. 047605-0070A.

P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c . C A m e r i c a n S t a n d a r d I n c . 2 0 0 1

H-103

Rev. B

Page 1
