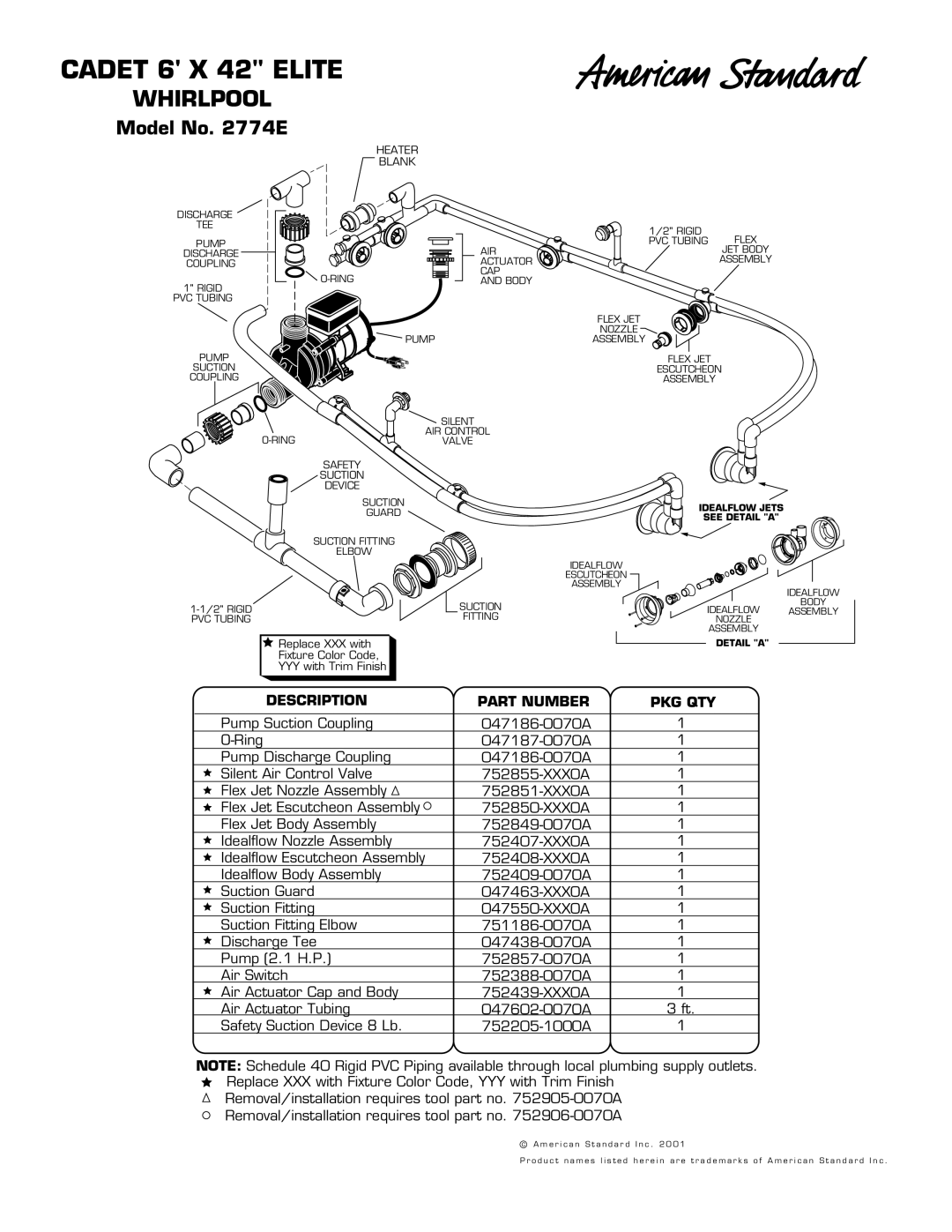

CADET 6' X 42" ELITE

WHIRLPOOL

Model No. 2774E



HEATER



BLANK

DISCHARGE



TEE



PUMP

AIR

DISCHARGE

COUPLING

ACTUATOR

O-RING

CAP

AND BODY

1" RIGID



PVC TUBING





PUMP

PUMP



SUCTION



COUPLING





SILENT

O-RING

AIR CONTROL

VALVE

SAFETY



SUCTION

DEVICE





SUCTION

1/2" RIGID

PVC TUBING FLEX JET BODY

ASSEMBLY

FLEX JET

NOZZLE

ASSEMBLY

FLEX JET

ESCUTCHEON

ASSEMBLY



GUARD



SUCTION FITTING



ELBOW

1-1/2" RIGID

SUCTION

PVC TUBING

FITTING

Replace XXX with

Fixture Color Code,

YYY with Trim Finish

IDEALFLOW

ESCUTCHEON

ASSEMBLY

IDEALFLOW JETS

SEE DETAIL "A"

IDEALFLOW

BODY

IDEALFLOW ASSEMBLY NOZZLE

ASSEMBLY

DETAIL "A"

DESCRIPTION

PART NUMBER

PKG QTY

Pump Suction Coupling

047186-0070A

1

O-Ring

047187-0070A

1

Pump Discharge Coupling

047186-0070A

1

Silent Air Control Valve

752855-XXX0A

1

Flex Jet Nozzle Assembly

752851-XXX0A

1

Flex Jet Escutcheon Assembly

752850-XXX0A

1

Flex Jet Body Assembly

752849-0070A

1

Idealflow Nozzle Assembly

752407-XXX0A

1

Idealflow Escutcheon Assembly

752408-XXX0A

1

Idealflow Body Assembly

752409-0070A

1

Suction Guard

047463-XXX0A

1

Suction Fitting

047550-XXX0A

1

Suction Fitting Elbow

751186-0070A

1

Discharge Tee

047438-0070A

1

Pump (2.1 H.P.)

752857-0070A

1

Air Switch

752388-0070A

1

Air Actuator Cap and Body

752439-XXX0A

1

Air Actuator Tubing

047602-0070A

3 ft.

Safety Suction Device 8 Lb.

752205-1000A

1

NOTE: Schedule 40 Rigid PVC Piping available through local plumbing supply outlets. Replace XXX with Fixture Color Code, YYY with Trim Finish Removal/installation requires tool part no. 752905-0070A Removal/installation requires tool part no. 752906-0070A

C A m e r i c a n S t a n d a r d I n c . 2 0 0 1



P r o d u c t n a m e s l i s t e d h e r e i n a r e

t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c .

Page 1
