Williamsburg T M

TWO-HANDLE WIDESPREAD

LAVATORY FAUCET

WITH BRASS TRADITIONAL SPOUT

MODEL NUMBER:

2808.222 Widespread Lavatory

Pop-up drain. 2 sets of handles included. (metal lever handles and porcelain lever handles).

2808.224 Widespread Lavatory

Pop-up drain. Metal Lever handles.

2808.224 Shown

35mm (1-3/8)

MAX.

5" (128mm)





1-9/16"





(40mm) 3-1/3"







(85mm)

35mm

60mm

28mm



(1-3/8)DIA.

(2-3/8)

(1-1/8)



MOUNTING



DIA.

89mm

HOLES (3)









(3-1/2)







FLEXIBLE

FLEXIBLE





HOSE

HOSE





152mm - 305mm

(6 TO 12)

FLEXIBLE

FOR GROUND JOINT OR 1/2" O.D. SLIP CONNECTION

GENERAL DESCRIPTION:

Cast brass valve bodies with flexible hose connections for 6" to 12" (152mm to 305mm) installations. 1/4 turn washerless ceramic disc valve cartridges. Cast brass spout. One-half inch male inlet shanks. 50/50 drain body with 1-1/4" (32mm) tailpiece. 2.2 gpm/8.3L/min. maximum flow rate.

SUGGESTED SPECIFICATION:

PRODUCT FEATURES:

Cast Brass Construction: Durable. Ideal for prolonged contact with water. Provides the finest surface for application of colors and finishes.

Ceramic Disc Valve Cartridges: Assures a lifetime of smooth handle operation and drip-free performance.

Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead requirements.

Exclusive Handle Alignment System: Allows fine tuning of handle position.

Choice of Finishes: Wide range of durable finishes.

Lifetime Warranty

Two handle widespread lavatory faucet shall feature cast brass valve bodies with flexible hose connections for 6" to 12" installations. Shall also feature 1/4 turn washerless ceramic disc valve cartridges that are reversible for use with cross or lever handles. Fitting shall be American Standard Model # 2808.22_.___.

Page 1

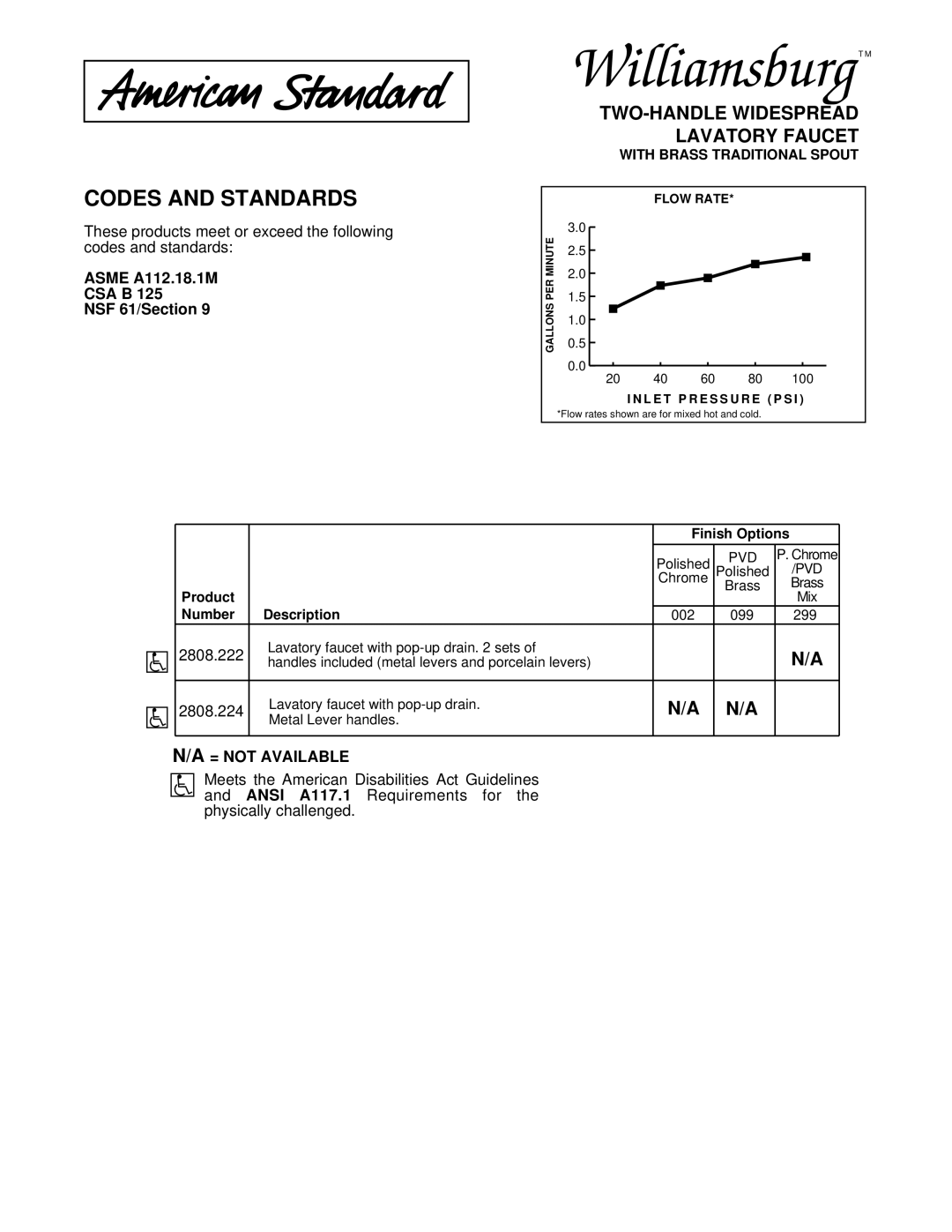

Image 1
American Standard 2808.224 warranty Williamsburg T M, TWO-HANDLE Widespread Lavatory Faucet, Model Number

2808.224, 2808.22 specifications

The American Standard 2808.224 and 2808.22 models are exceptional bathroom fixtures designed to elevate modern lavatory spaces with their practicality, style, and advanced technologies. These two-piece toilets stand out for their innovative features, which offer a blend of efficiency and design.

One of the primary characteristics of both models is their WaterSense certification, promoting water conservation without sacrificing performance. With a flushing system that utilizes just 1.28 gallons per flush, these toilets provide exceptional waste removal capabilities while helping to reduce water bills and environmental impact. The dual-flush option allows users to choose between a light flush for liquid waste and a full flush for solid waste, further enhancing water efficiency.

A key technology integrated into the 2808.224 and 2808.22 is the EverClean surface. This advanced finish inhibits the growth of stain and odor-causing bacteria, making it easier to maintain a clean and hygienic toilet bowl. The smooth surface prevents waste from sticking, allowing for quick and efficient clean-up while ensuring the toilet remains fresh for longer periods.

In terms of design, these models exhibit a sleek, streamlined appearance that fits seamlessly into various bathroom decors. The elongated bowl offers added comfort, making it a popular choice for families and individuals alike. The height of the toilet is also ADA-compliant, which ensures accessibility for all users, including those with mobility challenges.

The installation process is made simple thanks to its straightforward one-piece design, which reduces the number of seams and crevices that can harbor dirt and grime. The robust construction of the materials used guarantees durability, ensuring that the toilet will withstand daily use over the years.

Additionally, American Standard provides comprehensive support and warranties for these models, emphasizing their commitment to quality and customer satisfaction. The 2808.224 and 2808.22 toilets not only combine functionality and style but also underline the brand’s dedication to sustainability.

Overall, with their innovative flushing technologies, advanced surface treatments, and user-friendly designs, the American Standard 2808.224 and 2808.22 toilets present an excellent choice for those seeking to enhance their bathroom experience while promoting an eco-friendly lifestyle.
