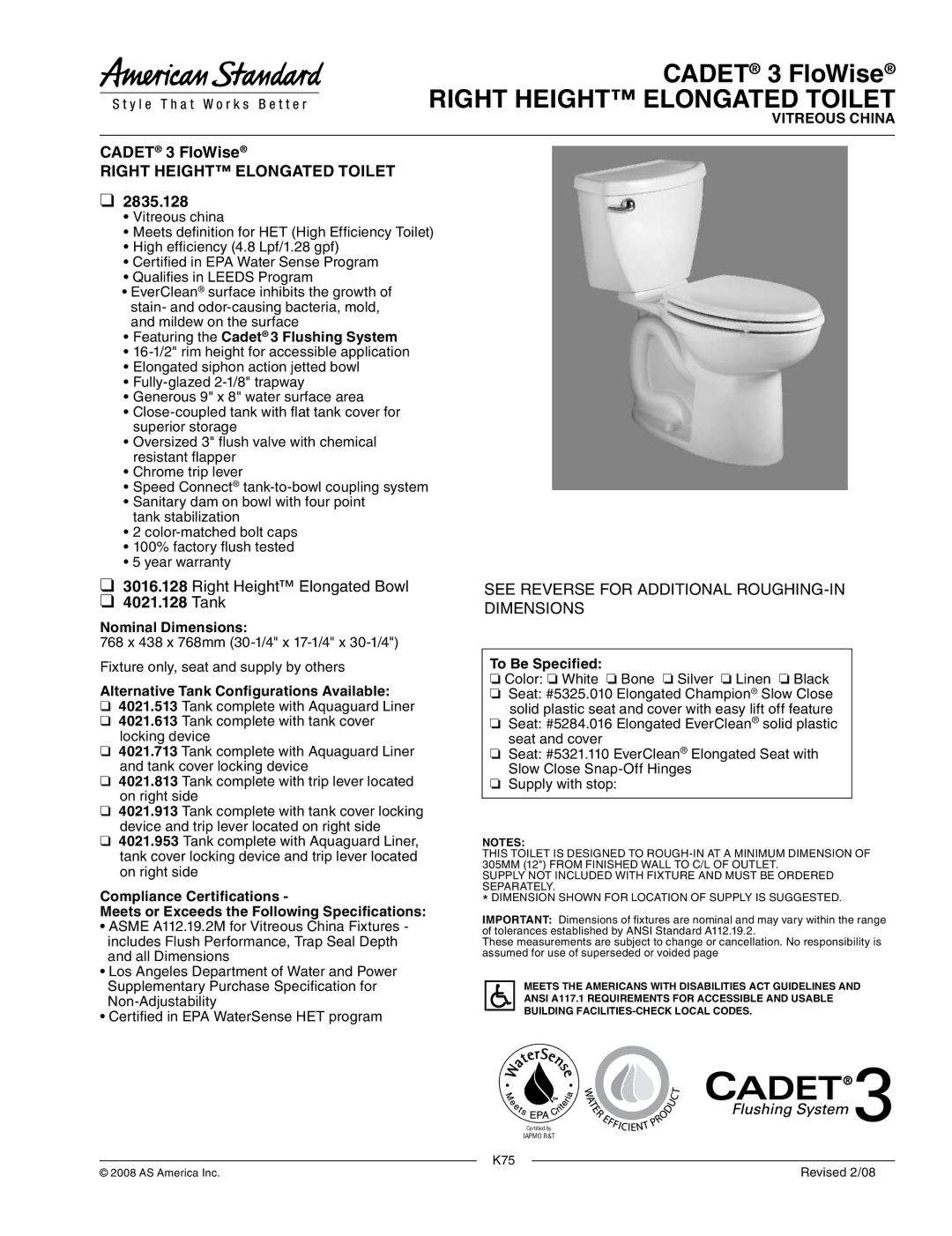

American Standard High Efficiency Right Height Elongated Toilet Manual –

CADET® 3 FloWise®

RIGHT HEIGHT™ ELONGATED TOILET

VITREOUS CHINA

CADET® 3 FloWise®

RIGHT HEIGHT™ ELONGATED TOILET

❑2835.128

•Vitreous china

•Meets definition for HET (High Efficiency Toilet)

•High efficiency (4.8 Lpf/1.28 gpf)

•Certified in EPA Water Sense Program

•Qualifies in LEEDS Program

•EverClean® surface inhibits the growth of stain- and odor-causing bacteria, mold, and mildew on the surface

•Featuring the Cadet® 3 Flushing System

•16-1/2" rim height for accessible application

•Elongated siphon action jetted bowl

•Fully-glazed 2-1/8" trapway

•Generous 9" x 8" water surface area

•Close-coupled tank with flat tank cover for superior storage

•Oversized 3" flush valve with chemical resistant flapper

•Chrome trip lever

•Speed Connect® tank-to-bowl coupling system

•Sanitary dam on bowl with four point tank stabilization

•2 color-matched bolt caps

•100% factory flush tested

•5 year warranty

❑3016.128 Right Height™ Elongated Bowl

❑4021.128 Tank

Nominal Dimensions:

768 x 438 x 768mm (30-1/4" x 17-1/4" x 30-1/4") Fixture only, seat and supply by others

Alternative Tank Configurations Available:

❑4021.513 Tank complete with Aquaguard Liner

❑4021.613 Tank complete with tank cover locking device

❑4021.713 Tank complete with Aquaguard Liner and tank cover locking device

❑4021.813 Tank complete with trip lever located on right side

❑4021.913 Tank complete with tank cover locking device and trip lever located on right side

❑4021.953 Tank complete with Aquaguard Liner, tank cover locking device and trip lever located on right side

Compliance Certifications -

Meets or Exceeds the Following Specifications:

•ASME A112.19.2M for Vitreous China Fixtures - includes Flush Performance, Trap Seal Depth and all Dimensions

•Los Angeles Department of Water and Power Supplementary Purchase Specification for Non-Adjustability

•Certified in EPA WaterSense HET program

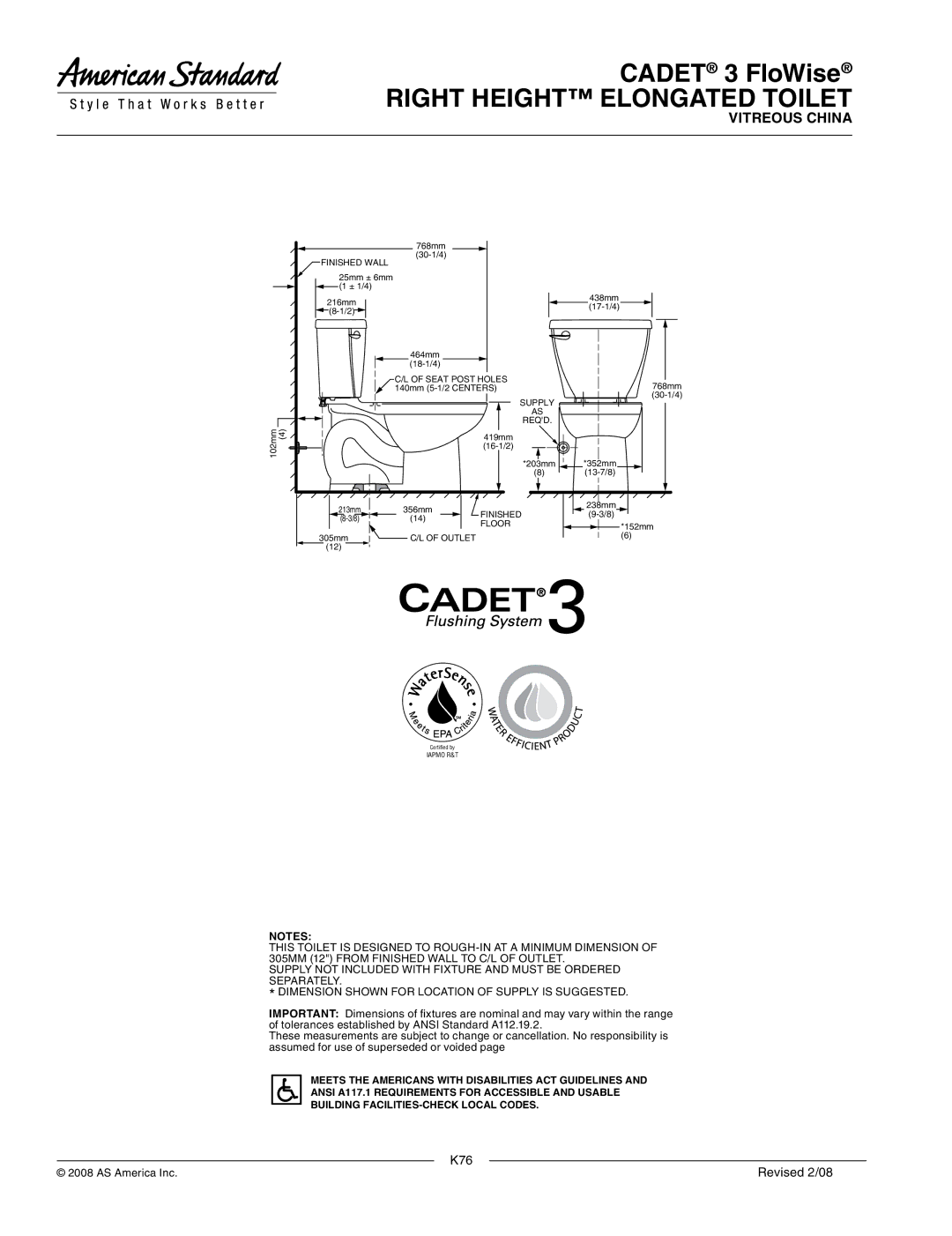

SEE REVERSE FOR ADDITIONAL ROUGHING-IN DIMENSIONS

To Be Specified:

❏Color: ❏ White ❏ Bone ❏ Silver ❏ Linen ❏ Black

❏Seat: #5325.010 Elongated Champion® Slow Close solid plastic seat and cover with easy lift off feature

❏Seat: #5284.016 Elongated EverClean® solid plastic seat and cover

❏Seat: #5321.110 EverClean® Elongated Seat with Slow Close Snap-Off Hinges

❏Supply with stop:

NOTES:

THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.

SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.

*DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2.

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided page

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE BUILDING FACILITIES-CHECK LOCAL CODES.

	Certified by
	IAPMO R&T
	K75
© 2008 AS America Inc.		Revised 2/08
