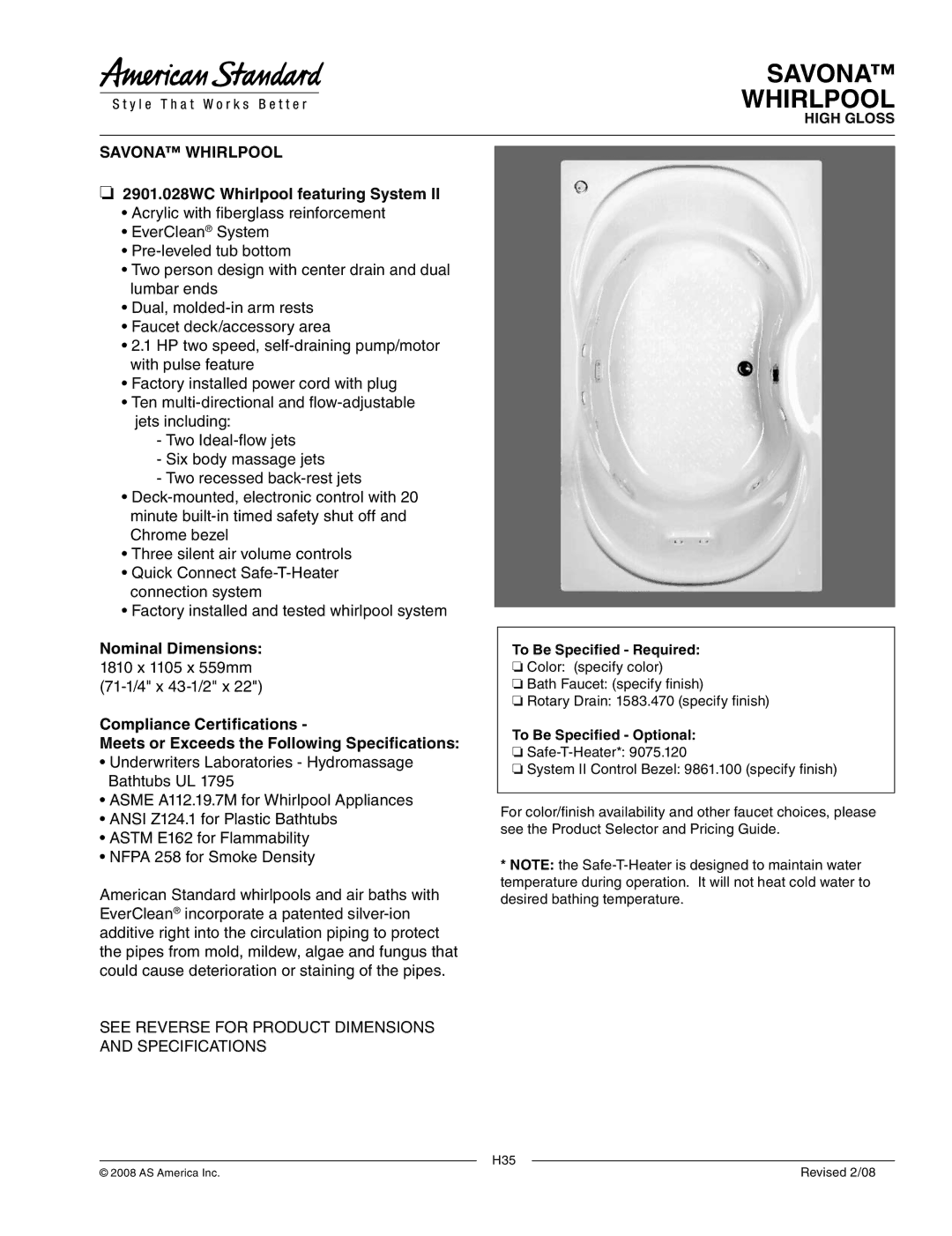

SAVONA™

WHIRLPOOL

HIGH GLOSS

SAVONA™ WHIRLPOOL

❏ 2901.028WC Whirlpool featuring System II

• Acrylic with fiberglass reinforcement

• EverClean® System

• Pre-leveled tub bottom

• Two person design with center drain and dual lumbar ends

• Dual, molded-in arm rests

• Faucet deck/accessory area

• 2.1 HP two speed, self-draining pump/motor with pulse feature

• Factory installed power cord with plug

• Ten multi-directional and flow-adjustable jets including:

- Two Ideal-flow jets

- Six body massage jets

- Two recessed back-rest jets

• Deck-mounted, electronic control with 20 minute built-in timed safety shut off and Chrome bezel

• Three silent air volume controls

• Quick Connect Safe-T-Heater connection system

• Factory installed and tested whirlpool system

Nominal Dimensions:	To Be Specified - Required:
1810 x 1105 x 559mm	❏ Color: (specify color)
(71-1/4" x 43-1/2" x 22")	❏ Bath Faucet: (specify finish)
	❏ Rotary Drain: 1583.470 (specify finish)
Compliance Certifications -	To Be Specified - Optional:
Meets or Exceeds the Following Specifications:
	❏ Safe-T-Heater*: 9075.120
• Underwriters Laboratories - Hydromassage
	❏ System II Control Bezel: 9861.100 (specify finish)
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
	For color/finish availability and other faucet choices, please
• ANSI Z124.1 for Plastic Bathtubs
	see the Product Selector and Pricing Guide.
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density	* NOTE: the Safe-T-Heater is designed to maintain water
American Standard whirlpools and air baths with	temperature during operation. It will not heat cold water to
	desired bathing temperature.
EverClean® incorporate a patented silver-ion
additive right into the circulation piping to protect
the pipes from mold, mildew, algae and fungus that
could cause deterioration or staining of the pipes.
SEE REVERSE FOR PRODUCT DIMENSIONS
AND SPECIFICATIONS

	H35
© 2008 AS America Inc.		Revised 2/08
