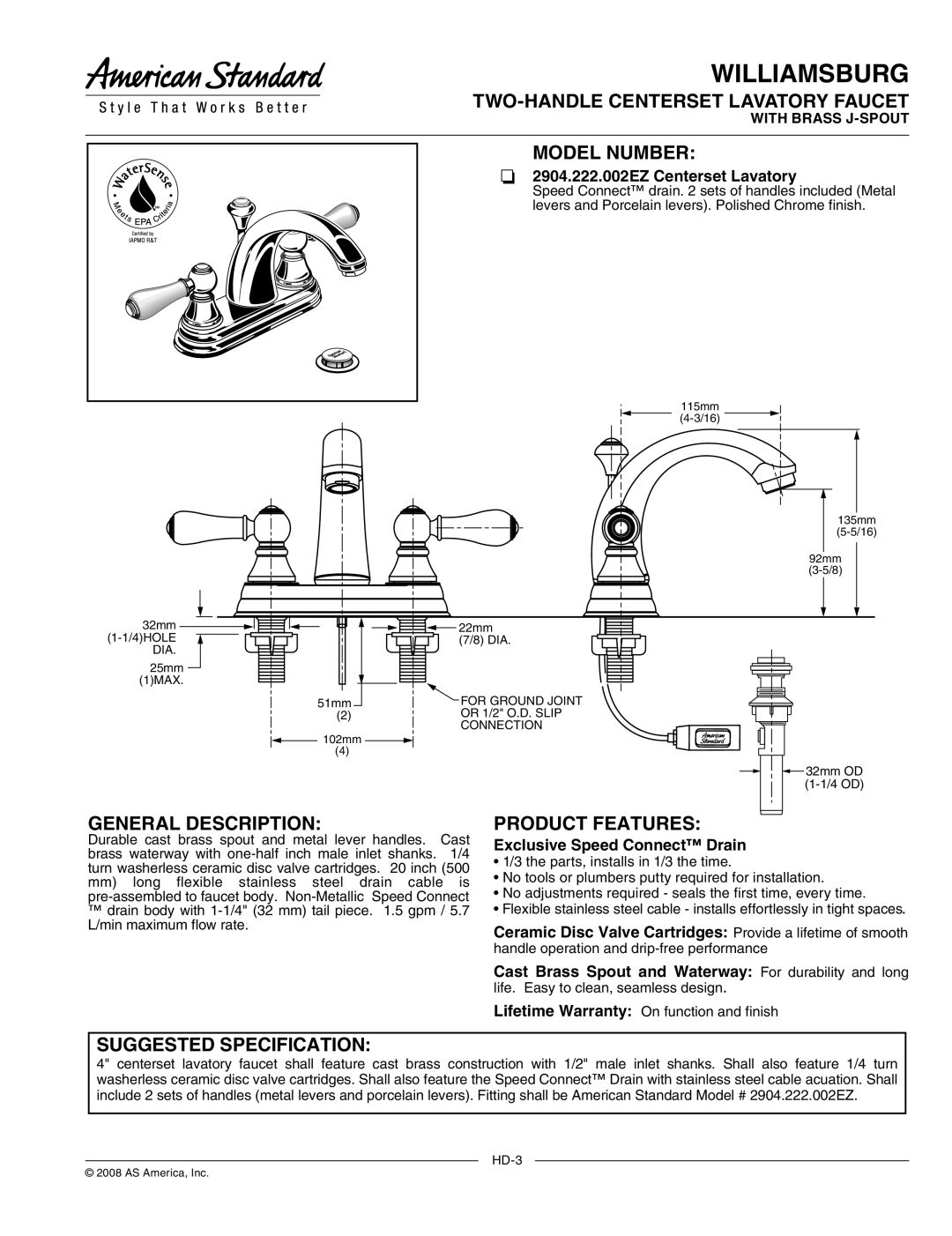

WILLIAMSBURG

TWO-HANDLE CENTERSET LAVATORY FAUCET

WITH BRASS J-SPOUT

MODEL NUMBER:

2904.222.002EZ Centerset Lavatory

Speed Connect™ drain. 2 sets of handles included (Metal levers and Porcelain levers). Polished Chrome finish.

115mm (4-3/16)

135mm (5-5/16)

92mm (3-5/8)

32mm

22mm

(1-1/4)HOLE

(7/8) DIA.

DIA.



25mm



(1)MAX.



51mm

FOR GROUND JOINT

(2)

OR 1/2" O.D. SLIP



CONNECTION

102mm

(4)

32mm OD (1-1/4 OD)

GENERAL DESCRIPTION:

Durable cast brass spout and metal lever handles. Cast brass waterway with one-half inch male inlet shanks. 1/4 turn washerless ceramic disc valve cartridges. 20 inch (500

mm)long flexible stainless steel drain cable is pre-assembled to faucet body. Non-Metallic Speed Connect ™ drain body with 1-1/4" (32 mm) tail piece. 1.5 gpm / 5.7 L/min maximum flow rate.

PRODUCT FEATURES:

Exclusive Speed Connect™ Drain

1/3 the parts, installs in 1/3 the time.

No tools or plumbers putty required for installation.

No adjustments required - seals the first time, every time.

Flexible stainless steel cable - installs effortlessly in tight spaces.

Ceramic Disc Valve Cartridges: Provide a lifetime of smooth

handle operation and drip-free performance

Cast Brass Spout and Waterway: For durability and long

life. Easy to clean, seamless design. Lifetime Warranty: On function and finish

SUGGESTED SPECIFICATION:

4" centerset lavatory faucet shall feature cast brass construction with 1/2" male inlet shanks. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature the Speed Connect™ Drain with stainless steel cable acuation. Shall include 2 sets of handles (metal levers and porcelain levers). Fitting shall be American Standard Model # 2904.222.002EZ.

HD-3

© 2008 AS America, Inc.

Page 1
Image 1
American Standard 2904.222.002EZ warranty TWO-HANDLE Centerset Lavatory Faucet, Model Number, General Description

2904.222.002EZ specifications

The American Standard 2904.222.002EZ is a standout model in the realm of bathroom sinks, specifically designed to elevate both functionality and style in any home. This sink is part of American Standard's renowned product lineup, reflecting quality and innovation that the brand is best known for.

One of the primary features of the 2904.222.002EZ is its unique design, which merges practical use with modern aesthetics. The sink boasts a contemporary rectangular shape that not only maximizes usability but also complements various bathroom styles, from traditional to minimalist. The sleek, smooth lines provide an elegant appearance, making it a popular choice for homeowners and designers alike looking to create a harmonious space.

In terms of technology, the American Standard 2904.222.002EZ is equipped with innovative features that enhance the user experience. The sink is engineered with an EverClean surface, a technology that inhibits the growth of stain and odor-causing bacteria, mold, and mildew. This keeps the sink looking clean and fresh for longer periods, reducing the need for harsh cleaning chemicals and promoting a healthier bathroom environment.

Additionally, the sink includes a pre-drilled overflow hole, which serves as a safety feature to prevent water from spilling over the top, protecting your space from water damage. The design also incorporates a faucet ledge that provides convenience for users who want to install faucets and handle hardware without sacrificing space.

The 2904.222.002EZ sink is crafted from high-quality vitreous china, known for its durability and low maintenance. This material not only offers a glossy finish that is both attractive and resilient but is also designed to tolerate everyday wear and tear while resisting chipping and scratching.

Installation of this sink is straightforward, with options for both wall-mounted and countertop installations, making it versatile for various bathroom layouts. Its standard dimensions allow for easier integration into existing spaces, providing flexibility for renovations.

Overall, the American Standard 2904.222.002EZ exemplifies the perfect blend of classic craftsmanship and contemporary innovation, making it an ideal choice for those seeking a reliable and stylish bathroom sink solution.
