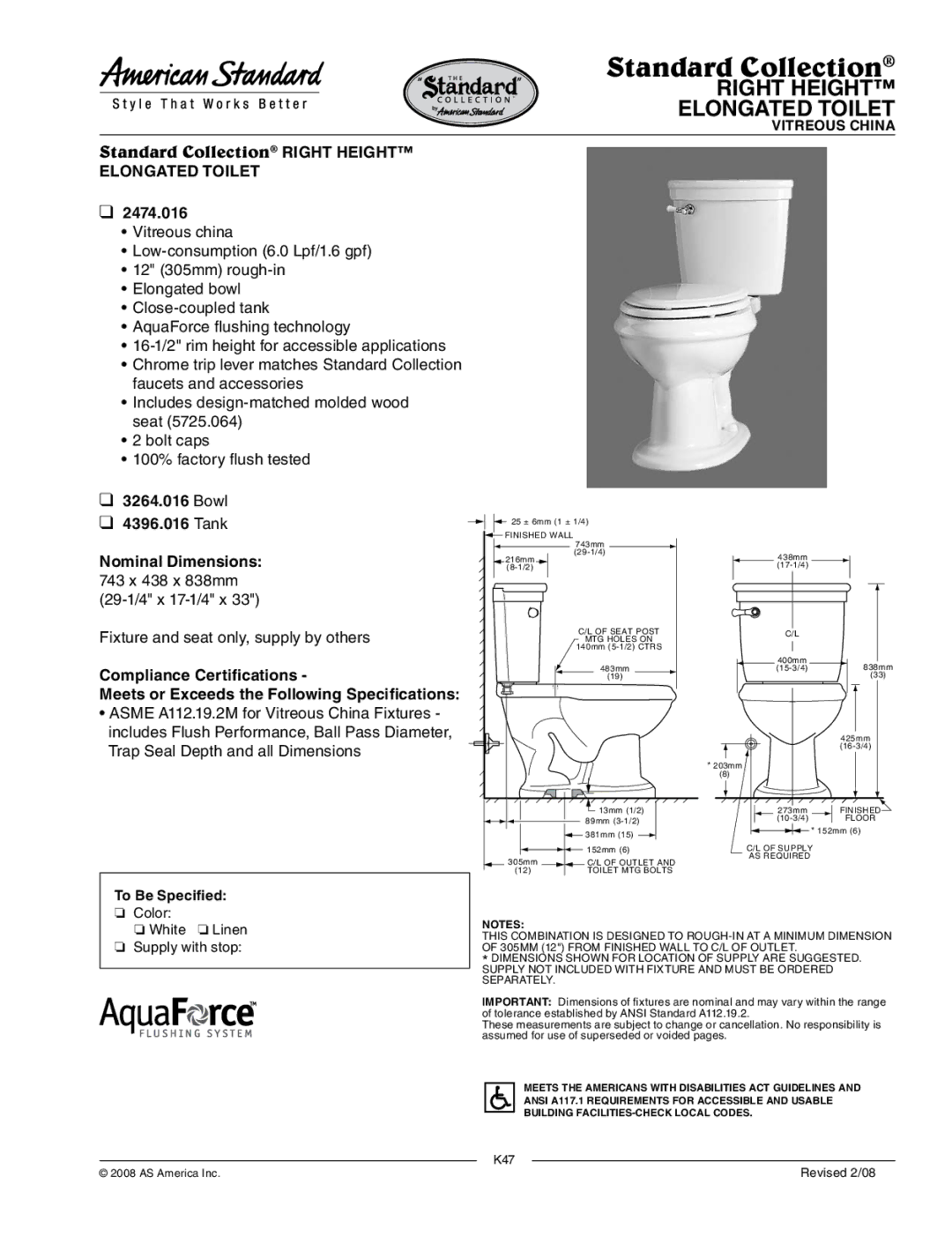

Standard Collection®

RIGHT HEIGHT™

ELONGATED TOILET

VITREOUS CHINA

Standard Collection® RIGHT HEIGHT™

ELONGATED TOILET

2474.016

Vitreous china

Low-consumption (6.0 Lpf/1.6 gpf)

12" (305mm) rough-in

Elongated bowl

Close-coupled tank

AquaForce flushing technology

16-1/2" rim height for accessible applications

Chrome trip lever matches Standard Collection faucets and accessories

Includes design-matched molded wood seat (5725.064)

2 bolt caps

100% factory flush tested

3264.016 Bowl

4396.016 Tank

25 ± 6mm (1 ± 1/4)













FINISHED WALL

743mm













Nominal Dimensions:

(8-1/2)

(29-1/4)

(17-1/4)









216mm



438mm



743 x 438 x 838mm









(29-1/4" x 17-1/4" x 33")









Fixture and seat only, supply by others



C/L OF SEAT POST

C/L





MTG HOLES ON















140mm (5-1/2) CTRS











400mm

838mm

Compliance Certifications -



483mm

(15-3/4)



(19)



(33)









Meets or Exceeds the Following Specifications:









• ASME A112.19.2M for Vitreous China Fixtures -









includes Flush Performance, Ball Pass Diameter,







425mm

Trap Seal Depth and all Dimensions







(16-3/4)





* 203mm

















(8)







13mm (1/2)

273mm

FINISHED





89mm (3-1/2)

(10-3/4)

FLOOR





381mm (15)



* 152mm (6)













152mm (6)

C/L OF SUPPLY



305mm

C/L OF OUTLET AND

AS REQUIRED











(12)

TOILET MTG BOLTS





To Be Specified:

Color:

White Linen

NOTES:

THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION

Supply with stop:

OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.





* DIMENSIONS SHOWN FOR LOCATION OF SUPPLY ARE SUGGESTED.





SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED





SEPARATELY.





IMPORTANT: Dimensions of fixtures are nominal and may vary within the range





of tolerance established by ANSI Standard A112.19.2.





These measurements are subject to change or cancellation. No responsibility is





assumed for use of superseded or voided pages.









MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND

















ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE









BUILDING FACILITIES-CHECK LOCAL CODES.















K47



© 2008 AS America Inc.

Revised 2/08







Page 1
