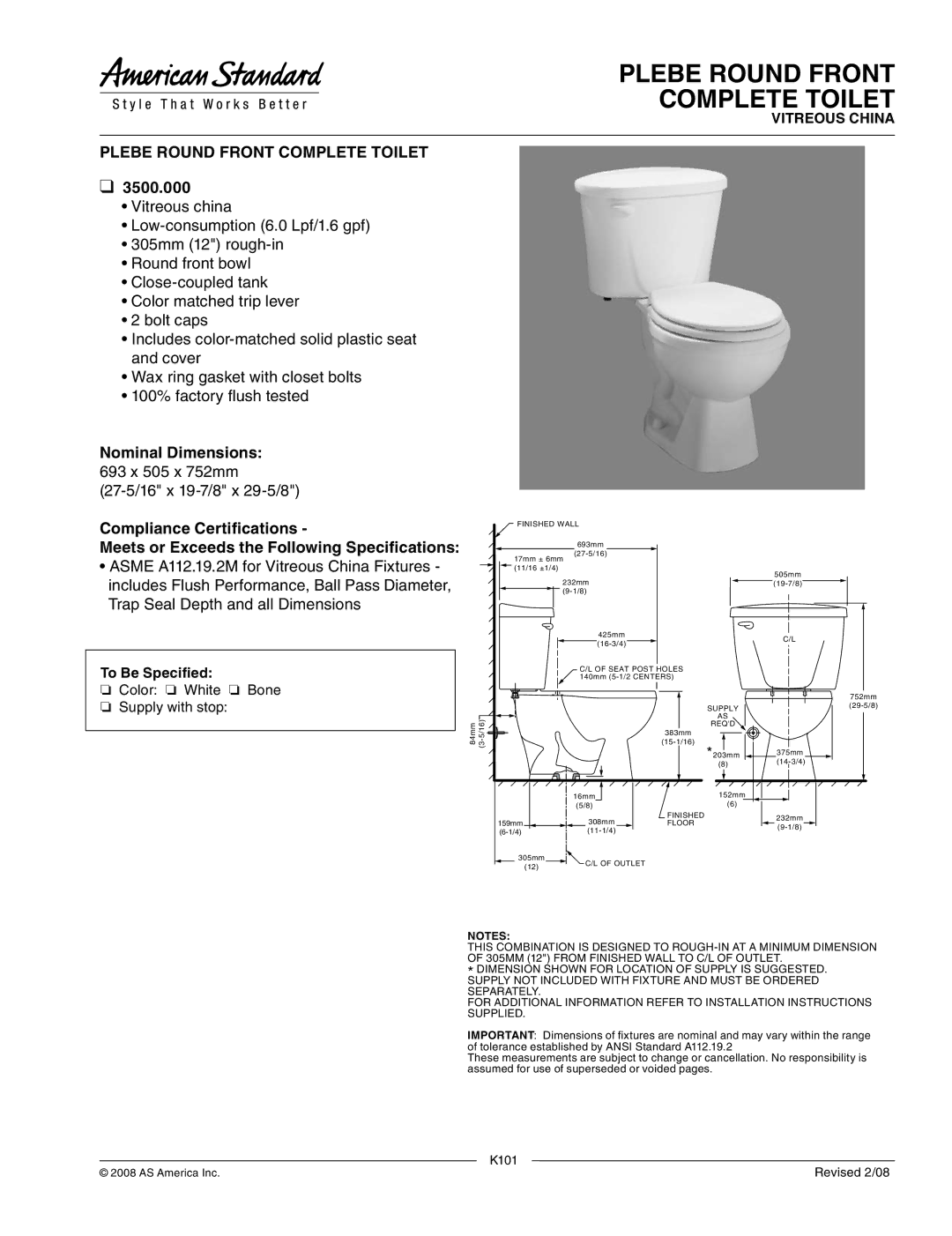

PLEBE ROUND FRONT COMPLETE TOILET

❑3500.000

•Vitreous china

•Low-consumption (6.0 Lpf/1.6 gpf)

•305mm (12") rough-in

•Round front bowl

•Close-coupled tank

•Color matched trip lever

•2 bolt caps

•Includes color-matched solid plastic seat and cover

•Wax ring gasket with closet bolts

•100% factory flush tested

Nominal Dimensions:

693 x 505 x 752mm

(27-5/16" x 19-7/8" x 29-5/8")

Compliance Certifications -

Meets or Exceeds the Following Specifications:

• ASME A112.19.2M for Vitreous China Fixtures - includes Flush Performance, Ball Pass Diameter, Trap Seal Depth and all Dimensions

To Be Specified:

❏Color: ❏ White ❏ Bone

❏Supply with stop:

84mm (3-5/16)

PLEBE ROUND FRONT

COMPLETE Toilet

VITREOUS CHINA

FINISHED WALL
		693mm
17mm ± 6mm		(27-5/16)
(11/16 ±1/4)					505mm
	232mm
					(19-7/8)
	(9-1/8)
		425mm			C/L
		(16-3/4)
		C/L OF SEAT POST HOLES
		140mm (5-1/2 CENTERS)
					752mm
				SUPPLY	(29-5/8)
				AS
				REQ'D
			383mm
			(15-1/16)	*203mm	375mm
				(8)	(14-3/4)
		16mm		152mm
		(5/8)		(6)
		308mm	FINISHED		232mm
159mm			FLOOR
					(9-1/8)
(6-1/4)		(11-1/4)
305mm

(12) C/L OF OUTLET

NOTES:

THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION

OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.

*DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED. SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.

FOR ADDITIONAL INFORMATION REFER TO INSTALLATION INSTRUCTIONS SUPPLIED.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

	K101
© 2008 AS America Inc.		Revised 2/08
