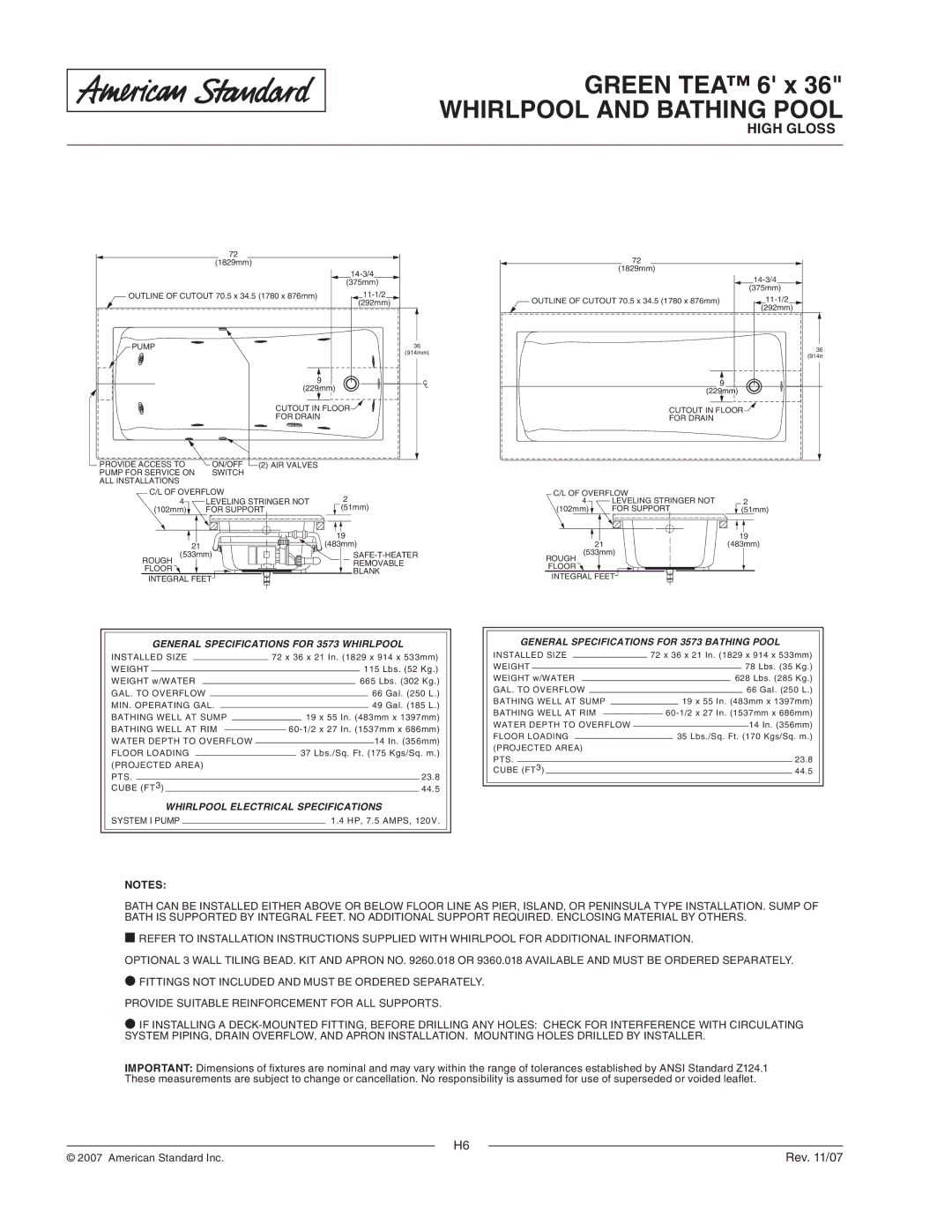

GREEN TEA™ 6' x 36"

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

72

(1829mm)





14-3/4







(375mm)



OUTLINE OF CUTOUT 70.5 x 34.5 (1780 x 876mm)

11-1/2







(292mm)



PUMP





36







(914mm)



9



C



(229mm)

L







CUTOUT IN FLOOR





FOR DRAIN





PROVIDE ACCESS TO

ON/OFF (2) AIR VALVES





PUMP FOR SERVICE ON

SWITCH





ALL INSTALLATIONS







C/L OF OVERFLOW

2



4

LEVELING STRINGER NOT



(102mm)

FOR SUPPORT

(51mm)







19



21



(483mm)



(533mm)

SAFE-T-HEATER

ROUGH



REMOVABLE



FLOOR



BLANK



INTEGRAL FEET







72

(1829mm)

14-3/4

(375mm)

OUTLINE OF CUTOUT 70.5 x 34.5 (1780 x 876mm)



11-1/2

(292mm)

36

(914m

9

(229mm)

CUTOUT IN FLOOR

FOR DRAIN

C/L OF OVERFLOW



4

LEVELING STRINGER NOT

2

(102mm)

FOR SUPPORT

(51mm)





19



21

(483mm)

(533mm)



ROUGH





FLOOR





INTEGRAL FEET



GENERAL SPECIFICATIONS FOR 3573 WHIRLPOOL

INSTALLED SIZE

















72 x 36 x 21 In. (1829 x 914 x 533mm)

















WEIGHT





























115 Lbs. (52 Kg.)





























WEIGHT w/WATER























665 Lbs. (302 Kg.)

GAL. TO OVERFLOW

























66 Gal. (250 L.)

MIN. OPERATING GAL.

















49 Gal. (185 L.)

















BATHING WELL AT SUMP









19 x 55 In. (483mm x 1397mm)

BATHING WELL AT RIM









60-1/2 x 27 In. (1537mm x 686mm)









WATER DEPTH TO OVERFLOW



















14 In. (356mm)



















FLOOR LOADING











37 Lbs./Sq. Ft. (175 Kgs/Sq. m.)











(PROJECTED AREA)























PTS.













23.8

CUBE (FT3)





44.5





WHIRLPOOL ELECTRICAL SPECIFICATIONS

SYSTEM I PUMP



1.4 HP, 7.5 AMPS, 120V.



GENERAL SPECIFICATIONS FOR 3573 BATHING POOL

INSTALLED SIZE















72 x 36 x 21 In. (1829 x 914 x 533mm)















WEIGHT





























78 Lbs. (35 Kg.)



























WEIGHT w/WATER



















628 Lbs. (285 Kg.)



















GAL. TO OVERFLOW





















66 Gal. (250 L.)

BATHING WELL AT SUMP









19 x 55 In. (483mm x 1397mm)

BATHING WELL AT RIM









60-1/2 x 27 In. (1537mm x 686mm)









WATER DEPTH TO OVERFLOW

















14 In. (356mm)

FLOOR LOADING









35 Lbs./Sq. Ft. (170 Kgs/Sq. m.)

(PROJECTED AREA)





















PTS.













23.8

CUBE (FT3)





44.5





NOTES:

BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION. SUMP OF BATH IS SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIAL BY OTHERS.

REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.

OPTIONAL 3 WALL TILING BEAD. KIT AND APRON NO. 9260.018 OR 9360.018 AVAILABLE AND MUST BE ORDERED SEPARATELY.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY. PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

IF INSTALLING A DECK-MOUNTED FITTING, BEFORE DRILLING ANY HOLES: CHECK FOR INTERFERENCE WITH CIRCULATING SYSTEM PIPING, DRAIN OVERFLOW, AND APRON INSTALLATION. MOUNTING HOLES DRILLED BY INSTALLER.

IMPORTANT: Dimensions of fi xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leafl et.



H6



© 2007 American Standard Inc.

Rev. 11/07



Page 2
Image 2

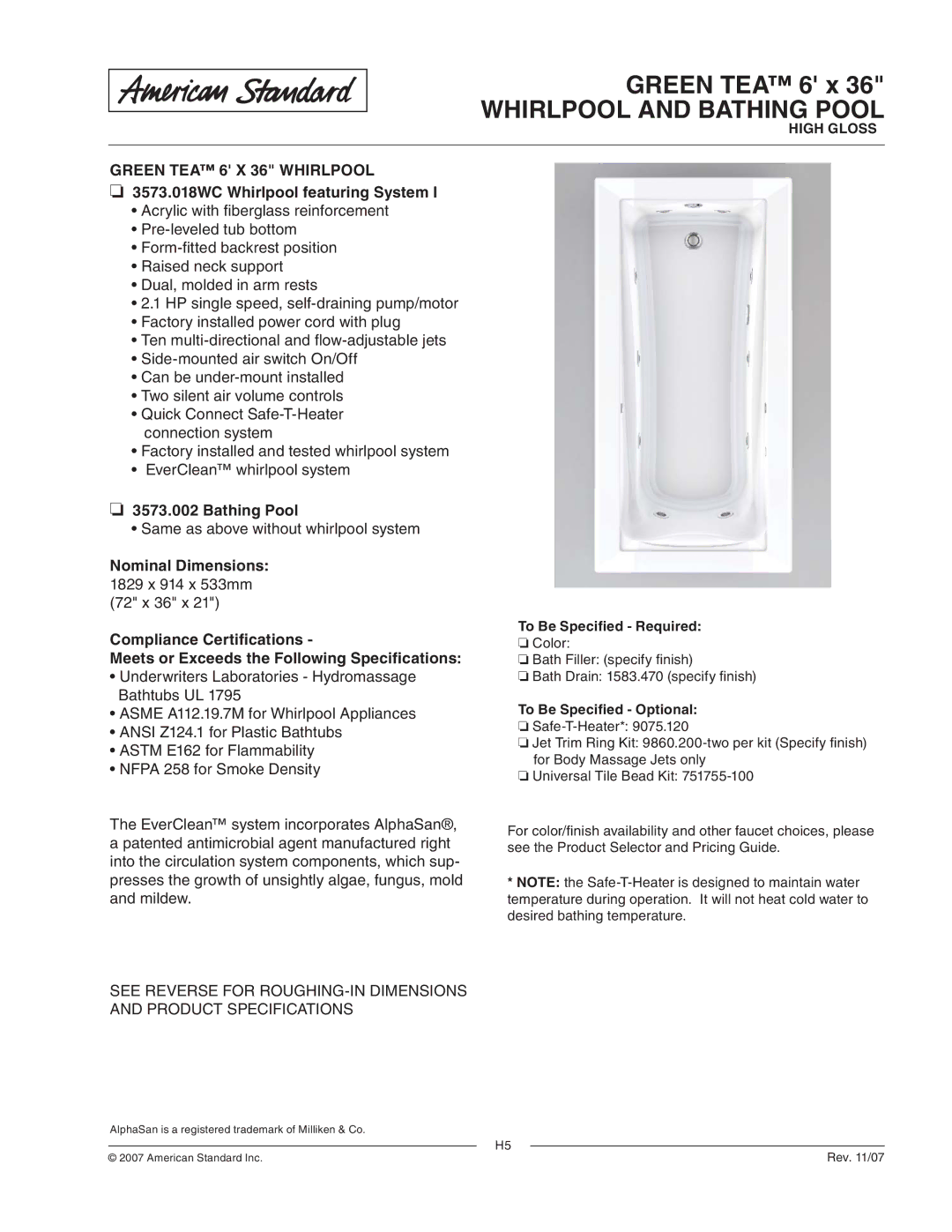

American Standard 3573.002, 3573.018WC General Specifications for 3573 Whirlpool, Whirlpool Electrical Specifications

3573.018WC, 3573.002 specifications
