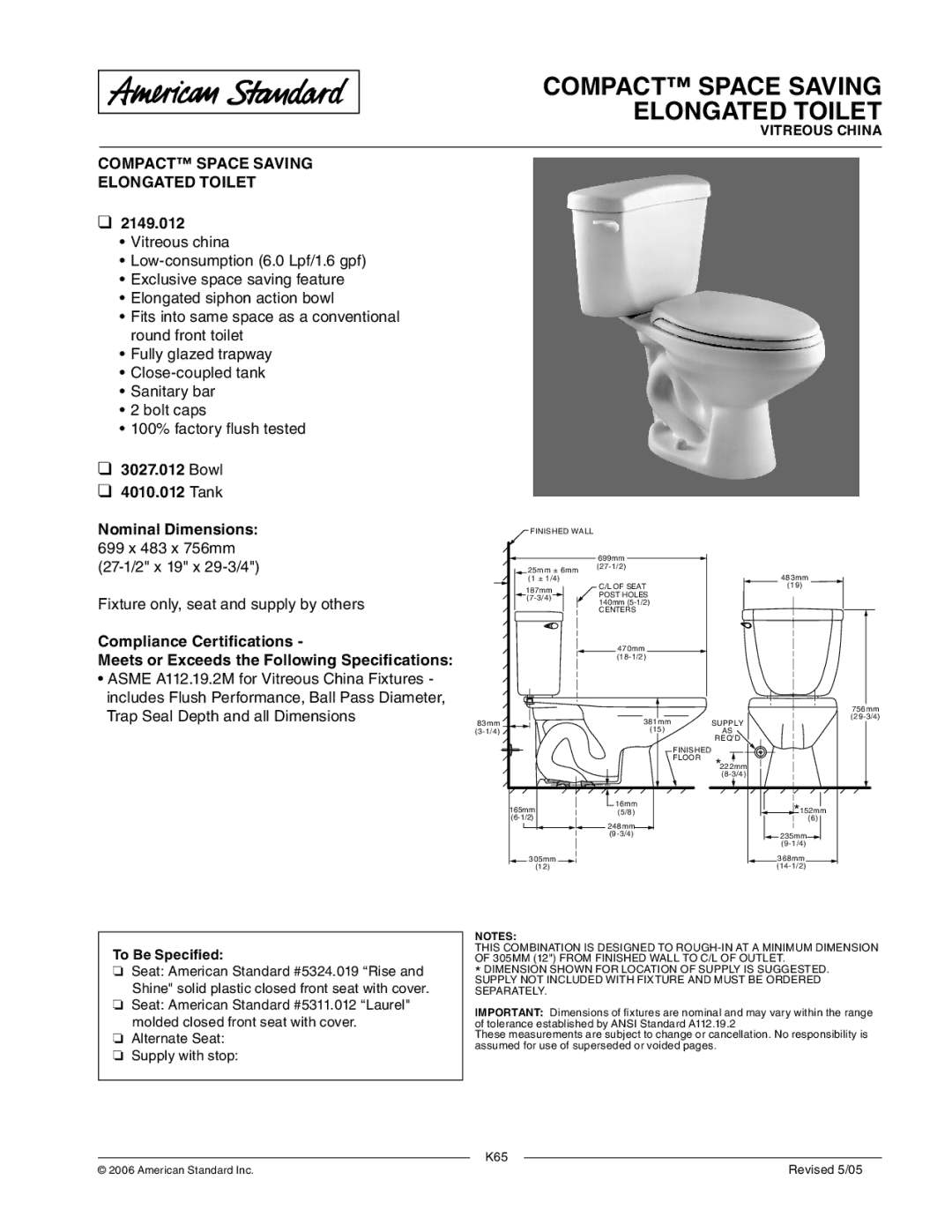

COMPACT™ SPACE SAVING ELONGATED TOILET

VITREOUS CHINA

COMPACT™ SPACE SAVING

ELONGATED TOILET

❑2149.012

•Vitreous china

•Low-consumption (6.0 Lpf/1.6 gpf)

•Exclusive space saving feature

•Elongated siphon action bowl

•Fits into same space as a conventional round front toilet

•Fully glazed trapway

•Close-coupled tank

•Sanitary bar

•2 bolt caps

•100% factory fl ush tested

❑3027.012 Bowl

❑4010.012 Tank

Nominal Dimensions: 699 x 483 x 756mm

(27-1/2" x 19" x 29-3/4")

Fixture only, seat and supply by others

Compliance Certifications -

Meets or Exceeds the Following Specifications:

FINISHED WALL
	699mm
25mm ± 6mm	(27-1/2)
		483mm
(1 ± 1/4)
187mm	C/L OF SEAT	(19)
	POST HOLES
(7-3/4)
	140mm (5-1/2)
	CENTERS
	470mm
	(18-1/2)

•ASME A112.19.2M for Vitreous China Fixtures - includes Flush Performance, Ball Pass Diameter, Trap Seal Depth and all Dimensions

83mm (3-1/4)

381mmSUPPLY

(15)AS

REQ'D

756mm (29-3/4)

		FINISHED
		FLOOR	*
			222mm
			(8-3/4)
165mm	16mm		152mm
	(5/8)
(6-1/2)	248mm		*	(6)
	(9-3/4)		235mm
			(9-1/4)
305mm			368mm
(12)			(14-1/2)

To Be Specified:

❏Seat: American Standard #5324.019 “Rise and Shine" solid plastic closed front seat with cover.

❏Seat: American Standard #5311.012 “Laurel" molded closed front seat with cover.

❏Alternate Seat:

❏Supply with stop:

NOTES:

THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.

*DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED. SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.

IMPORTANT: Dimensions of fi xtures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

	K65
© 2006 American Standard Inc.		Revised 5/05
