American Standard 4600. Series manual Connoisseur, Kitchen Combi Faucet, Model Numbers, Pkg Qty

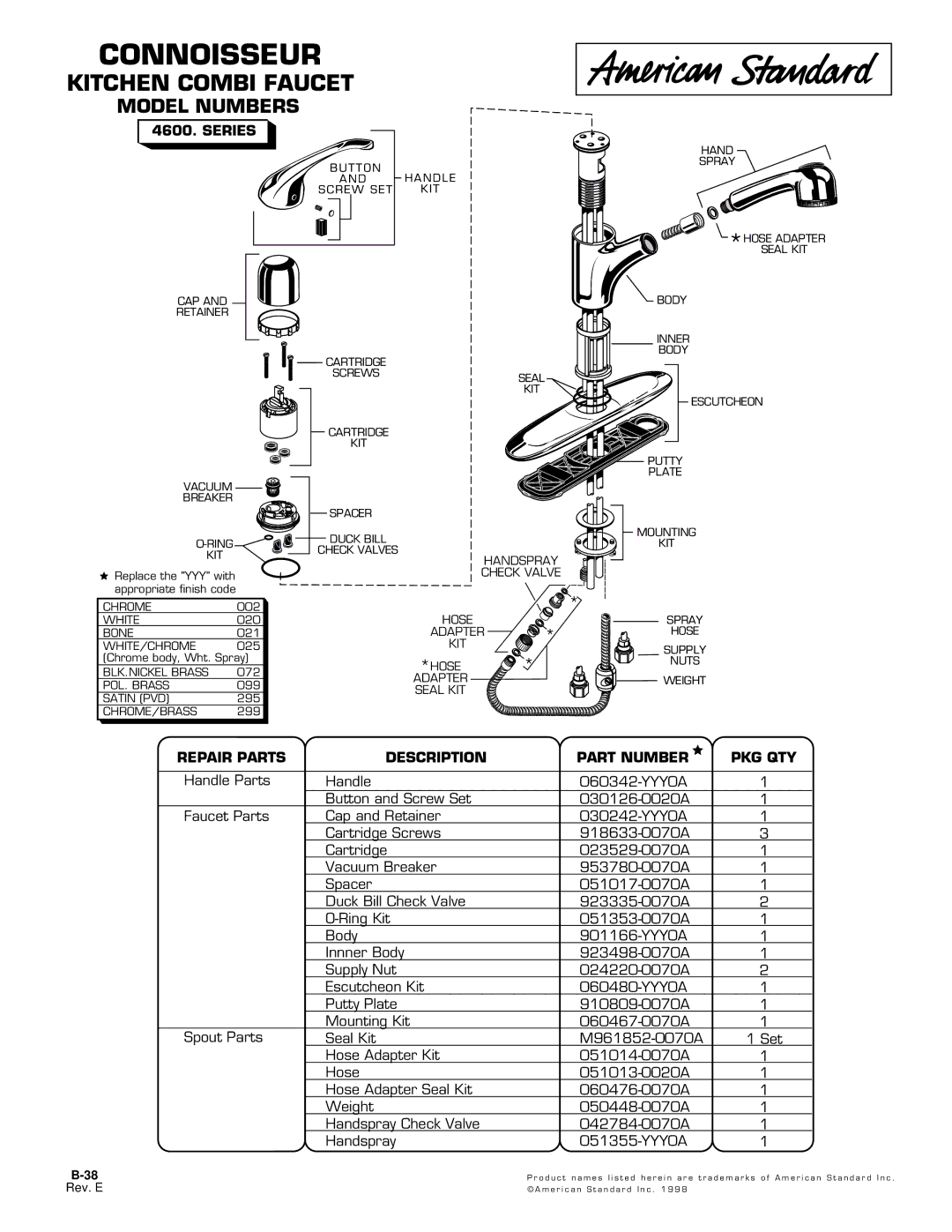

CONNOISSEUR

KITCHEN COMBI FAUCET

MODEL NUMBERS

4600. SERIES

	BUTTON	HANDLE
	AND
SCREW SET		KIT

CAP AND

RETAINER

HAND

SPRAY

*HOSE ADAPTER SEAL KIT

BODY

INNER

BODY

VACUUM

BREAKER

0-RING

KIT

Replace the "YYY" with appropriate finish code

CHROME002

WHITE020

BONE021

WHITE/CHROME 025 (Chrome body, Wht. Spray)

BLK.NICKEL BRASS	072
POL. BRASS	099
SATIN (PVD)	295
CHROME/BRASS	299

CARTRIDGE

SCREWSSEAL

KIT

CARTRIDGE

KIT

SPACER

DUCK BILL

CHECK VALVES

HANDSPRAY

CHECK VALVE

*

HOSE

ADAPTER *

KIT

*HOSE *

ADAPTER

SEAL KIT

ESCUTCHEON

PUTTY

PLATE

MOUNTING

KIT

SPRAY

HOSE

SUPPLY

NUTS

WEIGHT

REPAIR PARTS	DESCRIPTION	PART NUMBER	PKG QTY
Handle Parts	Handle	060342-YYY0A	1
	Button and Screw Set	030126-0020A	1
Faucet Parts	Cap and Retainer	030242-YYY0A	1
	Cartridge Screws	918633-0070A	3
	Cartridge	023529-0070A	1
	Vacuum Breaker	953780-0070A	1
	Spacer	051017-0070A	1
	Duck Bill Check Valve	923335-0070A	2
	O-Ring Kit	051353-0070A	1
	Body	901166-YYY0A	1
	Innner Body	923498-0070A	1
	Supply Nut	024220-0070A	2
	Escutcheon Kit	060480-YYY0A	1
	Putty Plate	910809-0070A	1
	Mounting Kit	060467-0070A	1
Spout Parts	Seal Kit	M961852-0070A	1 Set
	Hose Adapter Kit	051014-0070A	1
	Hose	051013-0020A	1
	Hose Adapter Seal Kit	060476-0070A	1
	Weight	050448-0070A	1
	Handspray Check Valve	042784-0070A	1
	Handspray	051355-YYY0A	1

B-38

Rev. E
