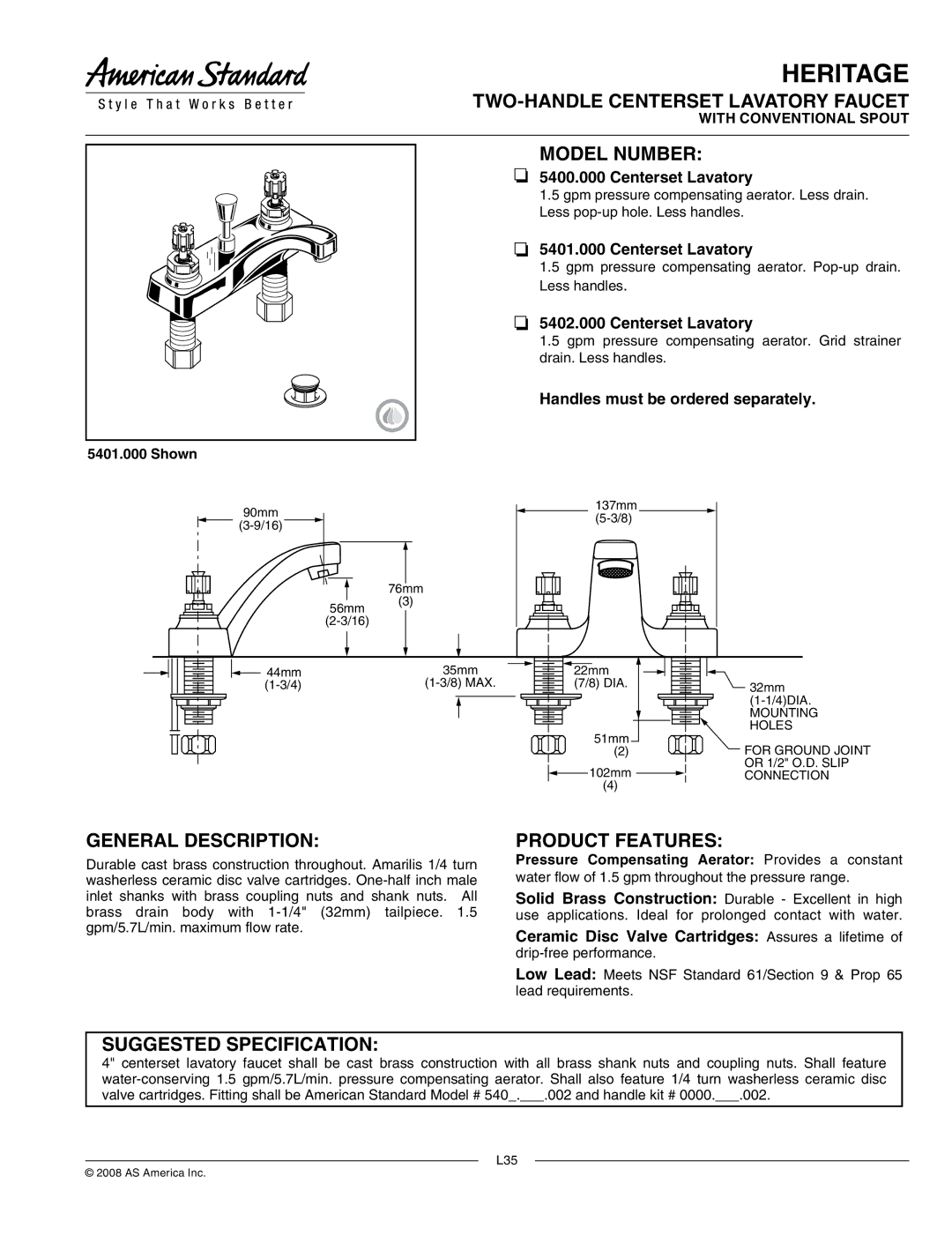

HERITAGE

TWO-HANDLE CENTERSET LAVATORY FAUCET

WITH CONVENTIONAL SPOUT

MODEL NUMBER:

5400.000 Centerset Lavatory

1.5 gpm pressure compensating aerator. Less drain. Less pop-up hole. Less handles.

5401.000 Centerset Lavatory

1.5 gpm pressure compensating aerator. Pop-up drain. Less handles.

5402.000 Centerset Lavatory

1.5 gpm pressure compensating aerator. Grid strainer drain. Less handles.

Handles must be ordered separately.

5401.000 Shown

90mm

(3-9/16)

76mm

137mm (5-3/8)

56mm

(3)

(2-3/16)

44mm

35mm

22mm



(1-3/4)

(1-3/8) MAX.

(7/8) DIA.

32mm







(1-1/4)DIA.







MOUNTING





51mm

HOLES





FOR GROUND JOINT





(2)





102mm

OR 1/2" O.D. SLIP





CONNECTION





(4)



GENERAL DESCRIPTION:

Durable cast brass construction throughout. Amarilis 1/4 turn washerless ceramic disc valve cartridges. One-half inch male inlet shanks with brass coupling nuts and shank nuts. All brass drain body with 1-1/4" (32mm) tailpiece. 1.5 gpm/5.7L/min. maximum flow rate.

PRODUCT FEATURES:

Pressure Compensating Aerator: Provides a constant

water flow of 1.5 gpm throughout the pressure range.

Solid Brass Construction: Durable - Excellent in high use applications. Ideal for prolonged contact with water.

Ceramic Disc Valve Cartridges: Assures a lifetime of drip-free performance.

Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead requirements.

SUGGESTED SPECIFICATION:

4" centerset lavatory faucet shall be cast brass construction with all brass shank nuts and coupling nuts. Shall feature water-conserving 1.5 gpm/5.7L/min. pressure compensating aerator. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 540_.___.002 and handle kit # 0000.___.002.

L35

© 2008 AS America Inc.

Page 1
