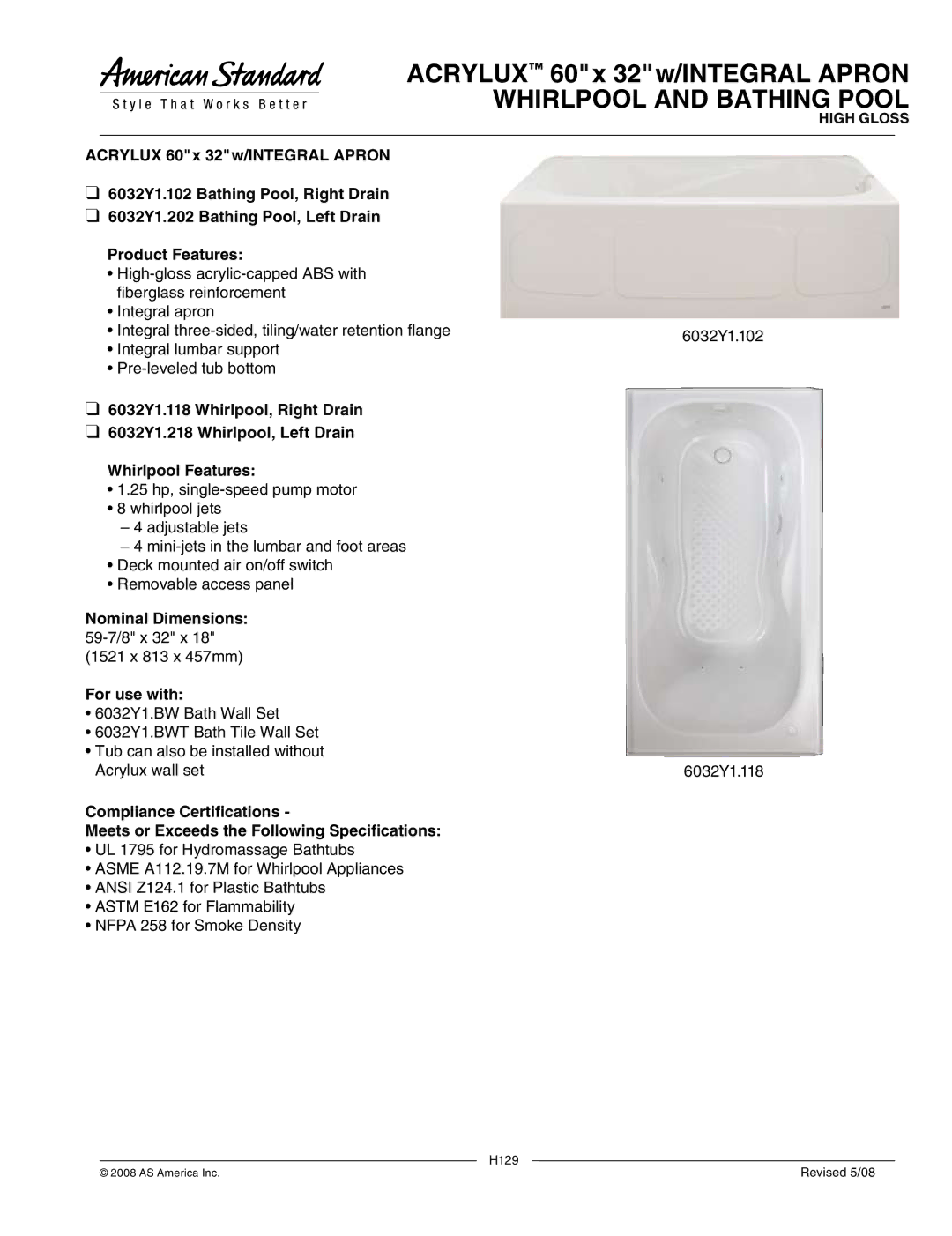

| American Standard 6032Y1.102, 6032Y1.202

ACRYLUX™ 60" x 32" w/INTEGRAL APRON

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

	ACRYLUX 60" x 32" w/INTEGRAL APRON
	❑ 6032Y1.102 Bathing Pool, Right Drain
	❑ 6032Y1.202 Bathing Pool, Left Drain
	Product Features:
	• High-gloss acrylic-capped ABS with
	fiberglass reinforcement
	• Integral apron
	• Integral three-sided, tiling/water retention flange	6032Y1.102
	• Integral lumbar support	6032Y1.102
	• Integral lumbar support
	• Pre-leveled tub bottom
	❑ 6032Y1.118 Whirlpool, Right Drain
	❑ 6032Y1.218 Whirlpool, Left Drain
	Whirlpool Features:
	• 1.25 hp, single-speed pump motor
	• 8 whirlpool jets
	– 4 adjustable jets
	– 4 mini-jets in the lumbar and foot areas
	• Deck mounted air on/off switch
	• Removable access panel

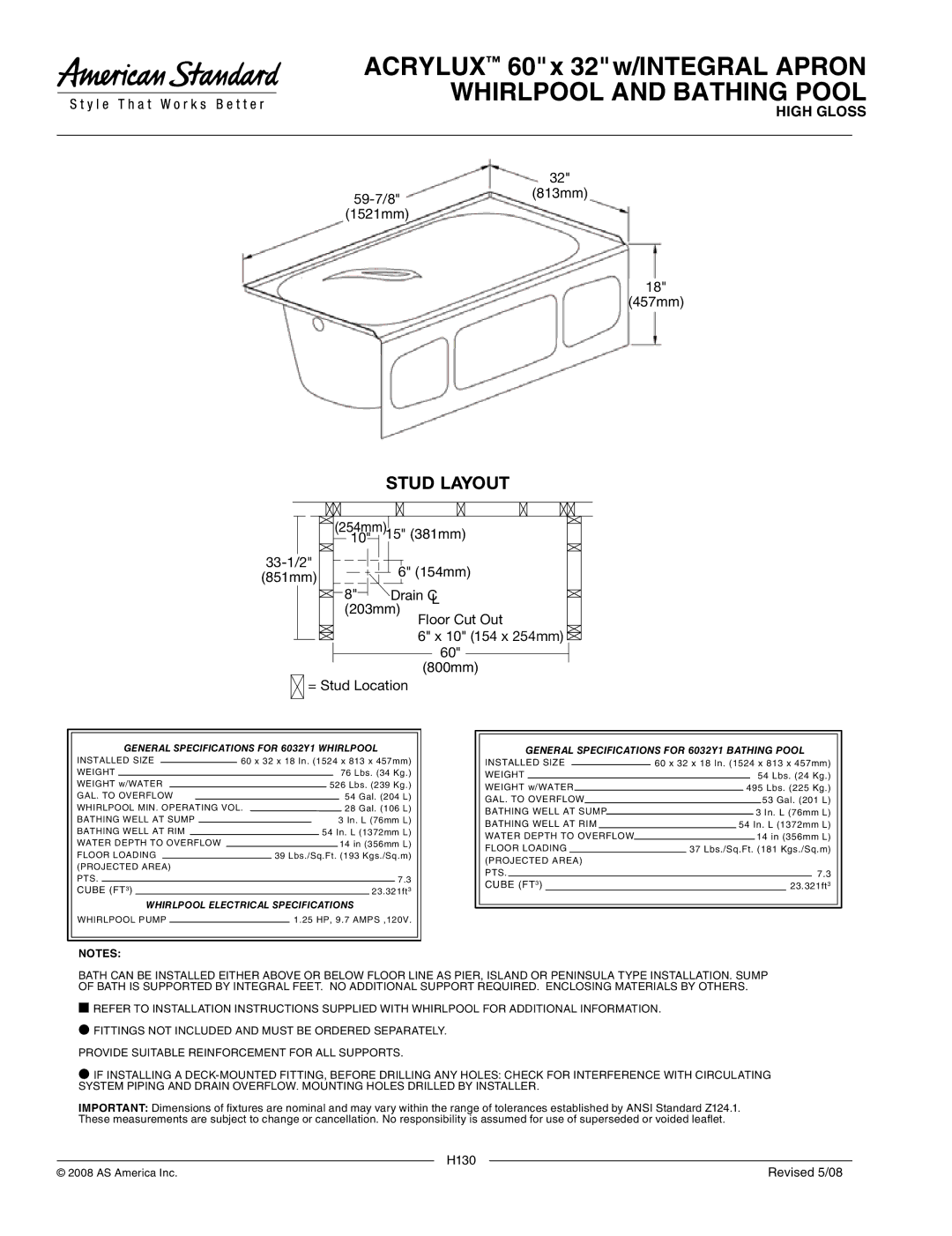

	Nominal Dimensions:
	59-7/8" x 32" x 18"
	(1521 x 813 x 457mm)

For use with:

•6032Y1.BW Bath Wall Set

•6032Y1.BWT Bath Tile Wall Set

•Tub can also be installed without

Acrylux wall set

6032Y1.118

Compliance Certifications -

Meets or Exceeds the Following Specifications:

•UL 1795 for Hydromassage Bathtubs

•ASME A112.19.7M for Whirlpool Appliances

•ANSI Z124.1 for Plastic Bathtubs

•ASTM E162 for Flammability

•NFPA 258 for Smoke Density
