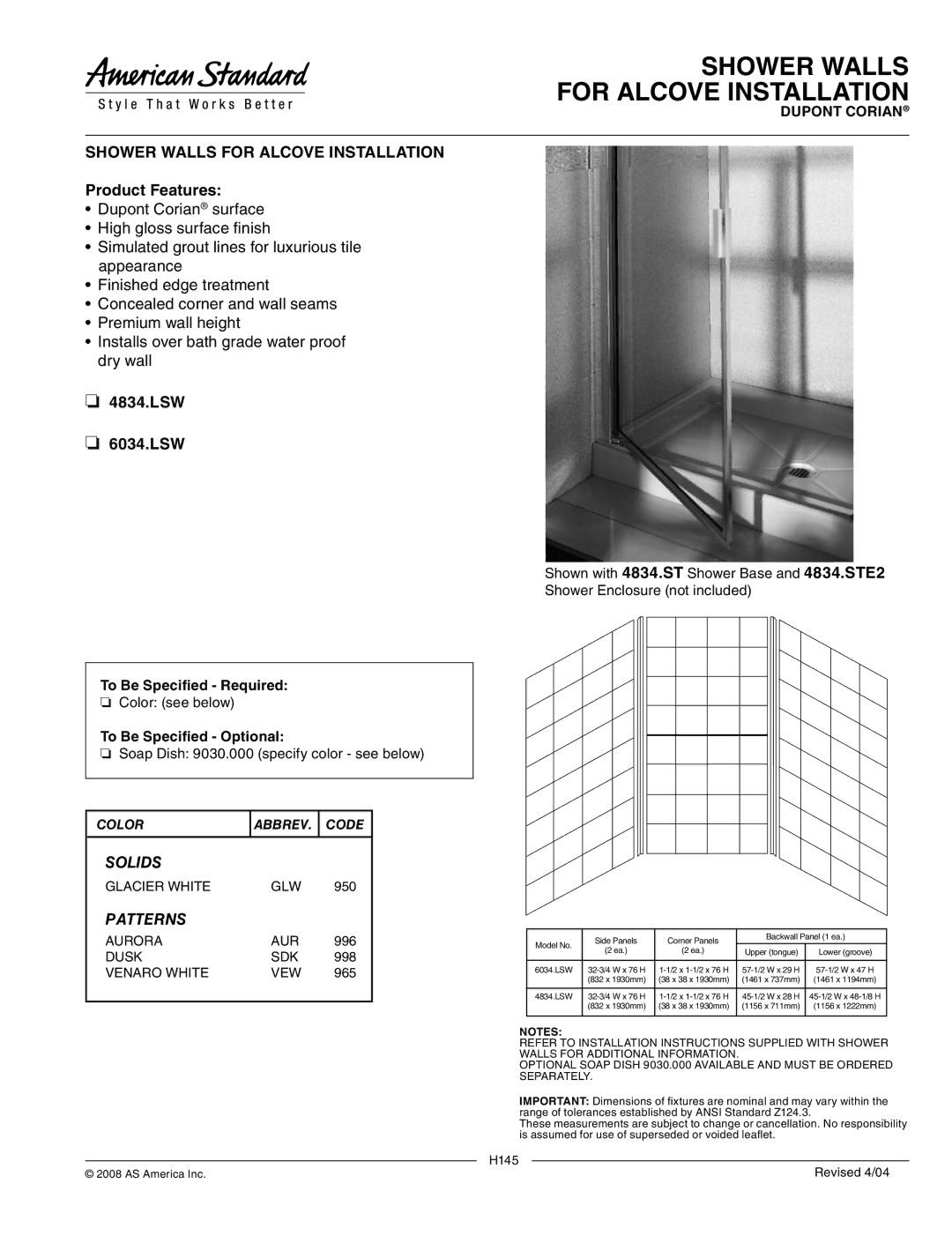

SHOWER WALLS FOR ALCOVE INSTALLATION
DUPONT CORIAN®
SHOWER WALLS FOR ALCOVE INSTALLATION
Product Features:
•Dupont Corian® surface
•High gloss surface finish
•Simulated grout lines for luxurious tile appearance
•Finished edge treatment
•Concealed corner and wall seams
•Premium wall height
•Installs over bath grade water proof dry wall
❏4834.LSW
❏6034.LSW
To Be Specified - Required:
❏Color: (see below)
To Be Specified - Optional:
❏Soap Dish: 9030.000 (specify color - see below)
| COLOR | ABBREV. | CODE |
|
|
|
|
SOLIDS
GLACIER WHITE GLW 950
PATTERNS
AURORA | AUR | 996 |
DUSK | SDK | 998 |
VENARO WHITE | VEW | 965 |
Shown with 4834.ST Shower Base and 4834.STE2 Shower Enclosure (not included)
Model No. | Side Panels | Corner Panels | Backwall Panel (1 ea.) | ||
|
| ||||
(2 ea.) | (2 ea.) | Upper (tongue) | Lower (groove) | ||
| |||||
|
|
|
|
| |
6034.LSW | |||||
| (832 x 1930mm) | (38 x 38 x 1930mm) | (1461 x 737mm) | (1461 x 1194mm) | |
|
|
|
|
| |
4834.LSW | |||||
| (832 x 1930mm) | (38 x 38 x 1930mm) | (1156 x 711mm) | (1156 x 1222mm) | |
|
|
|
|
| |
| NOTES: | ||
| REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH SHOWER | ||
| WALLS FOR ADDITIONAL INFORMATION. | ||
| OPTIONAL SOAP DISH 9030.000 AVAILABLE AND MUST BE ORDERED | ||
| SEPARATELY. | ||
| IMPORTANT: Dimensions of fixtures are nominal and may vary within the | ||
| range of tolerances established by ANSI Standard Z124.3. | ||
| These measurements are subject to change or cancellation. No responsibility | ||
| is assumed for use of superseded or voided leaflet. | ||
| H145 |
| |
© 2008 AS America Inc. | Revised 4/04 | ||
| |||
