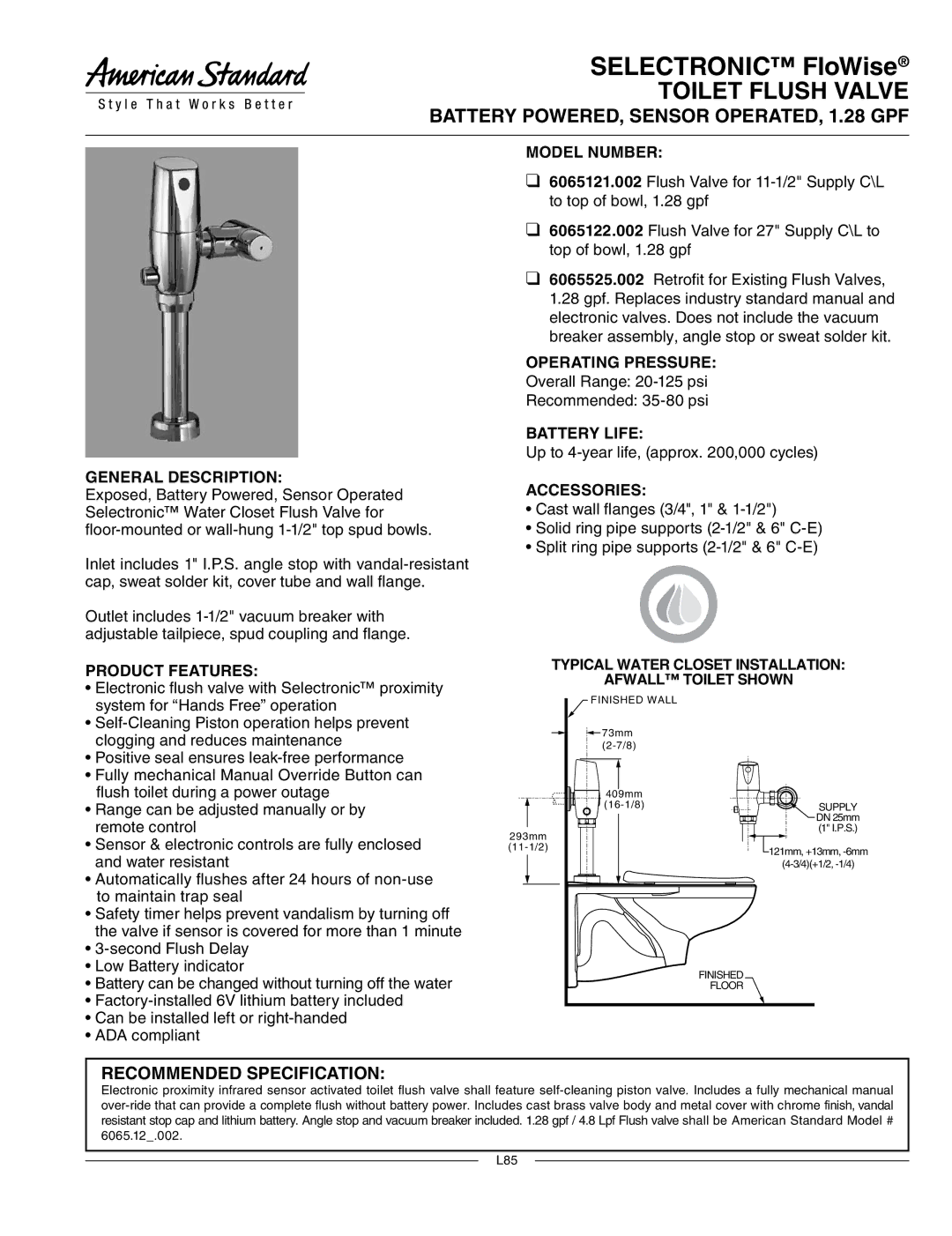

SELECTRONIC™ FloWise®

TOILET FLUSH VALVE

BATTERY POWERED, SENSOR OPERATED, 1.28 GPF

GENERAL DESCRIPTION:

Exposed, Battery Powered, Sensor Operated Selectronic™ Water Closet Flush Valve for floor-mounted or wall-hung 1-1/2" top spud bowls.

Inlet includes 1" I.P.S. angle stop with vandal-resistant cap, sweat solder kit, cover tube and wall flange.

Outlet includes 1-1/2" vacuum breaker with adjustable tailpiece, spud coupling and flange.

MODEL NUMBER:

❑6065121.002 Flush Valve for 11-1/2" Supply C\L to top of bowl, 1.28 gpf

❑6065122.002 Flush Valve for 27" Supply C\L to top of bowl, 1.28 gpf

❑6065525.002 Retrofit for Existing Flush Valves,

1.28 gpf. Replaces industry standard manual and electronic valves. Does not include the vacuum breaker assembly, angle stop or sweat solder kit.

OPERATING PRESSURE:

Overall Range: 20-125 psi

Recommended: 35-80 psi

BATTERY LIFE:

Up to 4-year life, (approx. 200,000 cycles)

ACCESSORIES:

•Cast wall flanges (3/4", 1" & 1-1/2")

•Solid ring pipe supports (2-1/2" & 6" C-E)

•Split ring pipe supports (2-1/2" & 6" C-E)

PRODUCT FEATURES:

•Electronic flush valve with Selectronic™ proximity system for “Hands Free” operation

•Self-Cleaning Piston operation helps prevent clogging and reduces maintenance

•Positive seal ensures leak-free performance

•Fully mechanical Manual Override Button can flush toilet during a power outage

•Range can be adjusted manually or by remote control

•Sensor & electronic controls are fully enclosed and water resistant

•Automatically flushes after 24 hours of non-use to maintain trap seal

•Safety timer helps prevent vandalism by turning off the valve if sensor is covered for more than 1 minute

•3-second Flush Delay

•Low Battery indicator

•Battery can be changed without turning off the water

•Factory-installed 6V lithium battery included

•Can be installed left or right-handed

•ADA compliant

5:1*$"-8"5&3$-04&5*/45"--"5*0/

"'8"--–50*-&54)08/

'*/*4)&%8"--



NN







NN





4611-:



%/NN

NN

*14





NN NNNN









'*/*4)&%



'-003

RECOMMENDED SPECIFICATION:

Electronic proximity infrared sensor activated toilet flush valve shall feature self-cleaning piston valve. Includes a fully mechanical manual over-ride that can provide a complete flush without battery power. Includes cast brass valve body and metal cover with chrome finish, vandal resistant stop cap and lithium battery. Angle stop and vacuum breaker included. 1.28 gpf / 4.8 Lpf Flush valve shall be American Standard Model # 6065.12_.002.

L85

Page 1 Page 2
Page 1
Image 1
American Standard 6065121.002, 6065525.002, 6065122.002 manual Toilet Flush Valve
Page 1 Page 2

6065122.002, 6065121.002, 6065525.002 specifications

The American Standard 6065525.002, 6065122.002, and 6065121.002 represent a series of innovative plumbing fixtures that combine functionality with modern design. Known for their quality and durability, these models are suitable for various residential and commercial applications, making them a popular choice among homeowners and contractors.

Starting with the American Standard 6065525.002, this product is a bathroom sink that seamlessly blends style and efficiency. Its versatile design features clean lines and an aesthetically pleasing profile, making it a perfect fit for any contemporary bathroom space. The sink is made from high-quality vitreous china, ensuring durability and ease of maintenance while contributing to a sleek look. One of the standout features of this sink is its spacious basin, which provides ample room for daily tasks. Additionally, it utilizes a standard-sized bowl that fits a wide range of faucet options, allowing for full customization to fit individual preferences.

Moving to the American Standard 6065122.002, a standout feature is its focus on water conservation. This toilet model incorporates EcoFlush technology, allowing it to use much less water per flush without sacrificing performance. It boasts a powerful flushing system that ensures effective cleaning with minimal effort. The toilet’s sleek design enhances any bathroom decor while providing comfort with its elongated seat. This combination of comfort and conservation makes it an environmentally responsible choice that doesn’t compromise on functionality.

The American Standard 6065121.002 is another exceptional toilet model that continues the legacy of quality found in the other products. This model emphasizes efficiency with its dual-flush option, allowing users to select between a full flush for solid waste and a lighter flush for liquid waste. This feature promotes water-saving habits and is particularly useful in households looking to reduce their environmental impact. Additionally, its powerful siphon jet mechanism ensures exceptional performance, minimizing clogs and maximizing cleaning efficiency.

Overall, the American Standard 6065525.002, 6065122.002, and 6065121.002 models are designed to provide exceptional performance while enhancing the aesthetic appeal of any bathroom. With advanced technologies aimed at conservation, comfort, and cleanliness, these fixtures exemplify the balance of style and practical solutions that American Standard is known for. Whether upgrading an entire bathroom suite or replacing individual fixtures, these models are an excellent choice for those seeking reliability and modern design.
