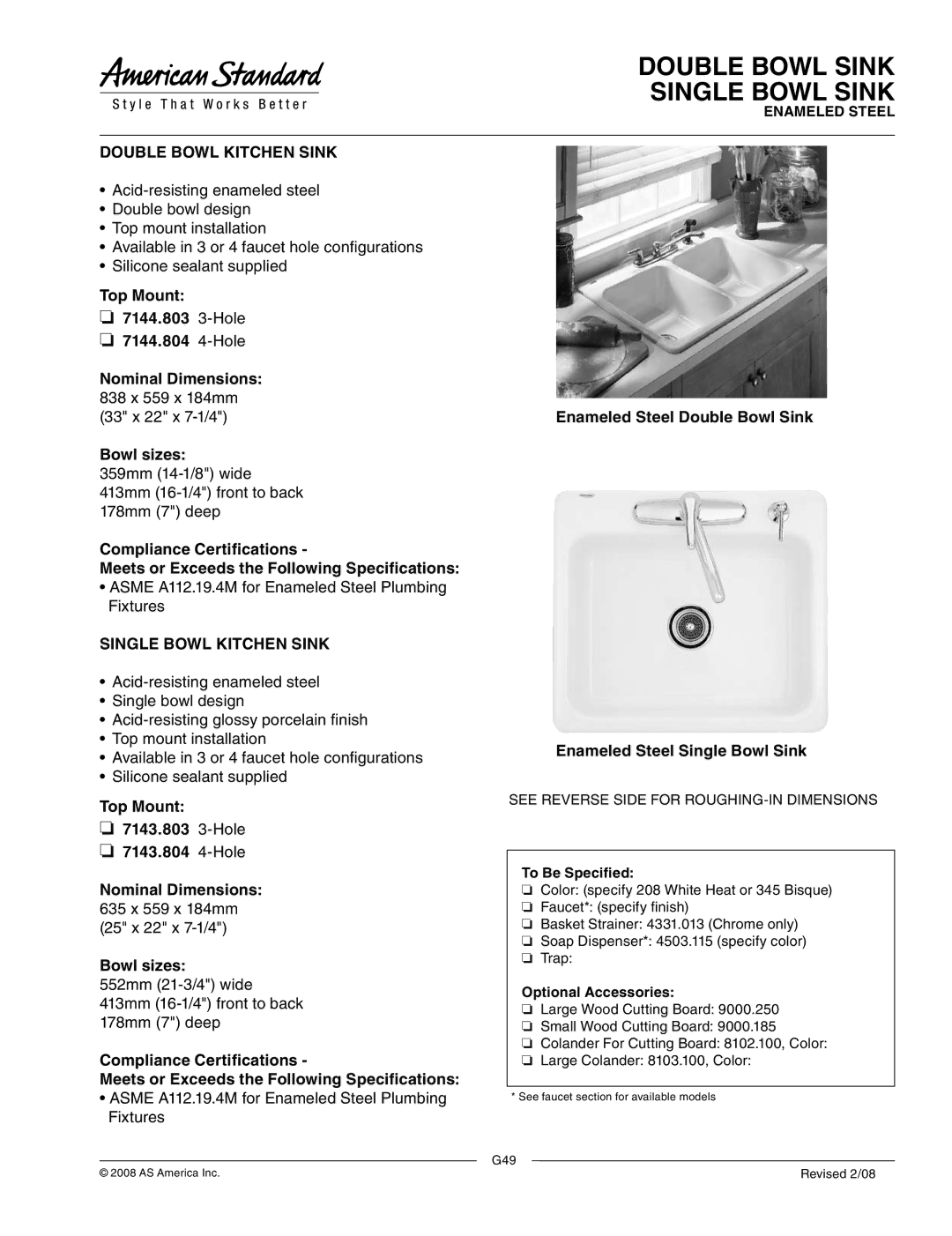

American Standard 7144.803, 7144.804 dimensions Double Bowl Sink Single Bowl Sink

DOUBLE BOWL SINK SINGLE BOWL SINK

ENAMELED STEEL

DOUBLE BOWL KITCHEN SINK

•Acid-resisting enameled steel

•Double bowl design

•Top mount installation

•Available in 3 or 4 faucet hole configurations

•Silicone sealant supplied

Top Mount:

❏7144.803 3-Hole

❏7144.804 4-Hole

Nominal Dimensions: 838 x 559 x 184mm (33" x 22" x 7-1/4")

Bowl sizes:

359mm (14-1/8") wide 413mm (16-1/4") front to back 178mm (7") deep

Compliance Certifications -

Meets or Exceeds the Following Specifications:

•ASME A112.19.4M for Enameled Steel Plumbing Fixtures

SINGLE BOWL KITCHEN SINK

•Acid-resisting enameled steel

•Single bowl design

•Acid-resisting glossy porcelain finish

•Top mount installation

•Available in 3 or 4 faucet hole configurations

•Silicone sealant supplied

Top Mount:

❏7143.803 3-Hole

❏7143.804 4-Hole

Nominal Dimensions:

635 x 559 x 184mm (25" x 22" x 7-1/4")

Bowl sizes:

552mm (21-3/4") wide 413mm (16-1/4") front to back 178mm (7") deep

Compliance Certifications -

Meets or Exceeds the Following Specifications:

•ASME A112.19.4M for Enameled Steel Plumbing Fixtures

© 2008 AS America Inc.

Enameled Steel Double Bowl Sink

Enameled Steel Single Bowl Sink

SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS

To Be Specified:

❏Color: (specify 208 White Heat or 345 Bisque)

❏Faucet*: (specify finish)

❏Basket Strainer: 4331.013 (Chrome only)

❏Soap Dispenser*: 4503.115 (specify color)

❏Trap:

Optional Accessories:

❏Large Wood Cutting Board: 9000.250

❏Small Wood Cutting Board: 9000.185

❏Colander For Cutting Board: 8102.100, Color:

❏Large Colander: 8103.100, Color:

* See faucet section for available models

G49

Revised 2/08
