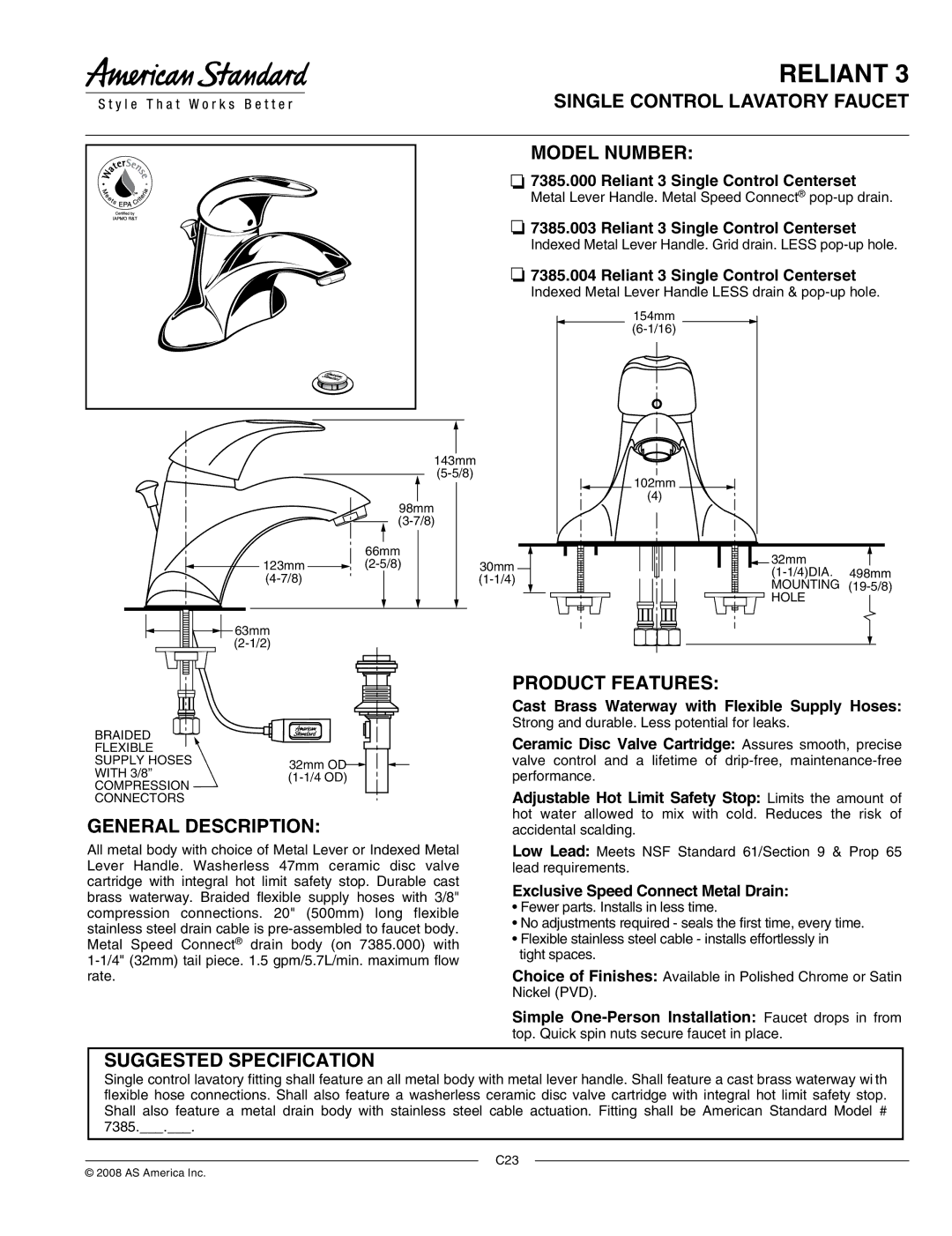

American Standard 7385.004, 7385.000 specifications Single Control Lavatory Faucet Model Number

RELIANT 3

SINGLE CONTROL LAVATORY FAUCET

MODEL NUMBER:

7385.000 Reliant 3 Single Control Centerset

Metal Lever Handle. Metal Speed Connect® pop-up drain.

7385.003 Reliant 3 Single Control Centerset

Indexed Metal Lever Handle. Grid drain. LESS pop-up hole.

7385.004 Reliant 3 Single Control Centerset

Indexed Metal Lever Handle LESS drain & pop-up hole.

	143mm
	(5-5/8)
	98mm
	(3-7/8)
	66mm
123mm	(2-5/8)	30mm
(4-7/8)		(1-1/4)

63mm

(2-1/2)

154mm (6-1/16)

102mm

(4)

32mm
(1-1/4)DIA.	498mm
MOUNTING	(19-5/8)
HOLE

BRAIDED
FLEXIBLE
SUPPLY HOSES	32mm OD
WITH 3/8”
	(1-1/4 OD)
COMPRESSION
CONNECTORS

GENERAL DESCRIPTION:

All metal body with choice of Metal Lever or Indexed Metal Lever Handle. Washerless 47mm ceramic disc valve cartridge with integral hot limit safety stop. Durable cast brass waterway. Braided flexible supply hoses with 3/8" compression connections. 20" (500mm) long flexible stainless steel drain cable is pre-assembled to faucet body. Metal Speed Connect® drain body (on 7385.000) with 1-1/4" (32mm) tail piece. 1.5 gpm/5.7L/min. maximum flow rate.

PRODUCT FEATURES:

Cast Brass Waterway with Flexible Supply Hoses:

Strong and durable. Less potential for leaks.

Ceramic Disc Valve Cartridge: Assures smooth, precise valve control and a lifetime of drip-free,maintenance-free performance.

Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.

Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead requirements.

Exclusive Speed Connect Metal Drain:

•Fewer parts. Installs in less time.

•No adjustments required - seals the first time, every time.

•Flexible stainless steel cable - installs effortlessly in tight spaces.

Choice of Finishes: Available in Polished Chrome or Satin Nickel (PVD).

Simple One-Person Installation: Faucet drops in from top. Quick spin nuts secure faucet in place.

SUGGESTED SPECIFICATION

Single control lavatory fitting shall feature an all metal body with metal lever handle. Shall feature a cast brass waterway wi th flexible hose connections. Shall also feature a washerless ceramic disc valve cartridge with integral hot limit safety stop. Shall also feature a metal drain body with stainless steel cable actuation. Fitting shall be American Standard Model # 7385.___.___.

C23

© 2008 AS America Inc.
